AMI-M12B Series

Catalog

LINE FILTER 250VAC 12A CHASSIS

Part	Mounting Type	Configuration	Voltage - Rated AC	Inductance	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Filter Type	Current
Altran Magnetics, LLC AMI-M12B-3-12-B	Chassis Mount	Two Stage	250 V	7.88 mH	IEC 320-C14 Quick Connect	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	12 A
Altran Magnetics, LLC AMI-M12B-3-10-B	Chassis Mount	Two Stage	250 V	14.26 mH	Quick Connect	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	10 A
Altran Magnetics, LLC AMI-M12B-3-7-B	Chassis Mount	Two Stage	250 V	14.6 mH	Wire Leads	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	7 A
Altran Magnetics, LLC AMI-M12B-6-20-B	Chassis Mount	Two Stage	250 V		Threaded Post (8-32)	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	20 A
Altran Magnetics, LLC AMI-M12B-3-3-B	Chassis Mount	Two Stage	250 V	14.12 mH	Wire Leads	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	3 A
Altran Magnetics, LLC AMI-M12B-6-20-C	Chassis Mount	Two Stage	250 V		Threaded Post (8-32)	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	20 A
Altran Magnetics, LLC AMI-M12B-3-6-B	Chassis Mount	Two Stage	250 V		Wire Leads	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	6 A
Altran Magnetics, LLC AMI-M12B-1-3-B	Chassis Mount	Two Stage	250 V	14.12 mH	Quick Connect	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	3 A
Altran Magnetics, LLC AMI-M12B-1-6-B	Chassis Mount	Two Stage	250 V		Quick Connect	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	6 A

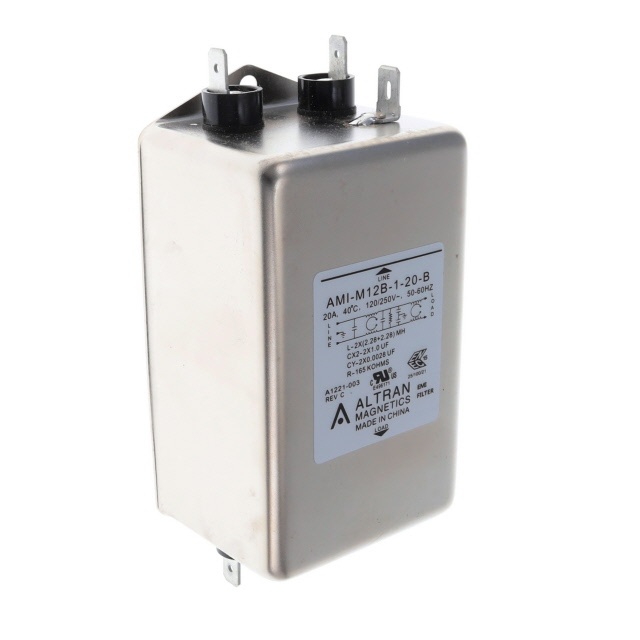

Altran Magnetics, LLC AMI-M12B-1-20-B	Chassis Mount	Two Stage	250 V		Quick Connect	40 °C	-10 °C	60 Hz	50 Hz	General Purpose	Single Phase	20 A
