5708 Series

Manufacturer: BRADY

Catalog

B689 5708-II BLK/YEL STYLE II

Part	Print Type	Shape	Legend (Text)	Color - Legend	Applications	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Min) [Min]	Arrangement	Legend (Symbol Only)	Width	Width	Color - Background	Location	Features	Material - Body	Length [x]	Length [x]	Mounting Type	Application Specifics	Language	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Length	Length	Outside Pipe Diameter (Min)	Width [x]	Width [x]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]
BRADY 5708-II	Pre-Printed	Rectangle	Hot Water Return	Black	Pipe	7.875 in	200.03 mm	Symbol and Text	Directional Arrow	304.8 mm	12 in	Yellow	Outdoor	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Plastic	660.4 mm	26 in	Snap On	Directionality	63000 A 69000 A	63.5 mm	2.5 in
BRADY 5708-O	Pre-Printed	Rectangle	Hot Water Return	Black	Pipe	1.375 in		Symbol and Text	Directional Arrow			Yellow	Outdoor	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Plastic			Snap On	Directionality	63000 A 69000 A			0.5 in	12.7 mm	8 in	203.2 mm	34.93 mm	127 mm	127 mm

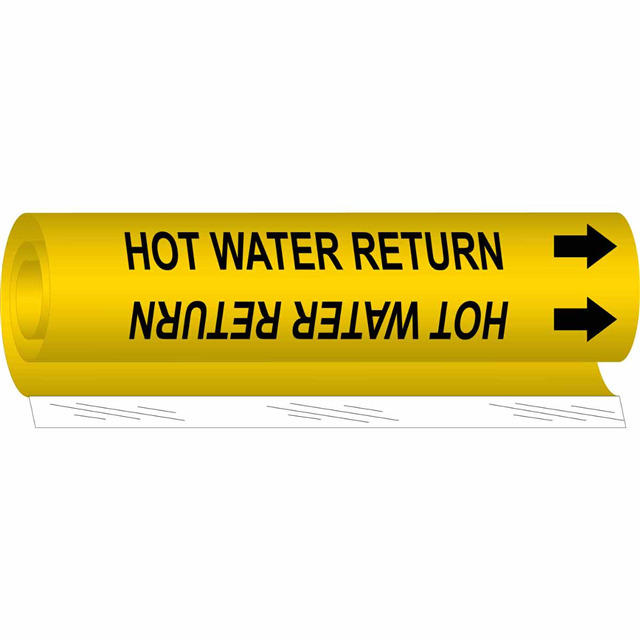

BRADY 5708-I	Pre-Printed	Rectangle	Hot Water Return	Black	Pipe	2.375 in		Symbol and Text	Directional Arrow	203.2 mm	8 in	Yellow	Outdoor	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Plastic			Snap On	Directionality	63000 A 69000 A					9 in	228.6 mm	60.33 mm			1.5 in	38.1 mm
