0703-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.022 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth [z]	Socket Depth	Contact Finish	Contact Material	Termination	Length - Overall	Length - Overall	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0703-0-15-01-12-27-04-0	-55 C	125 °C	0.071 in	1.8 mm	Gold	Beryllium Copper	Press-Fit	0.19 in	4.83 mm	30 Áin	0.76 Ám	1.45 mm	0.057 in	Standard Tail	0.03 in	0.76 mm	0.072 "	1.83 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0703-0-15-01-12-14-04-0	-55 C	125 °C	0.071 in	1.8 mm	Gold	Beryllium Copper	Press-Fit	0.19 in	4.83 mm	10 Áin	0.25 Ám	1.45 mm	0.057 in	Standard Tail	0.03 in	0.76 mm	0.072 "	1.83 mm	0.38 mm	0.022 in	0.015 "	0.56 mm

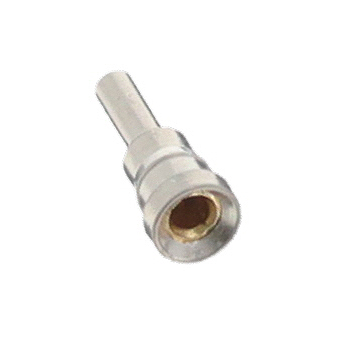

Mill-Max Manufacturing Corp. 0703-0-15-80-12-27-04-0	-55 C	125 °C	0.071 in	1.8 mm	Gold	Beryllium Copper	Press-Fit	0.19 in	4.83 mm	30 Áin	0.76 Ám	1.45 mm	0.057 in	Standard Tail	0.03 in	0.76 mm	0.072 "	1.83 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0703-0-15-01-12-02-04-0	-55 C	125 °C	0.071 in	1.8 mm	Tin-Lead	Beryllium Copper	Press-Fit	0.19 in	4.83 mm	100 µin	2.54 µm	1.45 mm	0.057 in	Standard Tail	0.03 in	0.76 mm	0.072 "	1.83 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0703-0-15-80-12-84-04-0	-55 C	125 °C	0.071 in	1.8 mm	Tin	Beryllium Copper	Press-Fit	0.19 in	4.83 mm	100 µin	2.54 µm	1.45 mm	0.057 in	Standard Tail	0.03 in	0.76 mm	0.072 "	1.83 mm	0.38 mm	0.022 in	0.015 "	0.56 mm

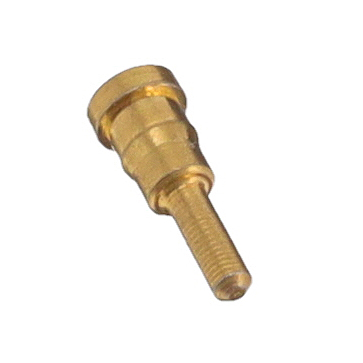

Mill-Max Manufacturing Corp. 0703-0-15-15-12-27-04-0	-55 C	125 °C	0.071 in	1.8 mm	Gold	Beryllium Copper	Press-Fit	0.19 in	4.83 mm	30 Áin	0.76 Ám	1.45 mm	0.057 in	Standard Tail	0.03 in	0.76 mm	0.072 "	1.83 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0703-0-15-15-12-14-04-0	-55 C	125 °C	0.071 in	1.8 mm	Gold	Beryllium Copper	Press-Fit	0.19 in	4.83 mm	10 Áin	0.25 Ám	1.45 mm	0.057 in	Standard Tail	0.03 in	0.76 mm	0.072 "	1.83 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
