DLW21SZ Series

Catalog

COMMON MODE CHOKE, 120 OHM, 0.28A, SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Impedance @ Frequency	Height (Max) [z]	Height (Max) [z]	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage Rating - DC	DC Resistance (DCR) (Max) [Max]	Ratings	Filter Type	Current Rating (Max) [Max]
Murata Electronics DLW21SZ121HQ2L	-40 C	105 ░C	Horizontal 4 PC Pad	120 Ohms	1.4 mm	0.055 in	2	0.079 in	0.047 in	1.2 mm	2 mm	Surface Mount	20 V	410 mOhm	AEC-Q200	Signal Line	280 mA

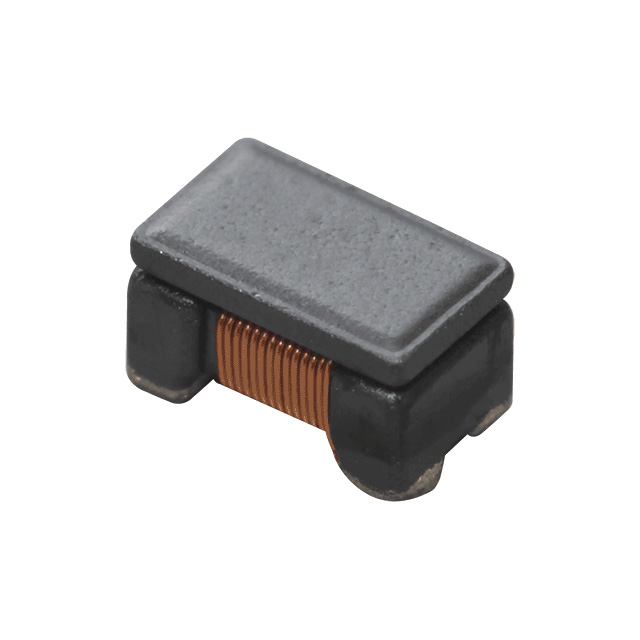

Murata Electronics DLW21SZ181XQ2L	-40 C	105 ░C	Horizontal 4 PC Pad	180 Ohms	1.4 mm	0.055 in	2	0.079 in	0.047 in	1.2 mm	2 mm	Surface Mount	20 V	390 mOhm	AEC-Q200	Signal Line	240 mA
