V7-6C1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

MICROSWITCH, MINIATURE, SHORT LEVER, SPDT, QUICK CONNECT, SOLDER, 15 A, 250 VDC

Part	Current Rating (Amps)	Overtravel [custom]	Overtravel [custom]	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Electrical Life	Mounting Type	Circuit	Switch Function	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Pretravel	Pretravel	Mechanical Life	Termination Style	Differential Travel	Differential Travel	Release Force	Pretravel	Operating Force [Max]	Operating Force [Min]
Honeywell Sensing and Productivity Solutions V7-6C18D8-002	15 A 500 mA	0.035 "	0.9 mm	125 VDC	Lever Straight	125 V	100000 Cycles	Chassis Mount	SPDT	On-Mom	413 gf	85 °C	-40 C	15.3 mm	0.602 in	0.063 in	1.6 mm	10000000 Cycles	Quick Connect
Honeywell Sensing and Productivity Solutions V7-6C17D8-162	15 A 500 mA	0.141 "	3.6 mm	125 VDC	Lever Straight	125 V	100000 Cycles	Chassis Mount	SPDT	On-Mom	85 gf	85 °C	-40 C	15.2 mm	0.6 in	0.45 in	11.4 mm	10000000 Cycles	Quick Connect	4 mm	0.156 in

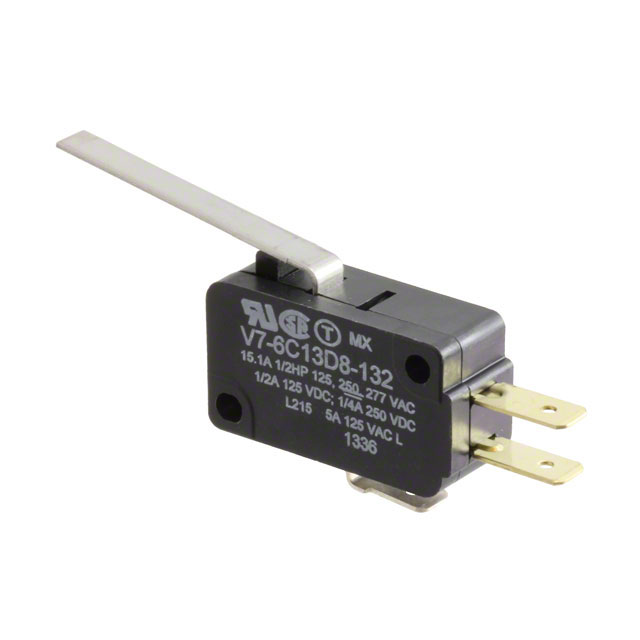

Honeywell Sensing and Productivity Solutions V7-6C13D8-132	15 A 500 mA	0.094 "	2.4 mm	125 VDC	Lever Straight	125 V	100000 Cycles	Chassis Mount	SPDT	On-Mom	93 gf	150 °C	-40 C	15.3 mm	0.602 in		0.29 "	10000000 Cycles	Quick Connect	2.6 mm	0.103 in	16 gf	7.4 mm

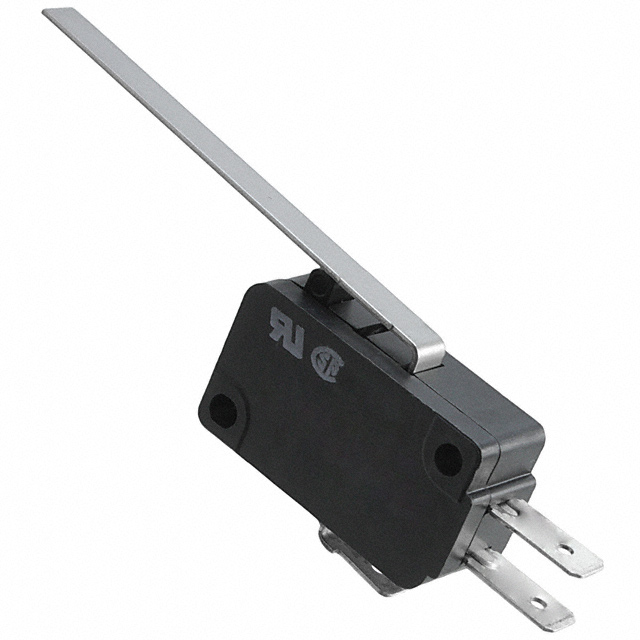

Honeywell Sensing and Productivity Solutions V7-6C17D8-048-1	15 A 500 mA	0.125 in	3.2 mm	125 VDC	Lever Straight	125 V	100000 Cycles	Chassis Mount	SPDT	On-Mom	120 gf	85 °C	-40 C	14.7 mm	0.579 in	0.25 in	6.35 mm	10000000 Cycles	Quick Connect	1.4 mm	0.055 in	19 gf

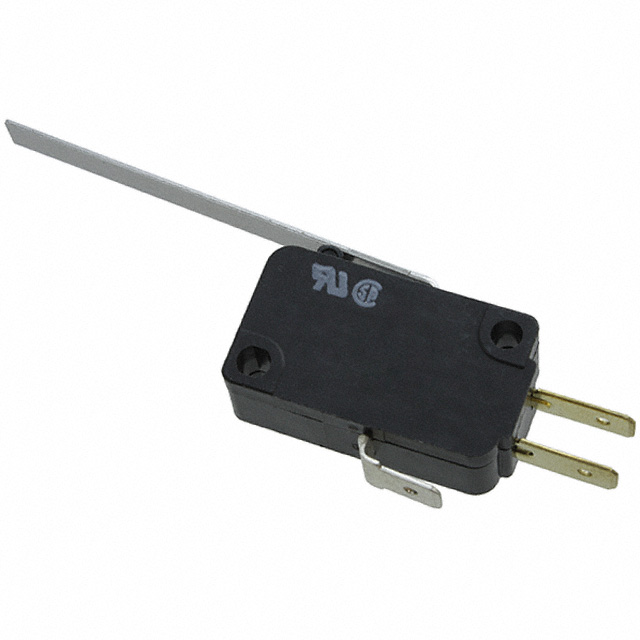

Honeywell Sensing and Productivity Solutions V7-6C18D8-048	15 A 500 mA	0.09 "	2.3 mm	125 VDC	Lever Straight	125 V	100000 Cycles	Chassis Mount	SPDT	On-Mom	141 gf	85 °C	-40 C	14.7 mm	0.579 in	0.25 in	6.35 mm	10000000 Cycles	Quick Connect	2.2 mm	0.086 in

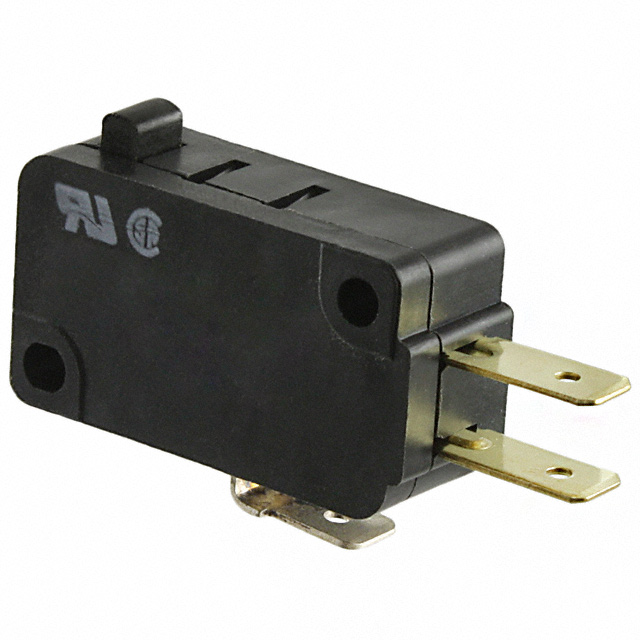

Honeywell Sensing and Productivity Solutions V7-6C17D8-000-2	15 A 500 mA	0.04 "	1 mm	125 VDC	Round (Pin Plunger)	125 V	100000 Cycles	Chassis Mount	SPDT	On-Mom		85 °C	-40 C	14.7 mm	0.579 in	0.047 in	1.2 mm	10000000 Cycles	Quick Connect	0.4 mm	0.016 in	113 gf		397 gf	170 gf
