3RT1056 Series

Manufacturer: Siemens

Catalog

CONTACTOR S6 185A 380-420VUC 3P

Part	Operate Time	Release Time	Coil Power	Switching Voltage [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Voltage [Min]	Coil Voltage [Max]	Termination Style	Features	Contact Rating (Current)	Must Operate Voltage	Coil Voltage
Siemens 3RT10566AV36	95 ms	60 ms	360 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	380 VAC/DC	420 VAC/DC	Screw Terminal	Auxiliary Contacts	185 A
Siemens 3RT10566AB363PA0	95 ms	60 ms	360 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	23 VAC/DC	26 VAC/DC	Screw Terminal	Auxiliary Contacts	185 A
Siemens 3RT10566SP363PA0	75 ms	130 ms	320 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	200 VAC/DC	277 VAC	Screw Terminal	Auxiliary Contacts	185 A

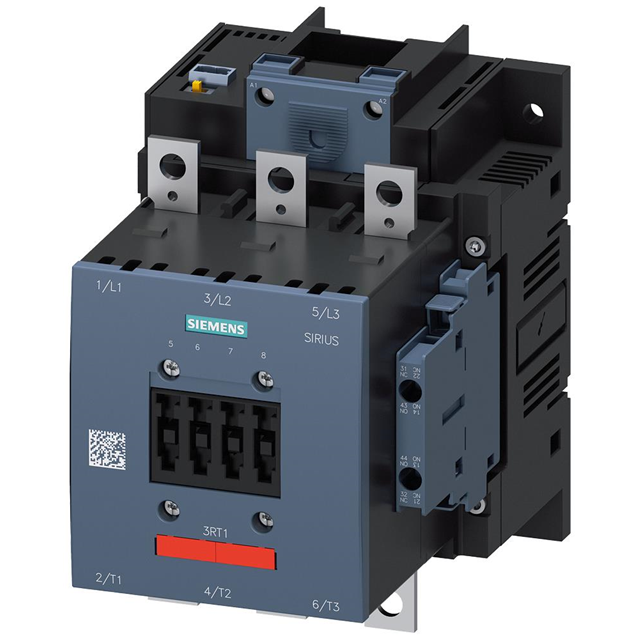

Siemens 3RT10566NB363PA0	75 ms	90 ms	320 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	21 VAC/DC	27.3 VAC/DC	Screw Terminal	Auxiliary Contacts	185 A
Siemens 3RT10561AB36	95 ms	60 ms	360 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	23 VAC/DC	26 VAC/DC	Screw Terminal	Auxiliary Contacts	185 A
Siemens 3RT10562XB460LA2	75 ms	90 ms	320 W	1000 VAC	Chassis Mount DIN Rail	-40 C	70 °C	3PST-NO (3 Form A)			Screw Terminal	Auxiliary Contacts	185 A	16.8 VDC	24 VDC
Siemens 3RT10562AB36	95 ms	60 ms	360 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	23 VAC/DC	26 VAC/DC	Screw Terminal	Auxiliary Contacts	185 A
Siemens 3RT10566AT36	95 ms	60 ms	360 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	575 VAC	600 VAC	Screw Terminal	Auxiliary Contacts	185 A
Siemens 3RT10566NB36	75 ms	90 ms	320 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	21 VAC/DC	27.3 VAC/DC	Screw Terminal	Auxiliary Contacts	185 A
Siemens 3RT10566AS36	95 ms	60 ms	360 W	1000 VAC	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)	500 VAC	550 VAC/DC	Screw Terminal	Auxiliary Contacts	185 A
