M80-869 Series

Catalog

HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Mounting Type	Termination	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Rows [custom]	Insulation Material	Style	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Shape	Contact Material	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Type	Connector Type	Fastening Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Voltage Rating	Number of Positions [custom]

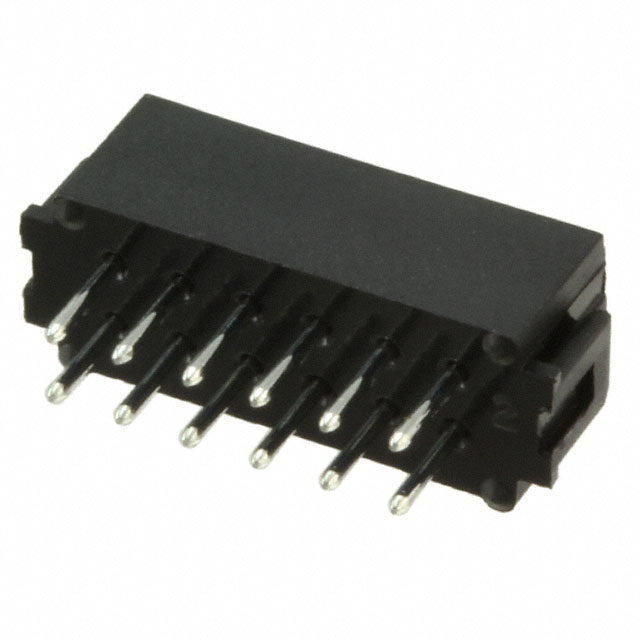

Harwin Inc. M80-8691222	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Through Hole	Solder	2 mm	0.079 in	Shrouded - 4 Wall	2	Polyester Glass Filled	Board to Board Cable	29.5 µin	0.75 µm	All	-55 C	125 °C	0.219 in	5.56 mm	Circular	Phosphor Bronze	12	0.118 in	3 mm	Male Pin	Plug	Latch Holder	0.079 "	2 mm	UL94 V-0	Gold	2.2 A	Tin-Lead	Black	800 V

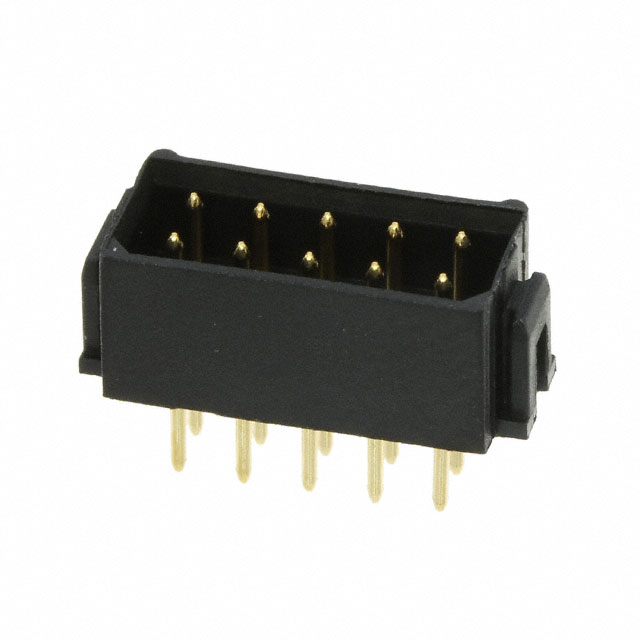

Harwin Inc. M80-8691005			7.23 mm 7.85 mm 10.2 mm 13.51 mm	Through Hole	Solder	2 mm	0.079 in	Shrouded - 4 Wall	2	Polyester Glass Filled	Board to Board Cable	29.5 µin	0.75 µm	All	-55 C	125 °C	0.219 in	5.56 mm	Circular	Phosphor Bronze	10	0.118 in	3 mm	Male Pin	Plug	Latch Holder	0.079 "	2 mm	UL94 V-0	Gold	2.2 A		Black	800 V

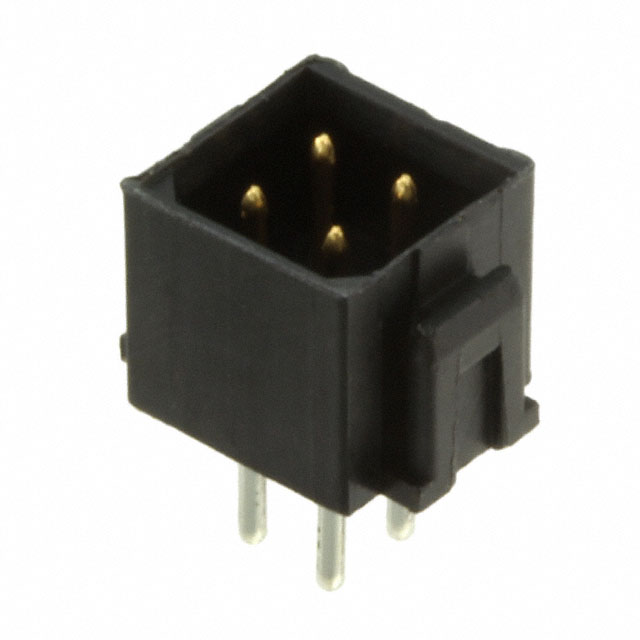

Harwin Inc. M80-8690422	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Through Hole	Solder	2 mm	0.079 in	Shrouded - 4 Wall	2	Polyester Glass Filled	Board to Board Cable	29.5 µin	0.75 µm	All	-55 C	125 °C	0.219 in	5.56 mm	Circular	Phosphor Bronze	4	0.118 in	3 mm	Male Pin	Plug	Latch Holder	0.079 "	2 mm	UL94 V-0	Gold	2.2 A	Tin-Lead	Black	800 V

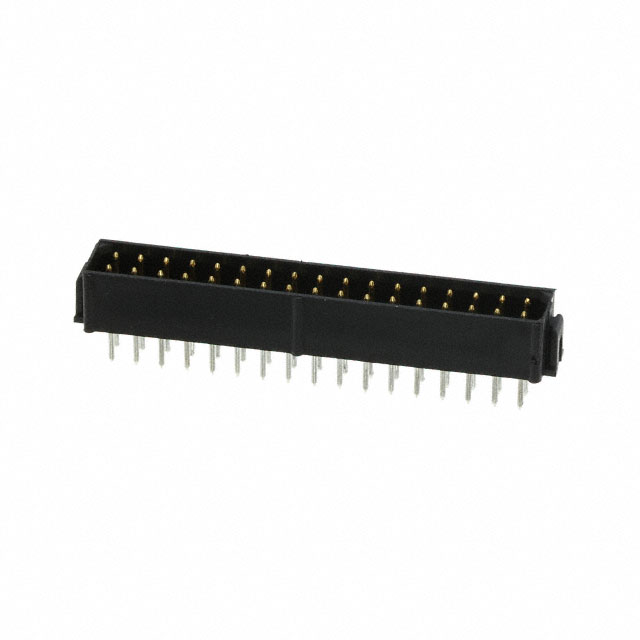

Harwin Inc. M80-8693422	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Through Hole	Solder	2 mm	0.079 in	Shrouded - 4 Wall	2	Polyester Glass Filled	Board to Board Cable	29.5 µin	0.75 µm	All	-55 C	125 °C	0.219 in	5.56 mm	Circular	Phosphor Bronze		0.118 in	3 mm	Male Pin	Plug	Latch Holder	0.079 "	2 mm	UL94 V-0	Gold	2.2 A	Tin-Lead	Black	800 V	34

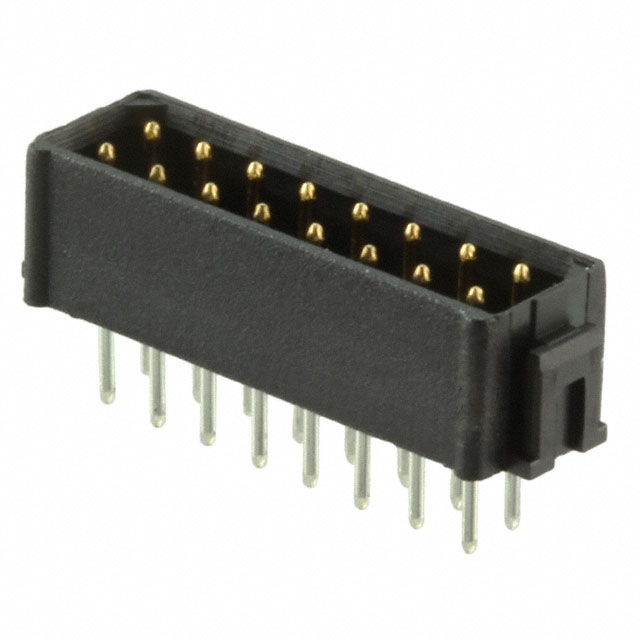

Harwin Inc. M80-8691622	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Through Hole	Solder	2 mm	0.079 in	Shrouded - 4 Wall	2	Polyester Glass Filled	Board to Board Cable	29.5 µin	0.75 µm	All	-55 C	125 °C	0.219 in	5.56 mm	Circular	Phosphor Bronze	16	0.118 in	3 mm	Male Pin	Plug	Latch Holder	0.079 "	2 mm	UL94 V-0	Gold	2.2 A	Tin-Lead	Black	800 V

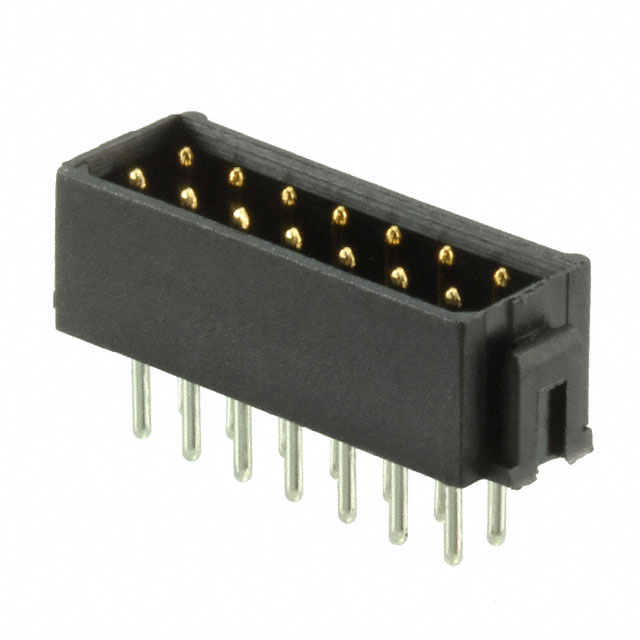

Harwin Inc. M80-8691422	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Through Hole	Solder	2 mm	0.079 in	Shrouded - 4 Wall	2	Polyester Glass Filled	Board to Board Cable	29.5 µin	0.75 µm	All	-55 C	125 °C	0.219 in	5.56 mm	Circular	Phosphor Bronze	14	0.118 in	3 mm	Male Pin	Plug	Latch Holder	0.079 "	2 mm	UL94 V-0	Gold	2.2 A	Tin-Lead	Black	800 V

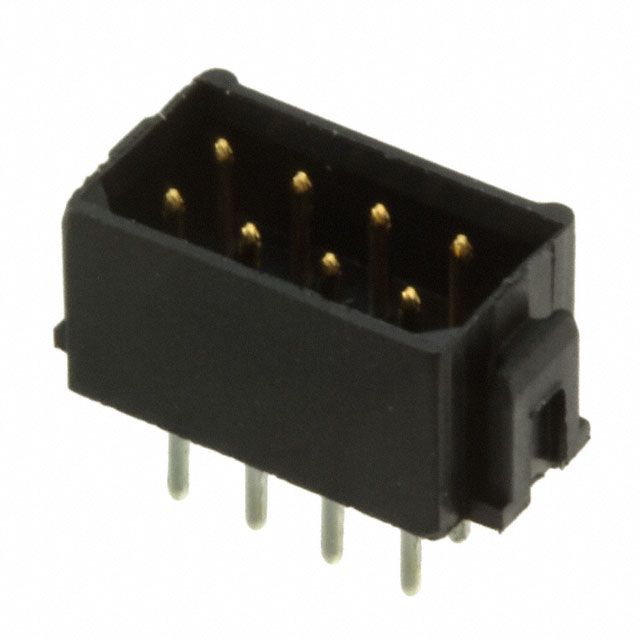

Harwin Inc. M80-8690822	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Through Hole	Solder	2 mm	0.079 in	Shrouded - 4 Wall	2	Polyester Glass Filled	Board to Board Cable	29.5 µin	0.75 µm	All	-55 C	125 °C	0.219 in	5.56 mm	Circular	Phosphor Bronze	8	0.118 in	3 mm	Male Pin	Plug	Latch Holder	0.079 "	2 mm	UL94 V-0	Gold	2.2 A	Tin-Lead	Black	800 V
