2307814 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

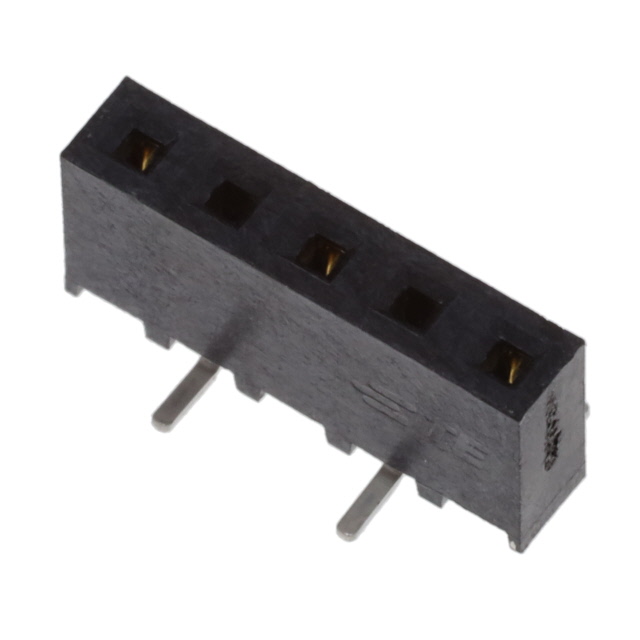

5P,2MM,BB,REC,SRVT,SMD,AU.38,TR,
| Part | Contact Finish - Mating | Voltage Rating | Insulation Color | Material Flammability Rating | Connector Type | Insulation Material | Number of Rows | Termination | Contact Material | Contact Finish - Post | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Number of Positions Loaded | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | 125 VDC | Black | UL94 V-0 | Receptacle | Liquid Crystal Polymer (LCP) | 1 | Solder | Phosphor Bronze | Tin | 0.079 in | 2 mm | 0.177 in | 4.5 mm | 125 °C | -40 °C | Surface Mount | 2 A | 15 µin | 0.38 µm | Female Socket | Square | 3 µm | 118.1 µin | Push-Pull | All | Pick and Place |
