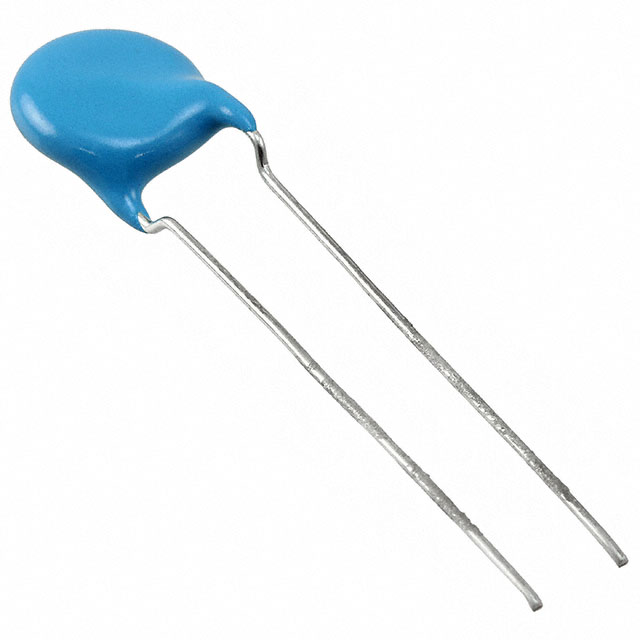

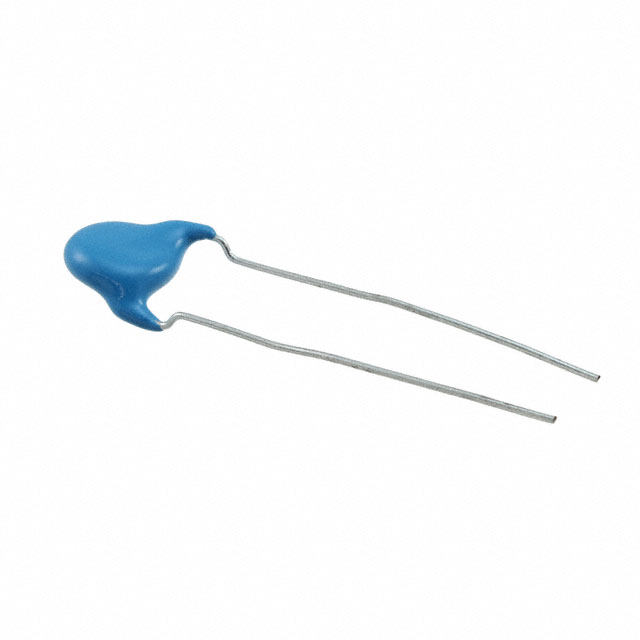

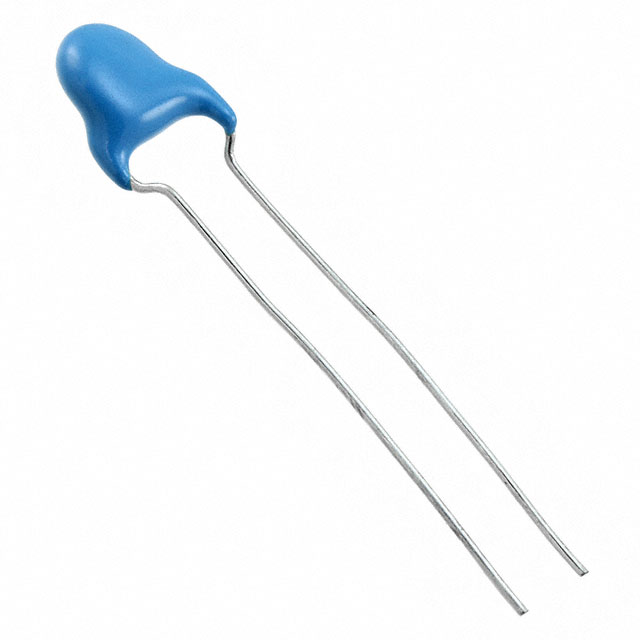

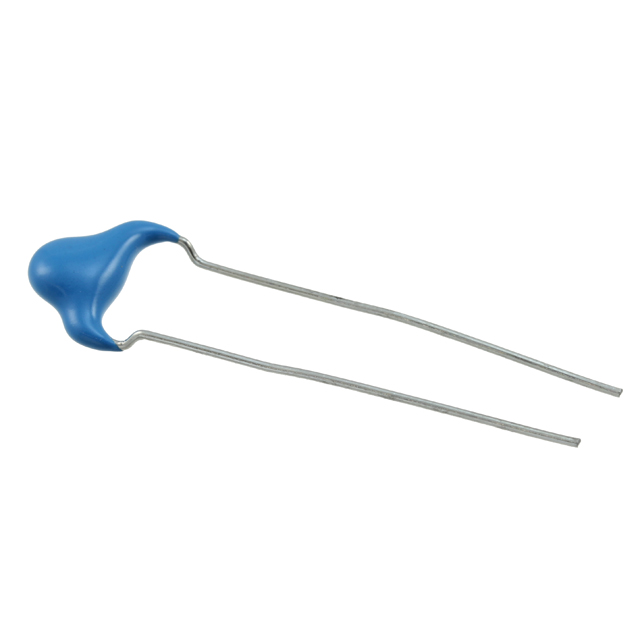

DE2E3KY Series

Catalog

CAP CER 1000PF 300VAC RADIAL

Part	Features	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Tolerance	Package / Case	Lead Style	Applications	Capacitance	Voltage - Rated	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Murata Electronics DE2E3KY102MB3BU02F	Safety Series X1Y2	Through Hole	0.276 in	7 mm	X1 Y2	10 mm	0.394 in	125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.001 µF	300 VAC	0.295 in	7.5 mm
Murata Electronics DE2E3KY102MN2AM01F	Safety Series X1Y2	Through Hole	0.276 in	7 mm	X1 Y2	10 mm	0.394 in	125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.001 µF	250 VAC	0.197 "	5 mm
Murata Electronics DE2E3KY222MA2BM01F	Safety Series X1Y2	Through Hole	0.315 in	8 mm	X1 Y2			125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	2200 pF	250 VAC	0.197 "	5 mm	11 mm	0.433 in
Murata Electronics DE2E3KY102MA2BM01	Safety Series X1Y2	Through Hole	0.276 in	7 mm	X1 Y2	10 mm	0.394 in	125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.001 µF	250 VAC	0.197 "	5 mm
Murata Electronics DE2E3KY472MB2BM01F	Safety Series X1Y2	Through Hole	0.394 in	10 mm	X1 Y2			125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.0047 µF	250 VAC	0.197 "	5 mm	13 mm	0.512 "
Murata Electronics DE2E3KY332MN3AU02F	Safety Series X1Y2	Through Hole	0.354 in	9 mm	X1 Y2		0.472 in	125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.0033 µF	300 VAC	0.295 in	7.5 mm			12 mm
Murata Electronics DE2E3KY222MN2AM01	Safety Series X1Y2	Through Hole	0.315 in	8 mm	X1 Y2			125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	2200 pF	250 VAC	0.197 "	5 mm	11 mm	0.433 in
Murata Electronics DE2E3KY102MJ3BM02F	Safety Series X1Y2	Through Hole	0.276 in	7 mm	X1 Y2	10 mm	0.394 in	125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.001 µF	250 VAC	0.295 in	7.5 mm
Murata Electronics DE2E3KY332MA3BM02F	Safety Series X1Y2	Through Hole	0.354 in	9 mm	X1 Y2		0.472 in	125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.0033 µF	250 VAC	0.295 in	7.5 mm			12 mm
Murata Electronics DE2E3KY472MJ3BM02F	Safety Series X1Y2	Through Hole	0.394 in	10 mm	X1 Y2			125 °C	-40 C	E	20 %	Disc Radial	Straight	Safety	0.0047 µF	250 VAC	0.295 in	7.5 mm	13 mm	0.512 "
