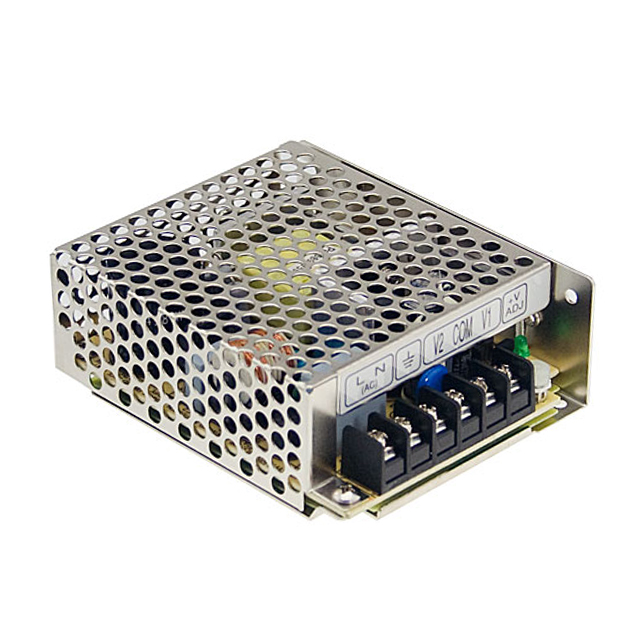

RD-35 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 12V 32W
| Part | Minimum Load Required | Applications | Power (Watts) | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Features | Voltage - Output 1 | Mounting Type | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Output 2 | Efficiency | Current - Output 1 | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | 32 W | 3000 V | 99 mm | 1.42 " | 82 mm | 36 mm | 3.23 in | 3.9 " | Adjustable Output Universal Input | 5 V | Chassis Mount | 2 | 88 VAC 125 VDC | 264 VAC 373 VDC | 12 V | 70 °C | -25 °C | Enclosed | 1 A | 79 % | 4 A | CB CE cURus TUV | |
MEAN WELL USA Inc. | ITE (Commercial) | 35 W | 3000 V | 99 mm | 1.42 " | 82 mm | 36 mm | 3.23 in | 3.9 " | Adjustable Output Universal Input | 5 V | Chassis Mount | 2 | 88 VAC 125 VDC | 264 VAC 373 VDC | 24 V | 70 °C | -25 °C | Enclosed | 1 A | 2.2 A | CB CE cURus TUV |
