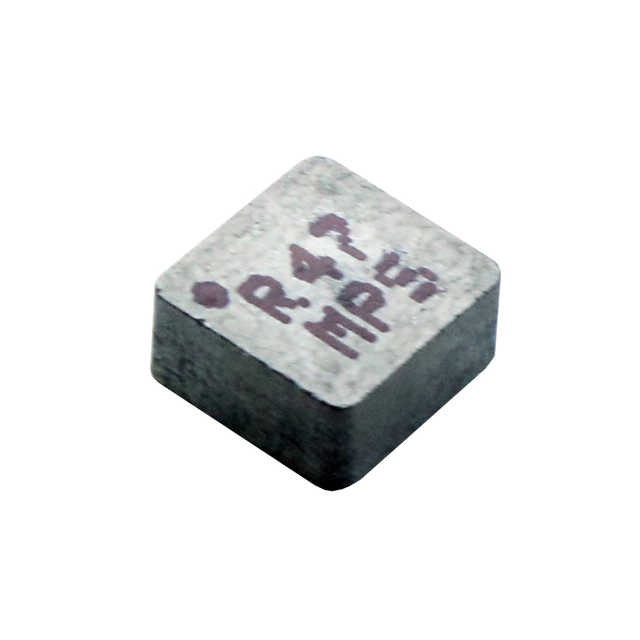

MPL-AL5030 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 1 ΜH, 11.2 A, SHIELDED, 16 A, MPL-AL SERIES
| Part | Package / Case | Inductance | Mounting Type | Current - Saturation (Isat) | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) | Operating Temperature [Min] | Operating Temperature [Max] | Inductance Frequency - Test | Shielding | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 2-SMD | 1 µH | Surface Mount | 16 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 6.5 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 11.2 A | 0.122 in | 3.1 mm |
 Monolithic Power Systems Inc. | 2-SMD | 1.5 µH | Surface Mount | 12.5 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 9.7 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 9 A | 0.122 in | 3.1 mm |
Monolithic Power Systems Inc. | 2-SMD | 2.2 µH | Surface Mount | 11 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 12.3 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 8.2 A | 0.122 in | 3.1 mm |
Monolithic Power Systems Inc. | 2-SMD | 820 nH | Surface Mount | 18 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 5 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 12.8 A | 0.122 in | 3.1 mm |
Monolithic Power Systems Inc. | 2-SMD | 470 nH | Surface Mount | 26.5 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 3.78 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 13.6 A | 0.122 in | 3.1 mm |
Monolithic Power Systems Inc. | 2-SMD | 4.7 ÁH | Surface Mount | 8 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 33 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 5.3 A | 0.122 in | 3.1 mm |
 Monolithic Power Systems Inc. | 2-SMD | 1.2 µH | Surface Mount | 14 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 8 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 10 A | 0.122 in | 3.1 mm |
Monolithic Power Systems Inc. | 2-SMD | 560 nH | Surface Mount | 22 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 3.92 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 13.2 A | 0.122 in | 3.1 mm |
Monolithic Power Systems Inc. | 2-SMD | 1.8 µH | Surface Mount | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 10.5 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 8.8 A | 0.122 in | 3.1 mm | |
Monolithic Power Systems Inc. | 2-SMD | 3.3 µH | Surface Mount | 10 A | Molded | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 21 mOhm | -40 C | 155 C | 100 kHz | Unshielded | 6 A | 0.122 in | 3.1 mm |
