0760-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

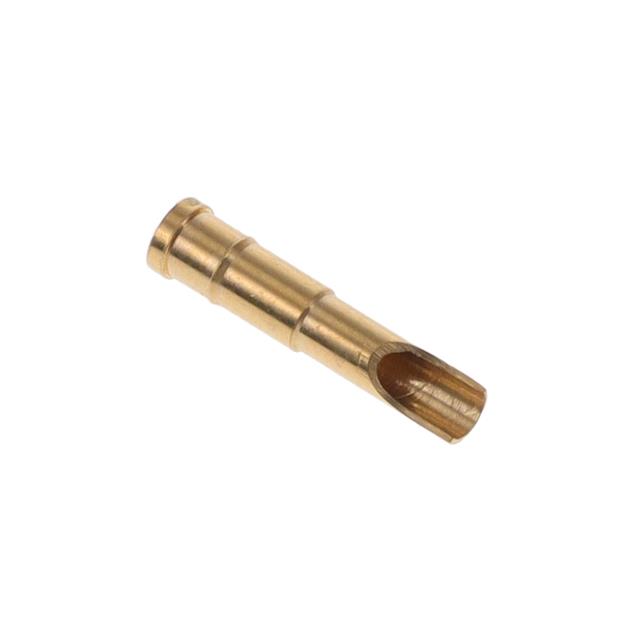

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Tail Type | Termination | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Socket Depth | Socket Depth | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Beryllium Copper | Gold | No Tail | Press-Fit | 2.24 mm | 0.088 " | 30 Áin | 0.76 Ám | 6.6 mm | 0.26 " | 1.22 mm | 0.064 in | 0.048 in | 1.63 mm | 0.119 in | 3.02 mm | 2.69 mm | 0.106 in |
