TR70MA Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC DESKTOP ADAPTER 12V 70W

Part	Region Utilized	Approval Agency	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Form	Polarization	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Input Connector	Current - Output (Max) [Max]

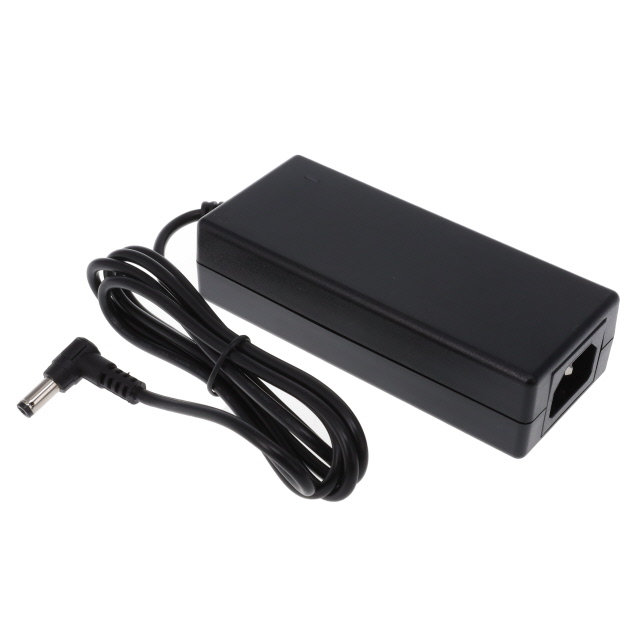

Cincon Electronics Co. LTD TR70MA120-01E02 VI	International	CE cURus FCC NEMKO	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Medical	Desktop (Class I)	Positive Center	150 mW	-20 ░C	70 °C	70 W	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	12 V	1.22 m	48 in	80 VAC	264 VAC	Cord (Sold Separately)	IEC 320-C14

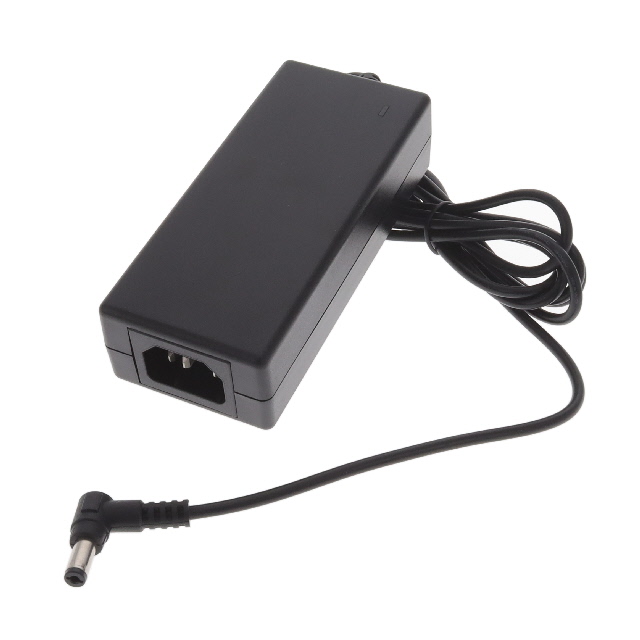

Cincon Electronics Co. LTD TR70MA360-01E03 VI	International	CE cURus FCC NEMKO	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Medical	Desktop (Class I)	Positive Center	150 mW	-20 ░C	70 °C	68 W	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	36 V	1.8 m	70.9 "	80 VAC	264 VAC	Cord (Sold Separately)	IEC 320-C14	1.9 A

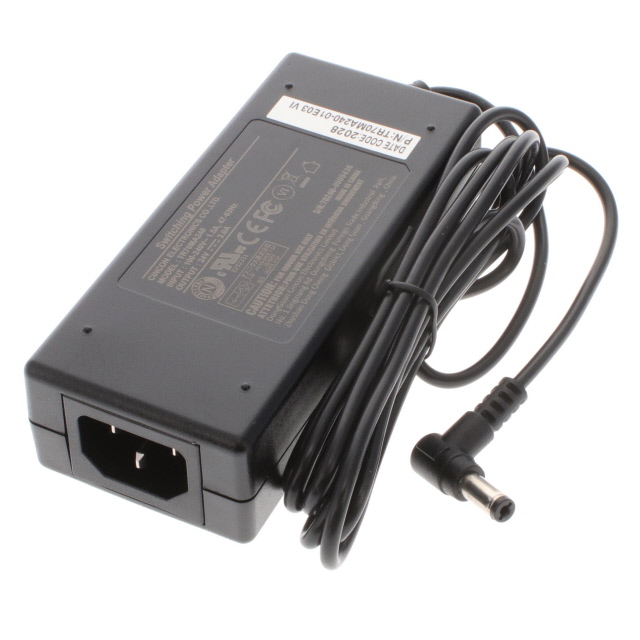

Cincon Electronics Co. LTD TR70MA240-01E03 VI	International	CE cURus FCC NEMKO	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Medical	Desktop (Class I)	Positive Center	150 mW	-20 ░C	70 °C	72 W	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	24 V	1.8 m	70.9 "	80 VAC	264 VAC	Cord (Sold Separately)	IEC 320-C14	3 A

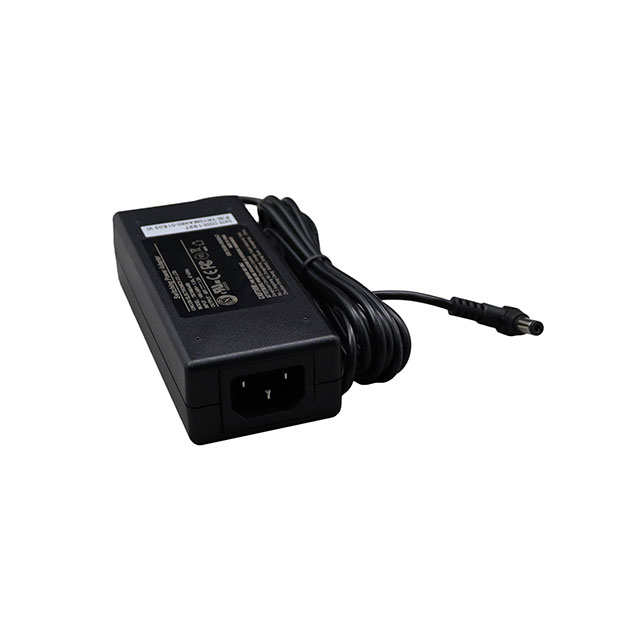

Cincon Electronics Co. LTD TR70MA480-01E03 VI	International	CE cURus FCC NEMKO	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Medical	Desktop (Class I)	Positive Center	150 mW	-20 ░C	70 °C	72 W	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	48 V	1.8 m	70.9 "	80 VAC	264 VAC	Cord (Sold Separately)	IEC 320-C14	1.5 A

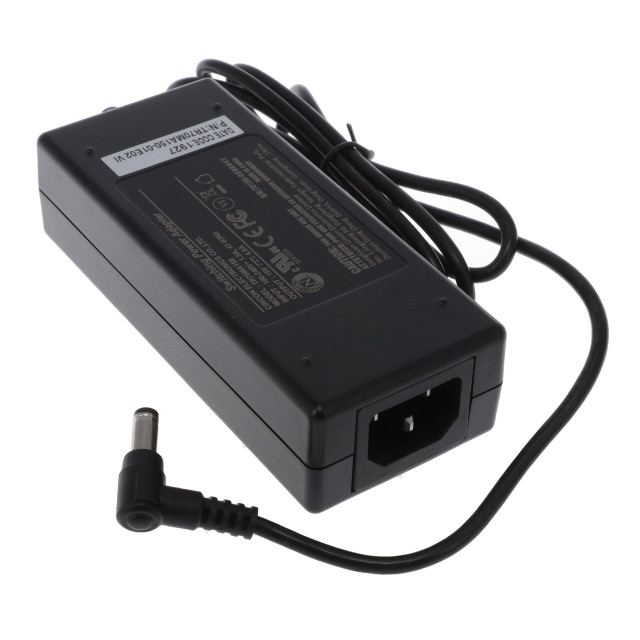

Cincon Electronics Co. LTD TR70MA150-01E02 VI	International	CE cURus FCC NEMKO	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Medical	Desktop (Class I)	Positive Center	150 mW	-20 ░C	70 °C	70 W	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	15 V	1.22 m	48 in	80 VAC	264 VAC	Cord (Sold Separately)	IEC 320-C14	4.65 A

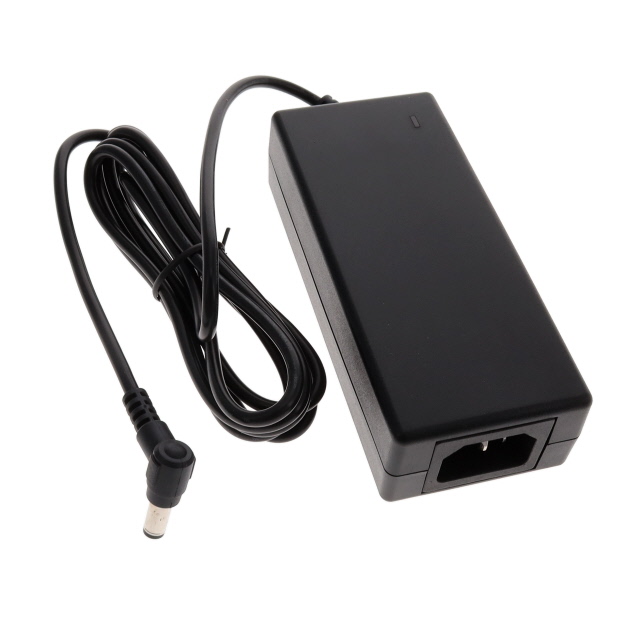

Cincon Electronics Co. LTD TR70MA180-01E03 VI	International	CE cURus FCC NEMKO	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Medical	Desktop (Class I)	Positive Center	150 mW	-20 ░C	70 °C	70 W	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	18 V	1.8 m	70.9 "	80 VAC	264 VAC	Cord (Sold Separately)	IEC 320-C14	3.9 A
