1.15156 Series
Manufacturer: RAFI USA
Beta
⌘K

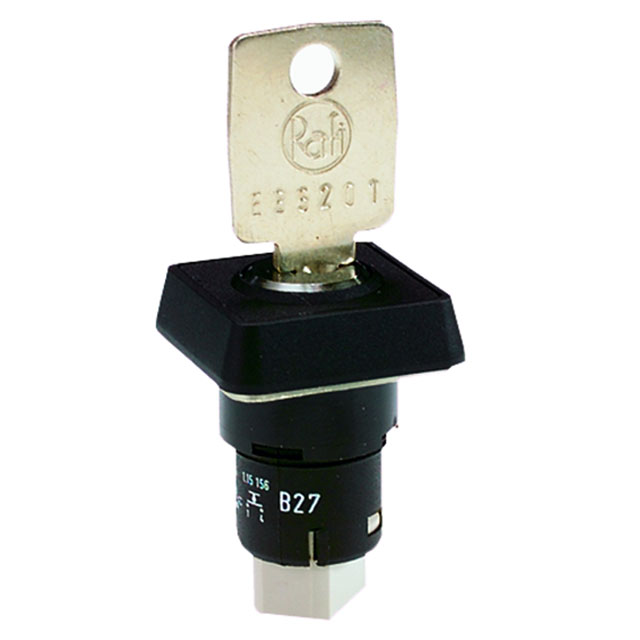

SWITCH KEYLK 2POS SPST 100MA 35V
| Part | Actuator Type | Contact Timing | Key Removable Positions | Switch Function | Circuit | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Mounting Type | Angle of Throw | Number of Positions | Contact Finish | Depth Behind Flange | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | Flat Key | Not Specified | Center | Off-On | SPST-NO | 35 V | 16.1 mm | 100 mA | -25 °C | 70 °C | Connector | Panel Mount | 90 ° | 2 | Gold | |||
RAFI USA | Flat Key | Not Specified | Center | Off-On | SPST-NO | 35 V | 16.1 mm | 100 mA | -25 °C | 70 °C | Connector | Panel Mount | 90 ° | 2 | Gold | 26.6 mm | 50000 Cycles | 50000 Cycles |
 RAFI USA | Flat Key | Not Specified | All | Off-On | SPST-NO | 35 V | 16.1 mm | 100 mA | -25 °C | 70 °C | Connector | Panel Mount | 90 ° | 2 | Gold | |||
RAFI USA | Flat Key | Not Specified | All | Off-On | SPST-NO | 35 V | 16.1 mm | 100 mA | -25 °C | 70 °C | Connector | Panel Mount | 90 ° | 2 | Gold | 26.6 mm | 50000 Cycles | 50000 Cycles |
