9993 Series
Manufacturer: Belden Inc.
Beta
⌘K

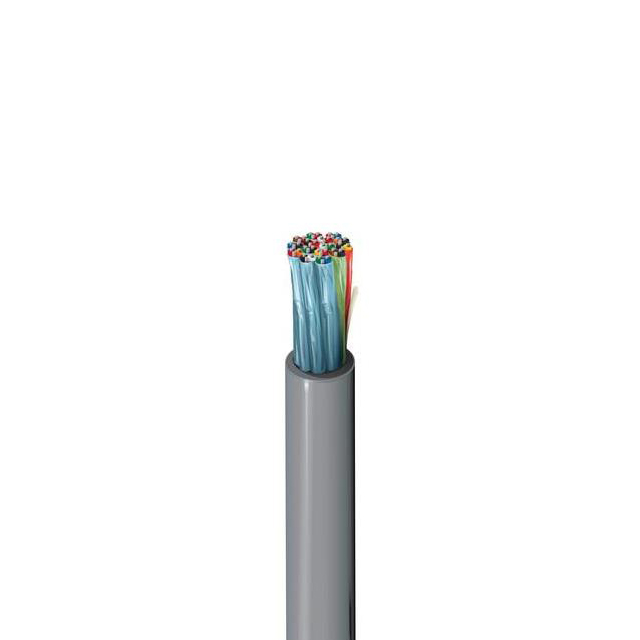

MULTI-PAIR 24COND 24AWG
| Part | Shield Material | Shield Coverage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shield Type | Usage | Jacket Color | Ratings | Wire Gauge | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Multi-Pair | 0.428 " | 10.87 mm | 100 ft | 30.5 m | 0.035 in | 0.889 mm | Copper Tinned | Polyethylene (PE) | 80 °C | -20 ░C | Drain Wire | Foil | Audio Control Instrumentation | Chrome | UL Style 2919 | 24 AWG | 24 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | ||
Belden Inc. | Aluminum | 100 % | Multi-Pair | 0.428 " | 10.87 mm | 0.035 in | 0.889 mm | Copper Tinned | Polyethylene (PE) | 80 °C | -20 ░C | Drain Wire | Foil | Audio Control Instrumentation | Chrome | UL Style 2919 | 24 AWG | 24 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
