AMPMODU MOD IV Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS CONN SOCKET 30-28AWG TIN

Part	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Finish	Accessory Type	For Use With/Related Products	Connector Type	Contact Type	Color	Insulation Material	Fastening Type	Pitch	Pitch	Number of Positions	Mounting Type	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Current Rating (Amps)	Termination	Insulation Height [z]	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Insulation Color	Number of Rows	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Row Spacing	Row Spacing	Contact Finish Thickness - Post	Contact Shape	Contact Material	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions [custom]
TE Connectivity AMP Connectors 5-87191-2	Socket	30 AWG	27.5 AWG	2.54 µm	100 µin	Crimp	Tin
TE Connectivity AMP Connectors 87975-1								Strain Relief	AMPMODU Mod IV Series
TE Connectivity AMP Connectors 86491-4	Socket	30 AWG	26 AWG	0.76 Ám	30 Áin	Crimp	Gold
TE Connectivity AMP Connectors 144095-1						Crimp				Receptacle	Female Socket	Black	Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.1 "	2.54 mm	6	Panel Mount	2	105 ░C	-65 ░C
TE Connectivity AMP Connectors 1-147726-3										Receptacle Bottom or Top Entry	Female Socket			Push-Pull			14	Through Hole		125 °C	-65 ░C	Tin-Lead	2 A	Solder	0.265 in	6.73 mm	0.1 "	2.54 mm	All	0.125 in	3.18 mm	Gold	Black	1	Board to Board Cable	0.25 µm	10 µin
TE Connectivity AMP Connectors 104855-4						Crimp				Receptacle	Female Socket	Black	Glass Filled Nylon Polyamide (PA)		0.1 "	2.54 mm		Panel Mount	2	105 ░C	-65 ░C																	Mounting Flange	2.54 mm	0.1 "
TE Connectivity AMP Connectors 5-147723-2										Receptacle Bottom or Top Entry	Female Socket		Polyester Glass Filled	Push-Pull				Surface Mount		125 °C	-65 ░C	Tin	2 A	Solder	0.265 in	6.73 mm	0.1 "	2.54 mm	All			Gold	Black	1	Board to Board Cable	0.76 Ám	30 Áin	Pick and Place			3.81 Ám	Square	Phosphor Bronze	UL94 V-0

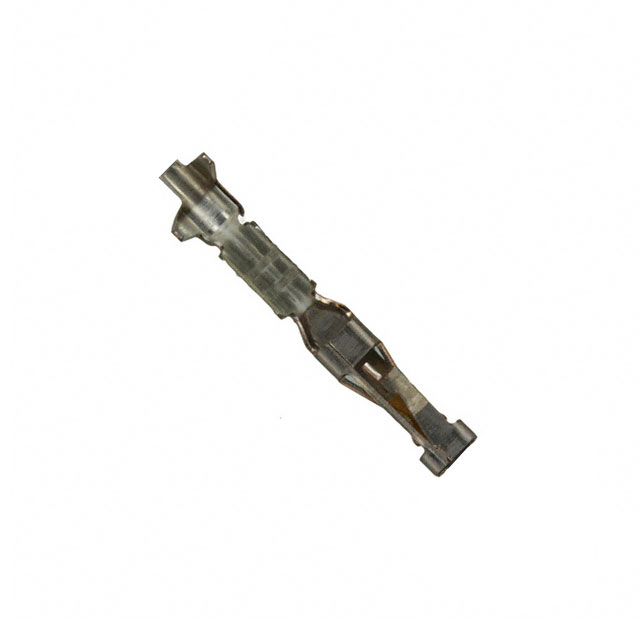

TE Connectivity AMP Connectors 1-104481-1	Socket	32 AWG	27.5 AWG	0.76 Ám	30 Áin	Crimp	Gold
TE Connectivity AMP Connectors 6-147723-9										Receptacle Bottom or Top Entry	Female Socket			Push-Pull			20	Surface Mount		125 °C	-65 ░C	Tin	2 A	Solder	0.265 in	6.73 mm	0.1 "	2.54 mm	All			Gold	Black	1	Board to Board Cable	0.76 Ám	30 Áin	Pick and Place						UL94 V-0
TE Connectivity AMP Connectors 6-147102-7										Receptacle Bottom or Top Entry	Female Socket		Polyester Glass Filled	Push-Pull				Surface Mount	2	125 °C	-65 ░C	Tin	2 A	Solder	0.265 in	6.73 mm	0.1 "	2.54 mm	All			Gold	Black		Board to Board Cable	0.76 Ám	30 Áin	Board Lock Pick and Place			3.81 Ám	Square	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	34
