1546213 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

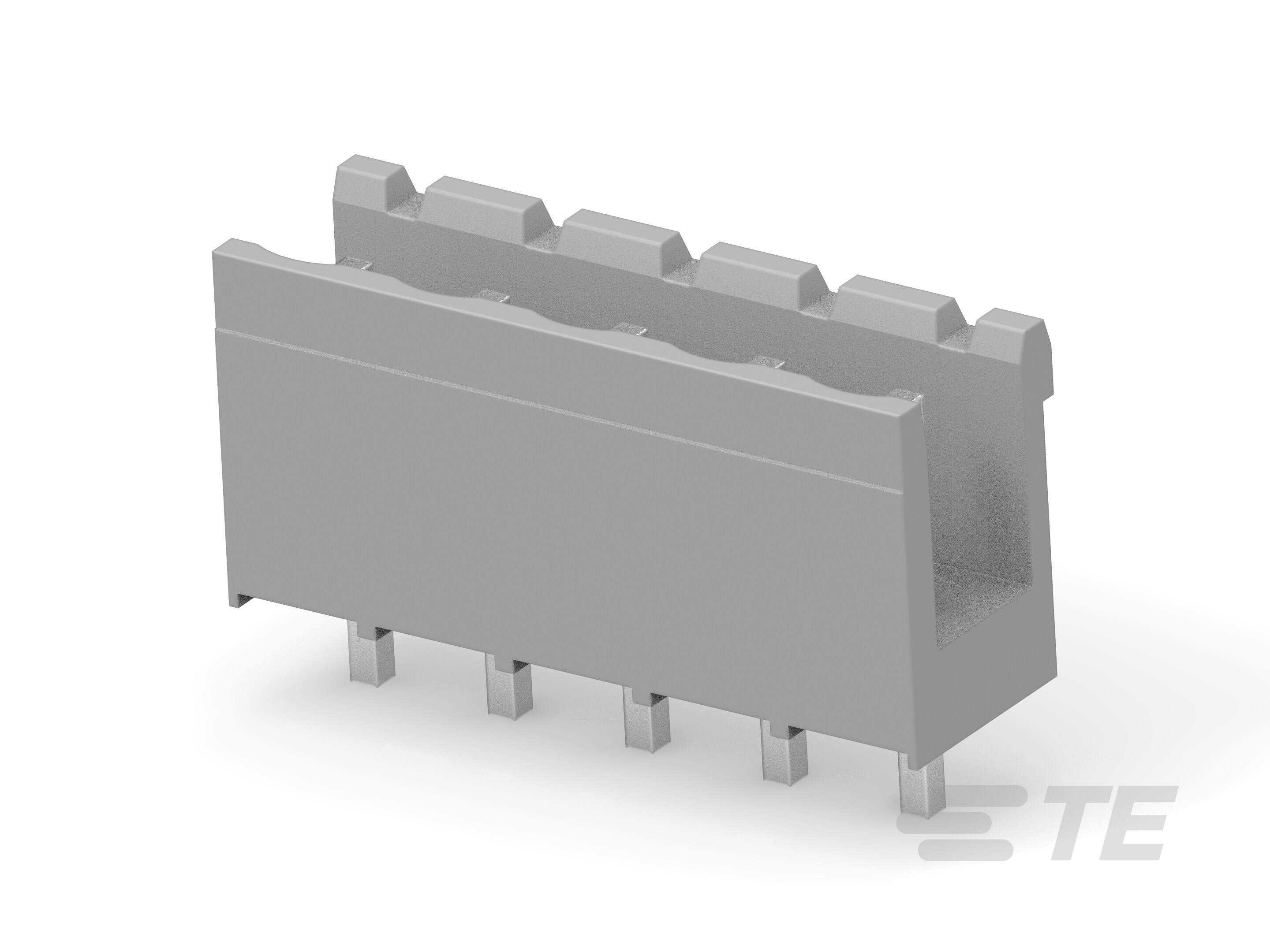

TERM BLOCK HDR 5POS VERT 5.08MM
| Part | Termination Style | Number of Levels | Contact Material | Insulation Height | Insulation Height | Contact Mating Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features | Material Flammability Rating | Pitch [x] | Pitch [x] | Type | Color | Contact Tail Length | Contact Tail Length | Positions Per Level | Mounting Type | Voltage - UL | Header Orientation | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Solder | 1 | Copper Alloy | 0.472 in | 12 mm | Tin | -40 °C | 110 °C | Side Stacking | UL94 V-0 | 0.2 in | 5.08 mm | Header Male Pins Shrouded (2 Side) | Gray | 3.5 mm | 0.138 in | 5 | Through Hole | 300 V | Vertical | |
TE Connectivity Raychem Cable Protection | Solder | 1 | Copper Alloy | 0.472 in | 12 mm | Tin | -40 °C | 110 °C | Side Stacking | UL94 V-0 | 0.2 in | 5.08 mm | Header Male Pins Shrouded (2 Side) | Gray | 3.5 mm | 0.138 in | 3 | Through Hole | 300 V | Vertical | |
TE Connectivity Raychem Cable Protection | Solder | 1 | Copper Alloy | 0.472 in | 12 mm | Tin | -40 °C | 110 °C | Side Stacking | UL94 V-0 | 0.2 in | 5.08 mm | Header Male Pins Shrouded (2 Side) | Gray | 3.5 mm | 0.138 in | 4 | Through Hole | 300 V | Vertical | 4 |
