TPS254900A-Q1 Series

Automotive USB Charge port controller with short to BATT protection and droop compensation

Catalog

Automotive USB Charge port controller with short to BATT protection and droop compensation

Part	Package / Case	Grade	Fault Protection	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Current - Output (Max) [Max]	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Output Type	Qualification	Input Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Load [Max]	Voltage - Load [Min]	Ratio - Input:Output [custom]	Switch Type	Number of Outputs	Supplied Contents	Utilized IC / Part	Type	Function	Interface	Rds On (Typ)	Features
Texas Instruments TPS254900AIRVCTQ1	20-WFQFN Exposed Pad	Automotive	Current Limiting Over Voltage UVLO	-40 °C	85 °C	Low Side	3.2 A	Surface Mount	6.5 V	4.5 V	N-Channel	AEC-Q100	Differential	20-WQFN	4	3	0.7 V	0.5 V	1:1	USB Switch	1

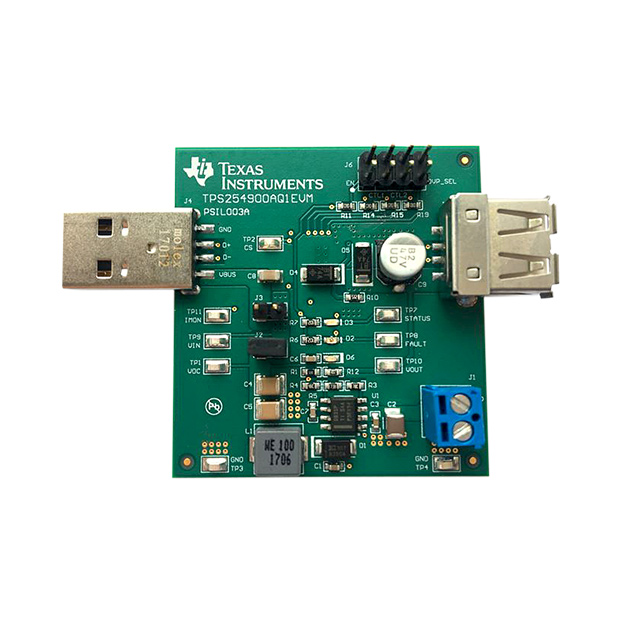

Texas Instruments TPS254900AQ1EVM																						Board(s)	TPS254900A-Q1	Power Management	Power Distribution Switch (Load Switch)

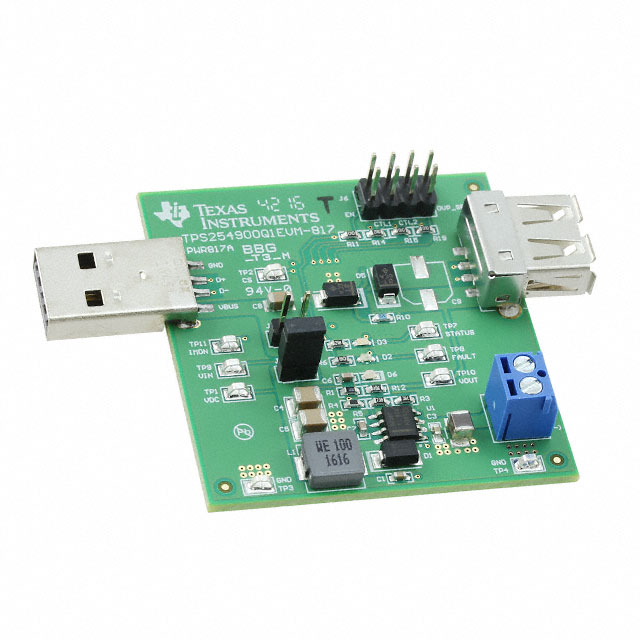

Texas Instruments TPS254900Q1EVM-817																						Board(s)	TPS254900-Q1	Power Management	Power Distribution Switch (Load Switch)
Texas Instruments TPS254900IRVCRQ1	20-WFQFN Exposed Pad	Automotive	Current Limiting (Adjustable) Over Temperature Over Voltage UVLO	-40 °C	125 ¯C	High Side	3 A	Surface Mount			N-Channel	AEC-Q100	Non-Inverting	20-WQFN	4	3	6.5 V	4.5 V	1:1	USB Switch	1					On/Off	45 mOhm	Status Flag
Texas Instruments TPS254900AIRVCRQ1	20-WFQFN Exposed Pad	Automotive	Current Limiting Over Voltage UVLO	-40 °C	85 °C	Low Side	3.2 A	Surface Mount	6.5 V	4.5 V	N-Channel	AEC-Q100	Differential	20-WQFN	4	3	0.7 V	0.5 V	1:1	USB Switch	1

Catalog

Automotive USB Charge port controller with short to BATT protection and droop compensation

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating TemperatureDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C54.5-V to 6.5-V Input Operating Range3.5-V (typ) UVLO to Support Start-StopIntegrated 45-mΩ (typ.) High-Side MOSFET3.2-A Maximum Continuous Output CurrentVBUS±5% Cable Compensation Accuracy at ConnectorSupports USB BC 1.2 CDP and SDP ModesShort-to-Battery Protection on OUT, DP_IN, and DM_IN PinsDP_IN and DM_IN IEC 61000-4-2 Rated±8-kV Contact and ±15-kV Air Discharge20-Pin QFN (3-mm × 4-mm) PackageQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating TemperatureDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C54.5-V to 6.5-V Input Operating Range3.5-V (typ) UVLO to Support Start-StopIntegrated 45-mΩ (typ.) High-Side MOSFET3.2-A Maximum Continuous Output CurrentVBUS±5% Cable Compensation Accuracy at ConnectorSupports USB BC 1.2 CDP and SDP ModesShort-to-Battery Protection on OUT, DP_IN, and DM_IN PinsDP_IN and DM_IN IEC 61000-4-2 Rated±8-kV Contact and ±15-kV Air Discharge20-Pin QFN (3-mm × 4-mm) Package

Description

The TPS254900A-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V. The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream DC-DC converter, processor, or hub data lines. The TPS254900A-Q1 has a low UVLO of 3.5 V, so that the power switch does not turn off during start-stop. The TPS254900A-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity. The TPS254900A-Q1 device has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices. A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management. The TPS254900A-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN. The TPS254900A-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V. The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream DC-DC converter, processor, or hub data lines. The TPS254900A-Q1 has a low UVLO of 3.5 V, so that the power switch does not turn off during start-stop. The TPS254900A-Q1 45-mΩ power switch has two selectable, adjustable current limits that support port power management by changing to a lower current limit when adjacent ports are experiencing heavy loads. This is important in systems with multiple ports and upstream power supplies with limited capacity. The TPS254900A-Q1 device has a current-sense output that is able to control an upstream supply, which allows it to maintain 5 V at the USB port even with heavy charging currents. This feature is important in systems with long USB cables where significant voltage drops can occur with fast-charging portable devices. A current monitor allows a system to monitor the load current in real time by monitoring the IMON voltage. The current monitor is very useful and can be used for dynamic port-power management. The TPS254900A-Q1 device also provides ESD protection capability per IEC 61000-4-2, level 4 on DP_IN and DM_IN.
