070545 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Termination	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating [x]	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Features	Insulation Material	Mounting Type	Contact Shape	Style	Number of Positions Loaded	Voltage Rating	Overall Contact Length	Overall Contact Length	Shrouding	Connector Type	Number of Rows	Insulation Color	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]

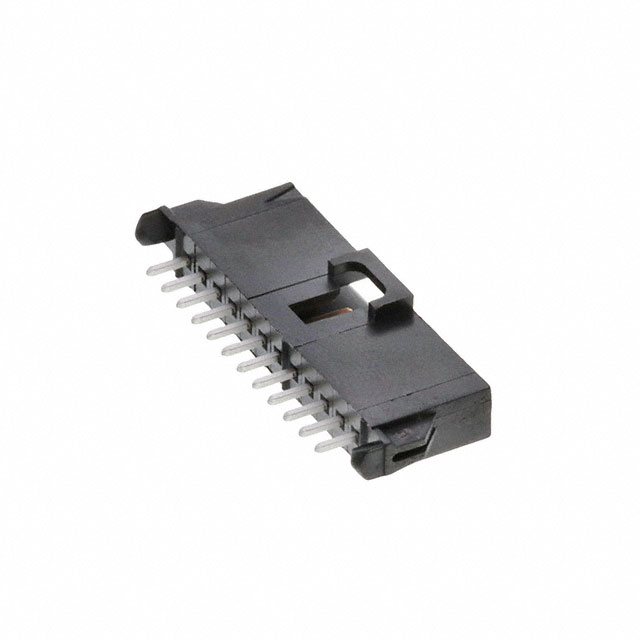

Molex 0705450081	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder	12	Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin	Gold	6.1 mm	0.24 in	Phosphor Bronze	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black

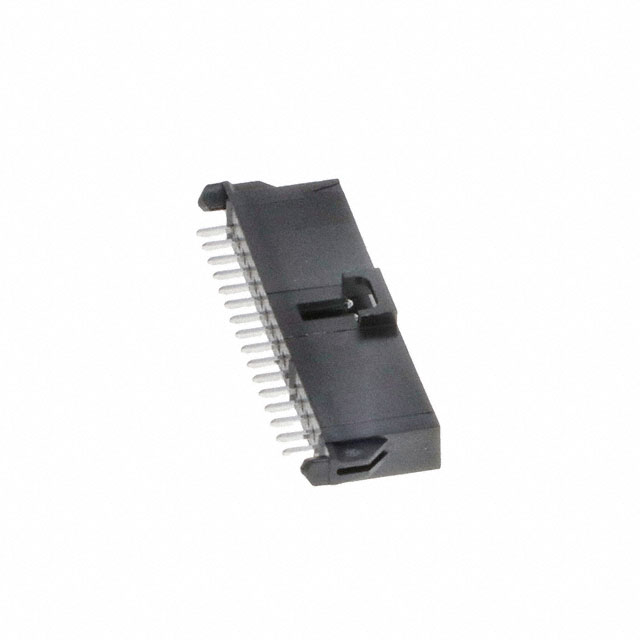

Molex 0705450015	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder		Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin		6.1 mm	0.24 in	Phosphor Bronze			150 Áin	3.81 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black	16

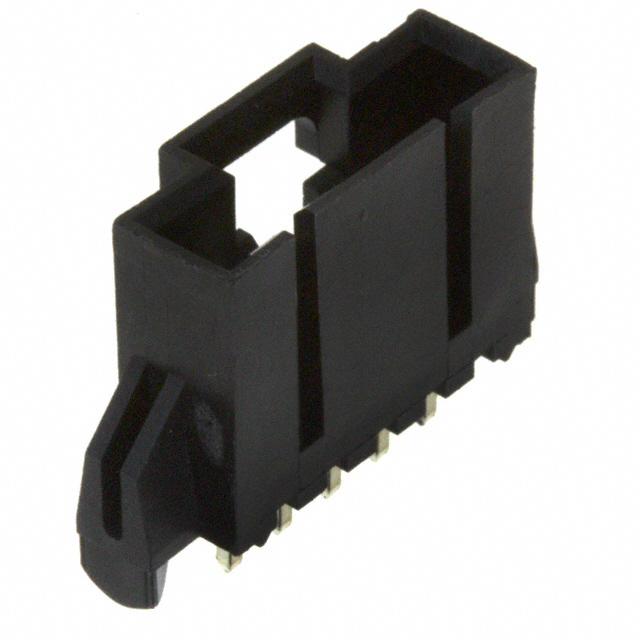

Molex 0705450004	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder		Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin		6.1 mm	0.24 in	Phosphor Bronze			150 Áin	3.81 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black
Molex 0705450085	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder		Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin	Gold	6.1 mm	0.24 in	Phosphor Bronze	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black	16
Molex 0705450086	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder		Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin	Gold	6.1 mm	0.24 in	Phosphor Bronze	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black

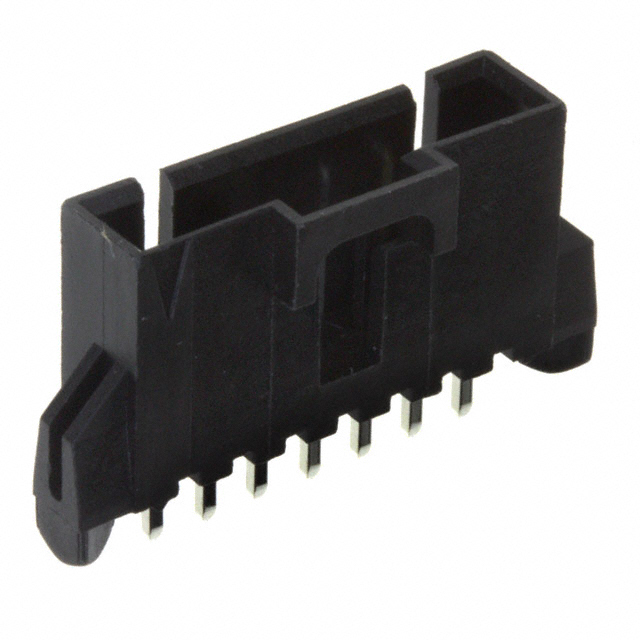

Molex 0705450006	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder	7	Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin		6.1 mm	0.24 in	Phosphor Bronze			150 Áin	3.81 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black
Molex 0705450052	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder	18	Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin	Gold	6.1 mm	0.24 in	Phosphor Bronze	74.8 Áin	1.9 Ám	15 µin	0.38 µm	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black
Molex 0705450180	0.465 in	11.8 mm			Tin	Solder	6	Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin	Gold	6.1 mm	0.24 in	Phosphor Bronze	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	13.84 mm	0.545 in	Shrouded - 4 Wall	Header	1	Black		0.205 in	5.21 mm

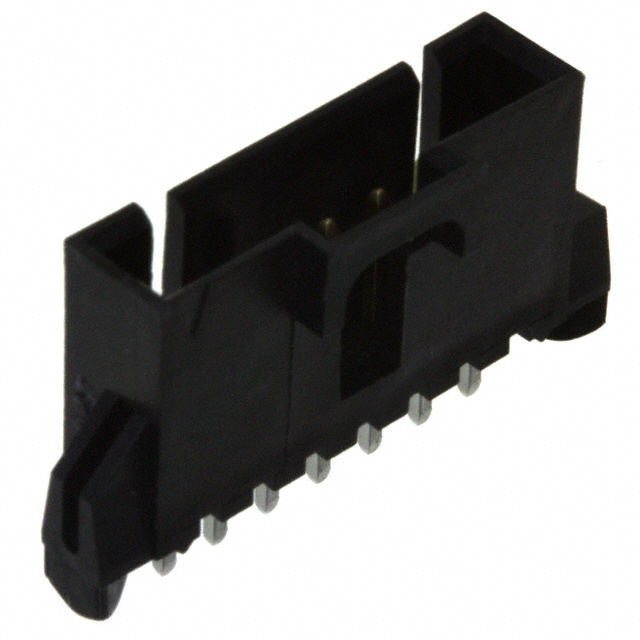

Molex 0705450041	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder	7	Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin	Gold	6.1 mm	0.24 in	Phosphor Bronze	74.8 Áin	1.9 Ám	15 µin	0.38 µm	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black
Molex 0705450093	0.465 in	11.8 mm	0.13 in	3.3 mm	Tin	Solder	24	Latch Holder	-40 °C	105 ░C	Automotive General Purpose Industrial Medical	Male Pin	Gold	6.1 mm	0.24 in	Phosphor Bronze	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	UL94 V-0	0.1 in	2.54 mm	Board Guide	Polyester Glass Filled	Through Hole	Square	Board to Cable/Wire	All	250 VDC	11.94 mm	0.47 "	Shrouded - 4 Wall	Header	1	Black
