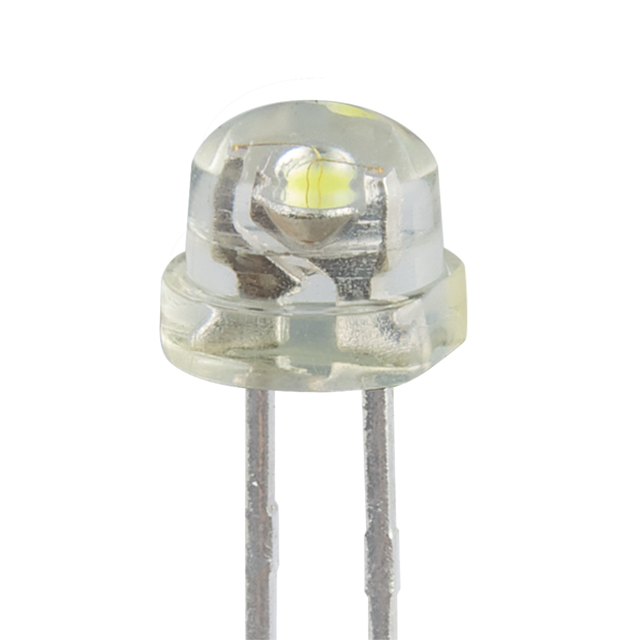

WP9294 Series

Catalog

LED YELLOW CLEAR 5MM ROUND T/H

Part	Current - Test	Viewing Angle	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Color	Configuration	Size / Dimension [diameter]	Package / Case	Supplier Device Package	Mounting Type	Lens Transparency	Lens Style	Wavelength - Peak	Height (Max) [Max] [z]	Lens Size [diameter]	Lens Color	Supplier Device Package [diameter]
Kingbright WP9294SYC/J3	20 mA	130 °	700 mcd	2 V	590 nm	Yellow	Standard	4.8 mm	Radial	5mm Round	Through Hole	Clear	Round with Domed Top	590 nm	4.85 mm	4.8 mm	Colorless
Kingbright WP9294QBC/D	20 mA	70 °	500 mcd	3.3 V	465 nm	Blue	Standard	4.8 mm	Radial	Round	Through Hole	Clear	Round with Domed Top	460 nm	5.05 mm	4.8 mm	Colorless	5 mm
Kingbright WP9294QBC/G	20 mA	60 °	700 mcd	3.3 V	465 nm	Blue	Standard	4.8 mm	Radial	5mm Round	Through Hole	Clear	Round with Domed Top	461 nm	4.85 mm	4.8 mm	Colorless

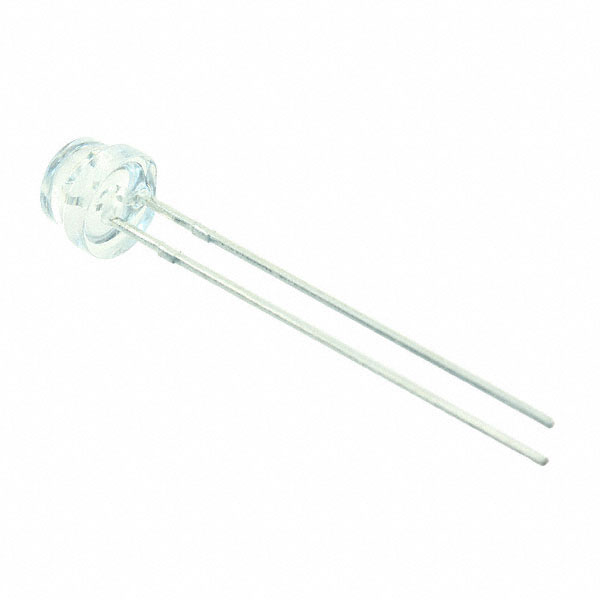

Kingbright WP9294SEC/J3	20 mA	130 °	700 mcd	2.2 V	625 nm	Red	Standard	4.8 mm	Radial	5mm Round	Through Hole	Clear	Round with Domed Top	640 nm	4.85 mm	4.8 mm	Colorless
Kingbright WP9294SECK/J3	20 mA	130 °	900 mcd	2.2 V	625 nm	Red	Standard	4.8 mm	Radial	5mm Round	Through Hole	Clear	Round with Domed Top	640 nm	5.05 mm	4.8 mm	Colorless
