B22-254 Series
Manufacturer: Ledex Dormeyer Saia, a Division of Johnson Electric
Beta
⌘K

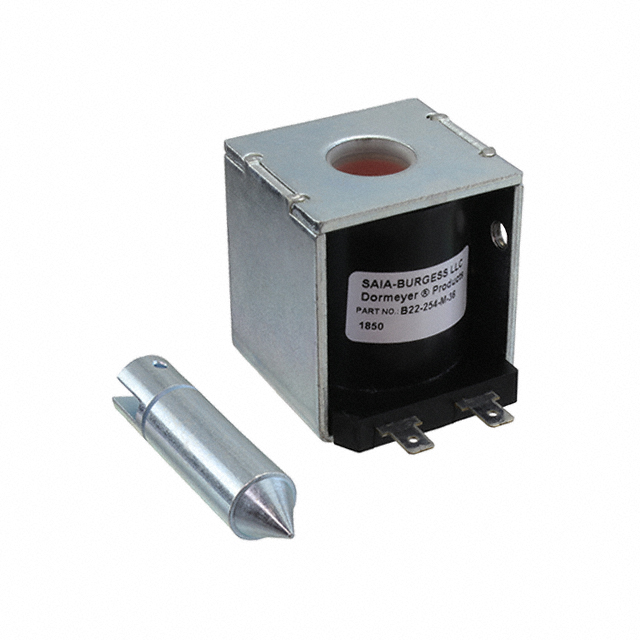

OPEN FRAME SOLENOID B22 - 12 VDC
| Part | DC Resistance (DCR) | Shaft Detail | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Termination Style | Technology | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ledex Dormeyer Saia, a Division of Johnson Electric | 14.6 Ohm | Clevis | Open Frame (Pull) | 40.89 mm | 37.34 mm | 33.27 mm | 1.31 " | 1.47 in | 1.61 " | Chassis Mount | Quick Connect | Electromechanical | 12.7 mm | 0.5 in |
