DAC8806 Series

14-Bit, Single Channel, Parallel Interface, Multiplying Digital-to-Analog Converter

Catalog

14-Bit, Single Channel, Parallel Interface, Multiplying Digital-to-Analog Converter

Part	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Data Interface	Reference Type	Settling Time	Supplier Device Package	Number of Bits	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]	Package / Case	Package / Case [custom]	Output Type	Architecture	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Mounting Type	DAC Type	Supplied Contents	Number of DAC's	Utilized IC / Part
Texas Instruments DAC8806IDB	5.5 V	2.7 V	Parallel	External	500 ns	28-SSOP	14	85 °C	-40 °C	0.209 in	28-SSOP	5.3 mm	Current - Unbuffered	Multiplying DAC	2.7 V	5.5 V	Surface Mount

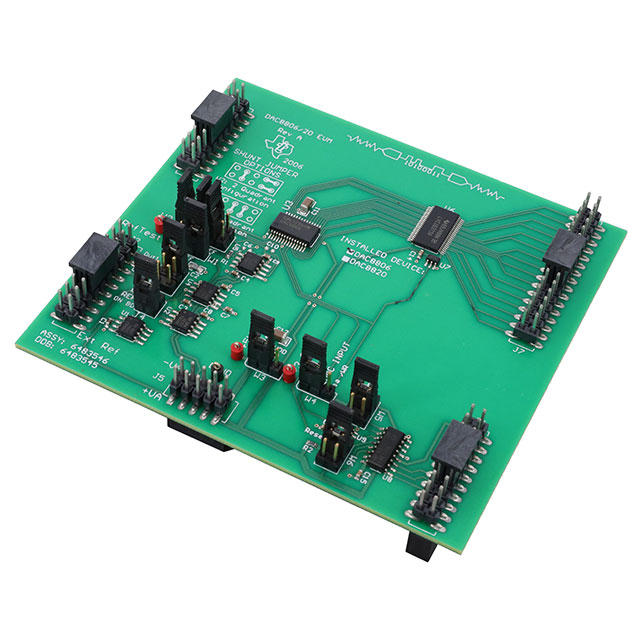

Texas Instruments DAC8806EVM			Parallel		500 ns		14											Current	Board(s)	1	DAC8806
Texas Instruments DAC8806IDBR	5.5 V	2.7 V	Parallel	External	500 ns	28-SSOP	14	85 °C	-40 °C	0.209 in	28-SSOP	5.3 mm	Current - Unbuffered	Multiplying DAC	2.7 V	5.5 V	Surface Mount

Catalog

14-Bit, Single Channel, Parallel Interface, Multiplying Digital-to-Analog Converter

Key Features

• ±0.5LSB DNL±1LSB INL14-Bit MonotonicLow Noise: 10nV/HzLow Power: IDD= 2µAAnalog Power Supply: +2.7V to +5.5V1.66mA Full-Scale Current, with VREF= 10VSettling Time: 0.5µs4-Quadrant Multiplying ReferenceReference Bandwidth: 8MHzReference Input: ±15VReference Dynamics: -105 dB THDSSOP-28 PackageIndustry-Standard Pin ConfigurationAPPLICATIONSAutomatic Test EquipmentInstrumentationDigitally Controlled CalibrationIndustrial Control PLCsAll other trademarks are the property of their respective owners±0.5LSB DNL±1LSB INL14-Bit MonotonicLow Noise: 10nV/HzLow Power: IDD= 2µAAnalog Power Supply: +2.7V to +5.5V1.66mA Full-Scale Current, with VREF= 10VSettling Time: 0.5µs4-Quadrant Multiplying ReferenceReference Bandwidth: 8MHzReference Input: ±15VReference Dynamics: -105 dB THDSSOP-28 PackageIndustry-Standard Pin ConfigurationAPPLICATIONSAutomatic Test EquipmentInstrumentationDigitally Controlled CalibrationIndustrial Control PLCsAll other trademarks are the property of their respective owners

Description

The DAC8806, a multiplying digital-to-analog converter (DAC), is designed to operate from a single 2.7V to 5.5V supply. The applied external reference input voltage VREFdetermines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external, current-to-voltage (I/V) precision amplifier. A parallel interface offers high-speed communications. The DAC8806 is packaged in a space-saving SSOP-28 package and has an industry-standard pinout. The DAC8806, a multiplying digital-to-analog converter (DAC), is designed to operate from a single 2.7V to 5.5V supply. The applied external reference input voltage VREFdetermines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external, current-to-voltage (I/V) precision amplifier. A parallel interface offers high-speed communications. The DAC8806 is packaged in a space-saving SSOP-28 package and has an industry-standard pinout.
