GBC33D Series

Catalog

CONN HEADER SMD 66POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Positions	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Connector Type	Contact Finish - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Termination	Fastening Type	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Insulation Material	Style	Material Flammability Rating

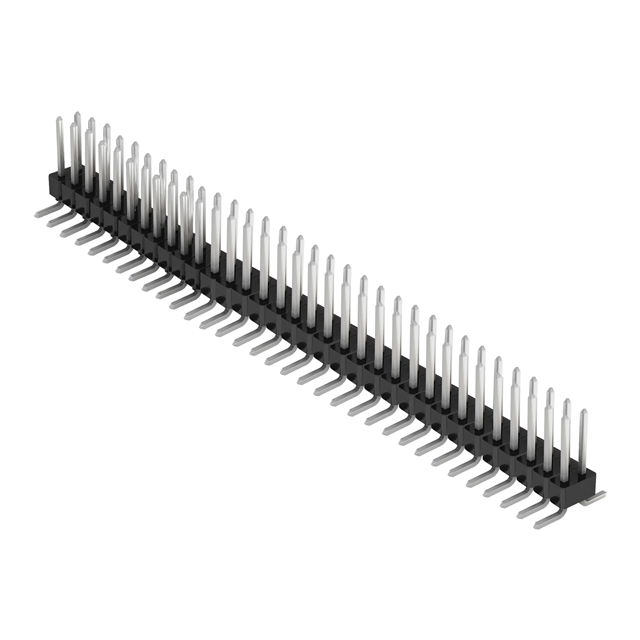

Sullins Connector Solutions GBC33DABN-M30	2.54 µm	100 µin	Unshrouded	66	2	0.25 µm	10 µin	Square	Phosphor Bronze	Header Breakaway	Tin	All	0.1 in	2.54 mm	Male Pin	0.1 "	2.54 mm	0.1 in	2.54 mm	150 °C	-65 ░C	0.23 in	5.84 mm	Solder	Push-Pull	Surface Mount	3 A	Gold	Black	Nylon 9T Polyamide (PA9T)	Board to Board Cable	UL94 V-0
