E5EC-PR Series

Manufacturer: Omron Automation and Safety

Catalog

CONTROL TEMP/PROCESS 100-240V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Type	Number of Characters Per Row	Number of Characters Per Row	Control Method	Termination Style	Output Type	Communications	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Display Characters - Height	Display Characters - Height	Input Range [Min]	Input Range [Max]	Features	Mounting Type	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Voltage - Supply

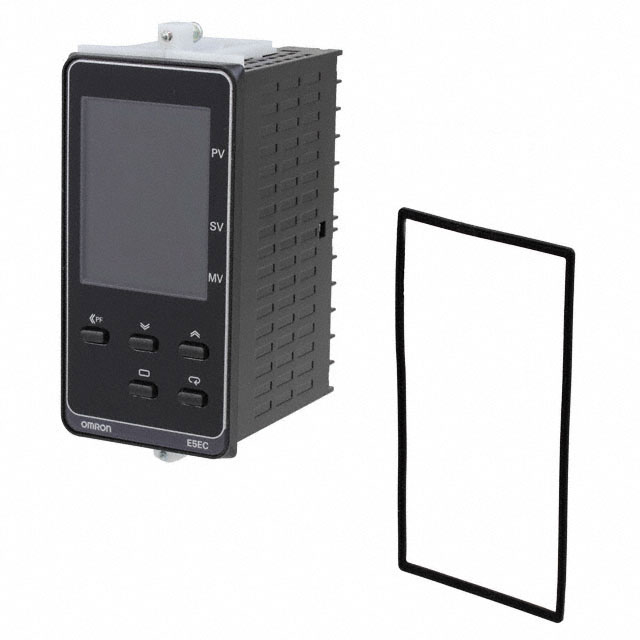

Omron Automation and Safety E5EC-PR2ASM-804	55 °C	-10 °C	210.01 g	0.463 lb	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	4	4	On/Off Proportional (PID)	Screw Terminal	Relay (4)	RS-485 (CompoWay/F Modbus)	45 mm	92 mm	IP66 - Dust Tight Water Resistant	240 VAC	100 VAC	Backlight LCD - Dual Color Characters	0.433 in 0.71 in	11 mm 18 mm	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Event Input	Panel Mount
Omron Automation and Safety E5EC-PR2ASM-800	55 °C	-10 °C	210.01 g	0.463 lb	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	4	4	On/Off Proportional (PID)	Screw Terminal	Relay (4)		45 mm	92 mm	IP66 - Dust Tight Water Resistant	240 VAC	100 VAC	Backlight LCD - Dual Color Characters	0.433 in 0.71 in	11 mm 18 mm	-200 °C 0 V 0 A	10 V 20 mA 2300 °C		Panel Mount
Omron Automation and Safety E5EC-PR4A5M-000	55 °C	-10 °C	210.01 g	0.463 lb	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)			On/Off Proportional (PID)	Screw Terminal	Relay (6)		45 mm	92 mm	IP66 - Dust Tight Water Resistant	240 VAC	100 VAC	Backlight Tri Color Characters	7.8 mm 11 mm 18 mm	0.307 in 0.433 " 0.71 in	-200 °C 0 V 0 A	10 V 20 mA 2300 °C		Panel Mount	4	4	4
Omron Automation and Safety E5EC-PR4A5M-004	55 °C	-10 °C	210.01 g	0.463 lb	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)			On/Off Proportional (PID)	Screw Terminal	Relay (6)	RS-485 (CompoWay/F Modbus)	45 mm	92 mm	IP66 - Dust Tight Water Resistant	240 VAC	100 VAC	Backlight Tri Color Characters	7.8 mm 11 mm 18 mm	0.307 in 0.433 " 0.71 in	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Event Input	Panel Mount	4	4	4
Omron Automation and Safety E5EC-PR4D5M-000	55 °C	-10 °C	210.01 g	0.463 lb	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)			On/Off Proportional (PID)	Screw Terminal	Relay (6)		45 mm	92 mm	IP66 - Dust Tight Water Resistant			Backlight Tri Color Characters	7.8 mm 11 mm 18 mm	0.307 in 0.433 " 0.71 in	-200 °C 0 V 0 A	10 V 20 mA 2300 °C		Panel Mount	4	4	4	24 VAC
Omron Automation and Safety E5EC-PR0ASM-800	55 °C	-10 °C	210.01 g	0.463 lb	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	4	4	On/Off Proportional (PID)	Screw Terminal	Relay (2)		45 mm	92 mm	IP66 - Dust Tight Water Resistant	240 VAC	100 VAC	Backlight LCD - Dual Color Characters	0.433 in 0.71 in	11 mm 18 mm	-200 °C 0 V 0 A	10 V 20 mA 2300 °C		Panel Mount
