CC2531 Series

Zigbee and IEEE 802.15.4 wireless MCU with up to 256kB Flash and 8kB RAM

Catalog

Zigbee and IEEE 802.15.4 wireless MCU with up to 256kB Flash and 8kB RAM

Part	Type	Supplied Contents	For Use With/Related Products	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Protocol	Data Rate (Max)	Mounting Type	RF Family/Standard	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	Current - Receiving [Min]	Current - Receiving [Max]	Sensitivity	Package / Case	Power - Output	GPIO	Current - Transmitting [Max]	Current - Transmitting [Min]	Operating Temperature [Max]	Operating Temperature [Min]

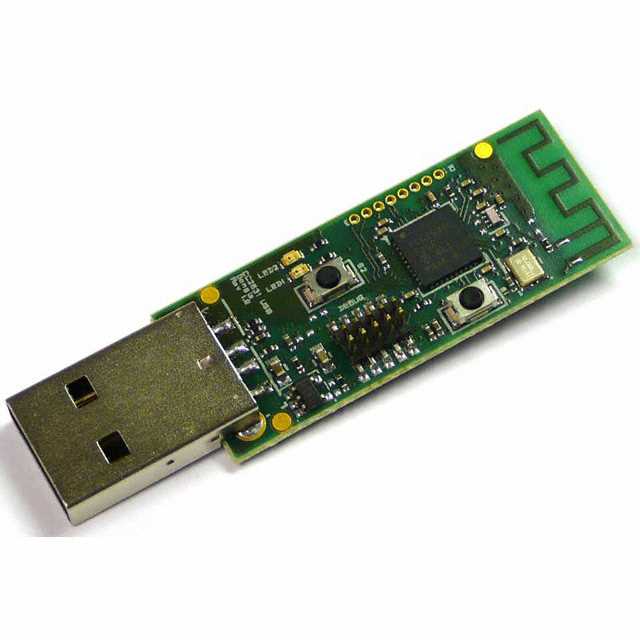

Texas Instruments CC2531EMK	Transceiver	Board(s)	CC2531	2.4 GHz
Texas Instruments CC2531F256RHAT	TxRx + MCU			2.4 GHz	3.6 V	2 V	40-VQFN (6x6)	Zigbee®	250 kbps	Surface Mount	802.15.4	256 kB	8 kB	SPI USART USB	20.5 mA	24.3 mA	-97 dBm	40-VFQFN Exposed Pad	4.5 dBm	21	33.5 mA	28.7 mA	125 °C	-40 °C
Texas Instruments CC2531F256RHAR	TxRx + MCU			2.4 GHz	3.6 V	2 V	40-VQFN (6x6)	Zigbee®	250 kbps	Surface Mount	802.15.4	256 kB	8 kB	SPI USART USB	20.5 mA	24.3 mA	-97 dBm	40-VFQFN Exposed Pad	4.5 dBm	21	33.5 mA	28.7 mA	125 °C	-40 °C

Catalog

Zigbee and IEEE 802.15.4 wireless MCU with up to 256kB Flash and 8kB RAM

Key Features

• RF/Layout2.4-GHz IEEE 802.15.4 Compliant RF TransceiverExcellent Receiver Sensitivity and Robustness to InterferenceProgrammable Output Power Up to 4.5 dBmFew External ComponentsOnly a Single Crystal Needed for Asynchronous Networks6-mm × 6-mm QFN40 PackageSuitable for Systems Targeting Compliance With Worldwide Radio-FrequencyRegulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US),and ARIB STD-T-66 (Japan)USBUSB 2.0 Certified Full Speed Device (12 Mbps)5 Highly Flexible Endpoints1-KB Dedicated FIFODMA Access to FIFONo 48-MHz Crystal RequiredLow PowerActive Mode RX (CPU Idle): 24 mAActive Mode TX at 1 dBm (CPU Idle): 29 mAPower Mode 1 (4 µs Wake-Up): 0.2 mAPower Mode 2 (Sleep Timer Running): 1 µAPower Mode 3 (External Interrupts): 0.4 µAWide Supply-Voltage Range (2 V–3.6 V)MicrocontrollerHigh-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch256-KB or 128-KB In-System-Programmable Flash8-KB RAM With Retention in All Power ModesHardware Debug SupportPeripheralsPowerful Five-Channel DMAIEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit)IR Generation Circuitry32-kHz Sleep Timer With CaptureCSMA/CA Hardware SupportAccurate Digital RSSI/LQI SupportBattery Monitor and Temperature Sensor12-Bit ADC With Eight Channels and Configurable ResolutionAES Security CoprocessorTwo Powerful USARTs With Support for Several Serial Protocols21 General-Purpose I/O Pins(19 × 4 mA, 2 × 20 mA)Watchdog TimerDevelopment ToolsCC2531 Development KitCertified CC2531 USB Dongle Reference DesignSmartRF™ SoftwarePacket SnifferIAR Embedded Workbench® Software AvailableAPPLICATIONSUSB Upgradable 2.4-GHz IEEE 802.15.4 SystemsRF4CE Remote Control Target for TV or STBPC PeripheralsZigBee® SystemsHome/Building AutomationLighting SystemsIndustrial Control and MonitoringLow-Power Wireless Sensor NetworksConsumer ElectronicsHealth CareSmartRF, Z-Stack, RemoTI are trademarks of Texas Instruments.IAR Embedded Workbench is a registered trademark of IAR Systems AB.ZigBee is a registered trademark of ZigBee Alliance.All other trademarks are the property of their respective owners.RF/Layout2.4-GHz IEEE 802.15.4 Compliant RF TransceiverExcellent Receiver Sensitivity and Robustness to InterferenceProgrammable Output Power Up to 4.5 dBmFew External ComponentsOnly a Single Crystal Needed for Asynchronous Networks6-mm × 6-mm QFN40 PackageSuitable for Systems Targeting Compliance With Worldwide Radio-FrequencyRegulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US),and ARIB STD-T-66 (Japan)USBUSB 2.0 Certified Full Speed Device (12 Mbps)5 Highly Flexible Endpoints1-KB Dedicated FIFODMA Access to FIFONo 48-MHz Crystal RequiredLow PowerActive Mode RX (CPU Idle): 24 mAActive Mode TX at 1 dBm (CPU Idle): 29 mAPower Mode 1 (4 µs Wake-Up): 0.2 mAPower Mode 2 (Sleep Timer Running): 1 µAPower Mode 3 (External Interrupts): 0.4 µAWide Supply-Voltage Range (2 V–3.6 V)MicrocontrollerHigh-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch256-KB or 128-KB In-System-Programmable Flash8-KB RAM With Retention in All Power ModesHardware Debug SupportPeripheralsPowerful Five-Channel DMAIEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit)IR Generation Circuitry32-kHz Sleep Timer With CaptureCSMA/CA Hardware SupportAccurate Digital RSSI/LQI SupportBattery Monitor and Temperature Sensor12-Bit ADC With Eight Channels and Configurable ResolutionAES Security CoprocessorTwo Powerful USARTs With Support for Several Serial Protocols21 General-Purpose I/O Pins(19 × 4 mA, 2 × 20 mA)Watchdog TimerDevelopment ToolsCC2531 Development KitCertified CC2531 USB Dongle Reference DesignSmartRF™ SoftwarePacket SnifferIAR Embedded Workbench® Software AvailableAPPLICATIONSUSB Upgradable 2.4-GHz IEEE 802.15.4 SystemsRF4CE Remote Control Target for TV or STBPC PeripheralsZigBee® SystemsHome/Building AutomationLighting SystemsIndustrial Control and MonitoringLow-Power Wireless Sensor NetworksConsumer ElectronicsHealth CareSmartRF, Z-Stack, RemoTI are trademarks of Texas Instruments.IAR Embedded Workbench is a registered trademark of IAR Systems AB.ZigBee is a registered trademark of ZigBee Alliance.All other trademarks are the property of their respective owners.

Description

The CC2531 is a USB enabled true system-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables USB dongles or USB upgradable network nodes to be built with low total bill-of-material costs. The CC2531 combines the performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2531 has various operating modes, making it suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption. Source code for USB HID and CDC libraries and examples are downloadable from the CC2531 product page on www.ti.com. Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack) from Texas Instruments, the CC2531 provides a robust and complete ZigBee USB dongle or firmware upgradable network node. Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2531 provides a robust ZigBee RF4CE remote-control target for USB dongle or TV/STB implementations. The CC2531 is a USB enabled true system-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables USB dongles or USB upgradable network nodes to be built with low total bill-of-material costs. The CC2531 combines the performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2531 has various operating modes, making it suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption. Source code for USB HID and CDC libraries and examples are downloadable from the CC2531 product page on www.ti.com. Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack) from Texas Instruments, the CC2531 provides a robust and complete ZigBee USB dongle or firmware upgradable network node. Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2531 provides a robust ZigBee RF4CE remote-control target for USB dongle or TV/STB implementations.
