055560 Series

Manufacturer: Molex

Catalog

CONN PLUG 34POS SMD GOLD

Part	Mated Stacking Heights	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Height Above Board	Height Above Board	Number of Rows
Molex 0555600347	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	34	Surface Mount	1.14 mm	0.045 in	2

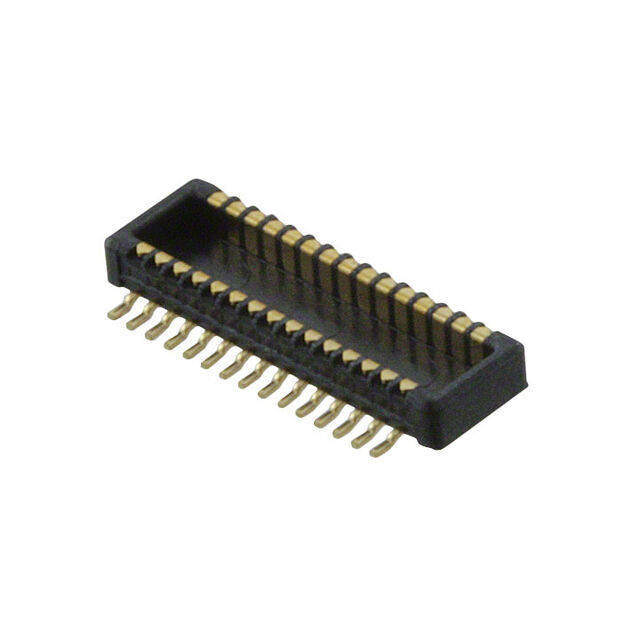

Molex 0555600307	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	30	Surface Mount	1.14 mm	0.045 in	2

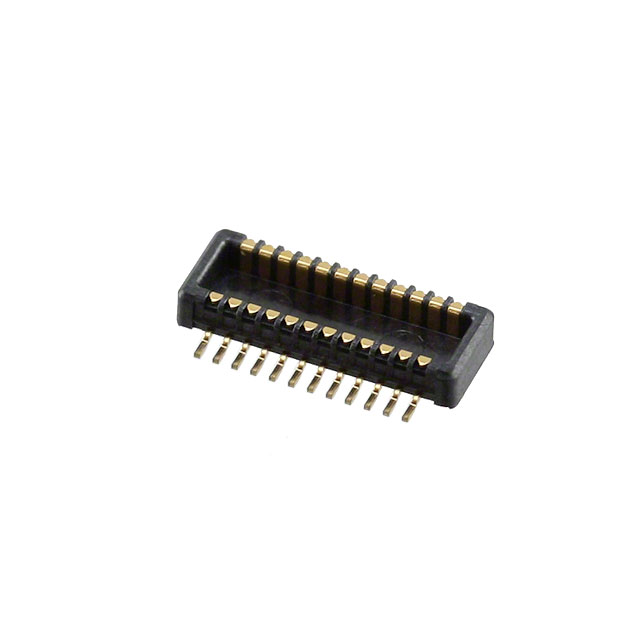

Molex 0555600247	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	24	Surface Mount	1.14 mm	0.045 in	2

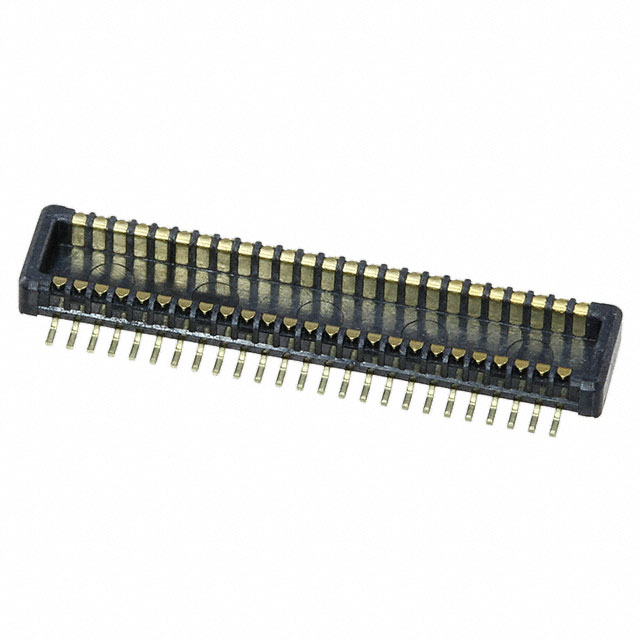

Molex 0555600507	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	50	Surface Mount	1.14 mm	0.045 in	2
Molex 0555600367
Molex 0555600807	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	80	Surface Mount	1.14 mm	0.045 in	2
Molex 0555600207	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	20	Surface Mount	1.14 mm	0.045 in	2

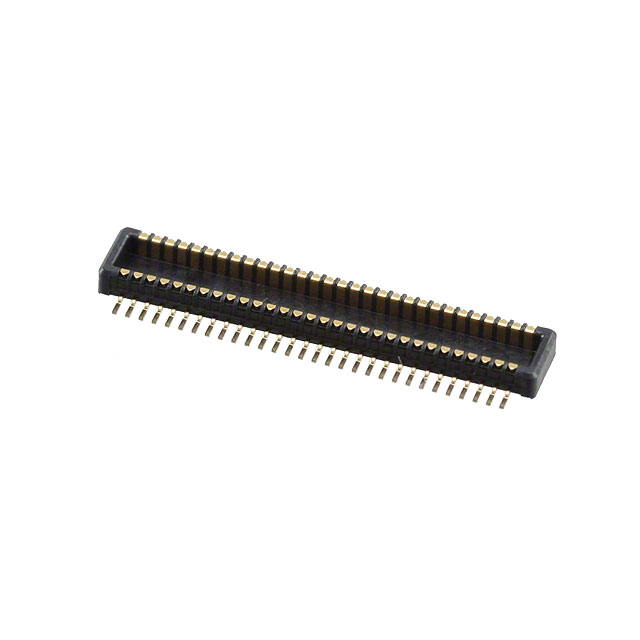

Molex 0555600607	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	60	Surface Mount	1.14 mm	0.045 in	2
Molex 0555600407	1.5 mm	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	0.5 mm	0.02 in	40	Surface Mount	1.14 mm	0.045 in	2
