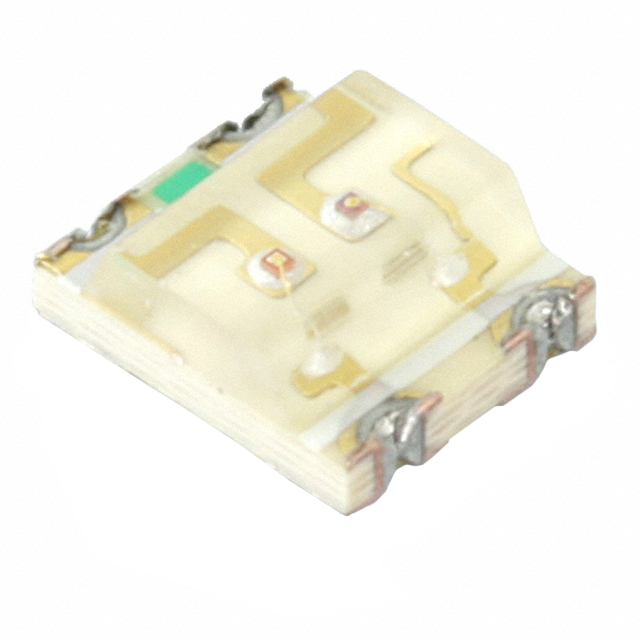

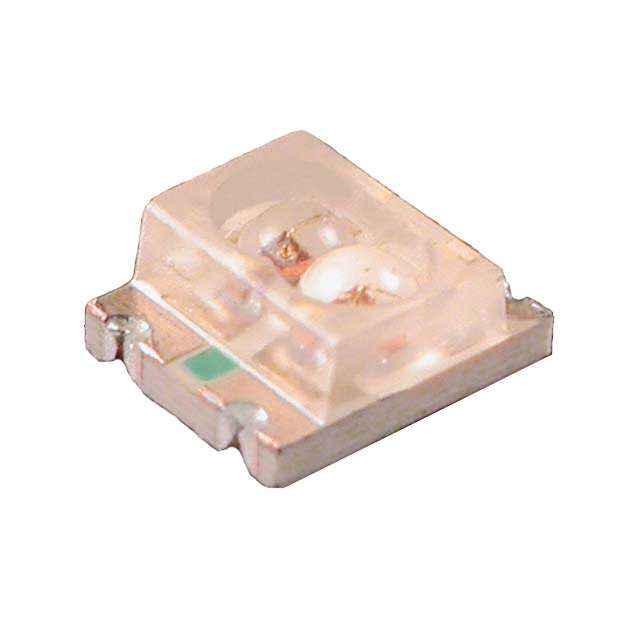

APBL3025 Series

Catalog

LED GREEN/RED CLEAR SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Wavelength - Dominant	Height (Max) [Max] [z]	Supplier Device Package	Millicandela Rating	Mounting Type	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Viewing Angle	Lens Style	Package / Case	Lens Color	Lens Size [x]	Lens Size [y]	Configuration	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak	Current - Test	Package / Case	Current - Test
Kingbright APBL3025ESGC-F01	3 mm	2.5 mm	20 mA	20 mA	565 nm 627 nm	568 nm 617 nm	1.4 mm	SMD	15 mcd 20 mcd	Surface Mount	Green Red	2 V 2.2 V	Clear	100 °	Rectangle with Flat Top	4-SMD No Lead	Colorless	2 mm	2.5 mm	Independent
Kingbright APBL3025SURKCGK-F01	3 mm	2.5 mm	20 mA	20 mA	574 nm 645 nm		1.4 mm	SMD	150 mcd 300 mcd	Surface Mount	Green Red	1.95 V 2.1 V	Clear	50 °	Rectangle with Flat Top	4-SMD No Lead	Colorless	2 mm	2.5 mm	Independent	570nm Green 630nm Red

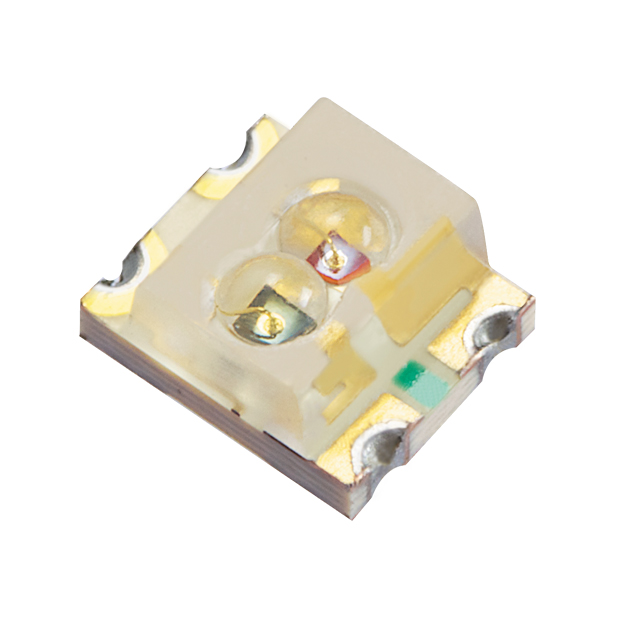

Kingbright APBL3025SYKCGKC-F01	3 mm	2.5 mm				570 nm 590 nm	1.6 mm	4-SMD	120 mcd 150 mcd	Surface Mount	Green Yellow		Clear	100 °	Rectangle with Irregular Top	1210	Colorless	2.5 mm	1.5 mm	Independent		2.1 V	2 V	574nm Green 590nm Yellow	20 mA 20 mA	3225 Metric
Kingbright APBL3025EYC-F01	3 mm	2.5 mm			590 nm 627 nm		1.4 mm	SMD	15 mcd	Surface Mount	Red Yellow	2 V 2.1 V	Clear	100 °	Rectangle with Flat Top	4-SMD No Lead	Colorless	2 mm	2.5 mm	Independent	588nm Yellow 617nm Red				20 mA 20 mA
Kingbright APBL3025YSGC-F01	3 mm	2.5 mm					1.4 mm	SMD	15 mcd 20 mcd	Surface Mount	Green Yellow	2.1 V 2.2 V	Clear	100 °	Rectangle with Flat Top	4-SMD No Lead	Colorless	2 mm	2.5 mm	Independent	568nm Green 588nm Yellow			565nm Green 590nm Yellow	20 mA 20 mA
Kingbright APBL3025NSGC-F01	3 mm	2.5 mm			565 nm 607 nm		1.4 mm	SMD	12 mcd 20 mcd	Surface Mount	Green Orange	2.05 V 2.2 V	Clear	100 °	Rectangle with Flat Top	4-SMD No Lead	Colorless	2 mm	2.5 mm	Independent	568nm Green 610nm Orange						20mA Green 20mA Orange
