GB10S15 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

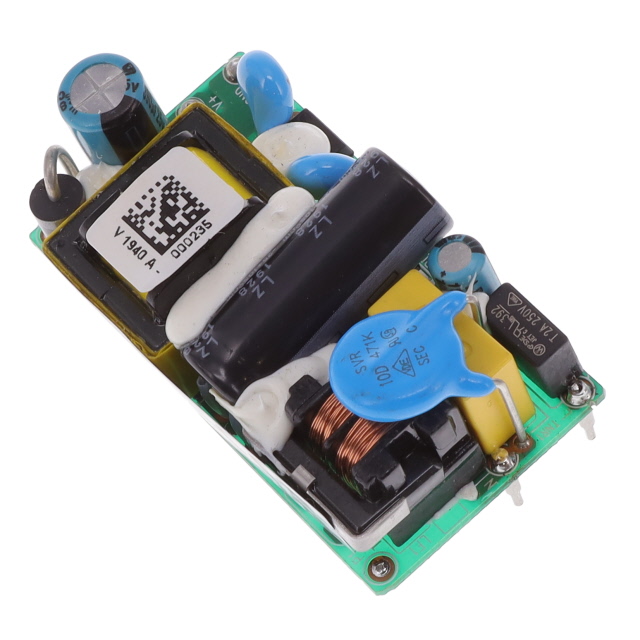

AC/DC CONVERTER 15V 12W
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Approval Agency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Standard Number | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Applications | Power (Watts) | Mounting Type | Type | Features | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 264 VAC | 90 VAC | 88 % | CE cURus DEMKO | 1 | 70 °C | -25 °C | 4000 V | 60601-1; 62368-1 | 15 V | 2.05 in | 52 mm | 1.07 in | 27.3 mm | 18 mm | 0.71 in | ITE (Commercial) Medical | 12 W | Chassis Mount | Open Frame | Universal Input | |
 SL POWER / Advanced Energy | 240 VAC | 100 VAC | 88 % | CE cURus UL | 1 | 70 °C | -25 °C | 4000 V | 15 V | 3.38 in | 85.9 mm | 1.6 in | 40.6 mm | 25.4 mm | 1 in | ITE (Commercial) Medical | 12 W | Chassis Mount | Open Frame | Universal Input |
