1001-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Length - Overall	Length - Overall	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Termination	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 1001-0-15-80-30-84-04-0	-55 C	125 °C	Tin	0.29 in	7.37 mm	Standard Tail	2.54 µm	100 µin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm
Mill-Max Manufacturing Corp. 1001-0-15-15-32-14-04-0	-55 C	125 °C	Gold	0.29 in	7.37 mm	Standard Tail	0.25 Ám	10 Áin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm

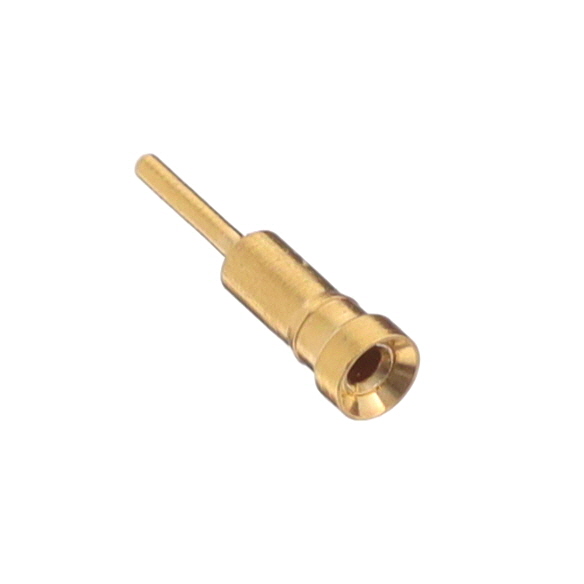

Mill-Max Manufacturing Corp. 1001-0-15-15-30-14-04-0	-55 C	125 °C	Gold	0.29 in	7.37 mm	Standard Tail	0.25 Ám	10 Áin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm
Mill-Max Manufacturing Corp. 1001-0-15-80-30-09-04-0	-55 C	125 °C		0.29 in	7.37 mm	Standard Tail			1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm

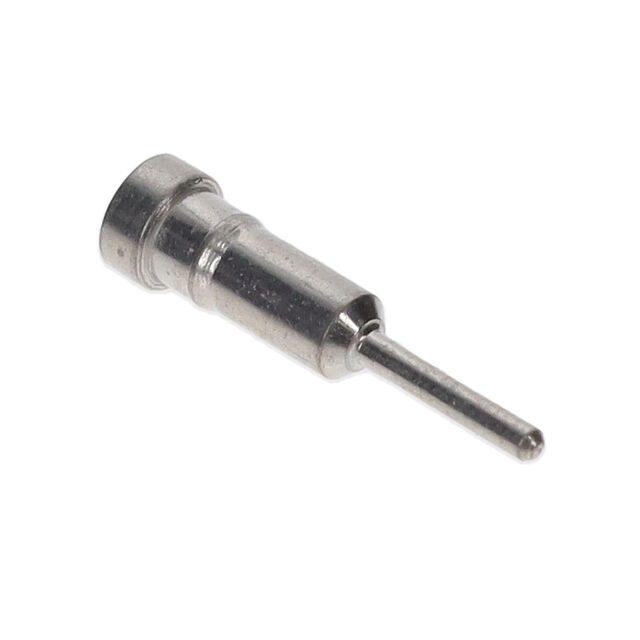

Mill-Max Manufacturing Corp. 1001-0-15-01-30-14-04-0	-55 C	125 °C	Gold	0.29 in	7.37 mm	Standard Tail	0.25 Ám	10 Áin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm
Mill-Max Manufacturing Corp. 1001-0-15-01-32-14-04-0	-55 C	125 °C	Gold	0.29 in	7.37 mm	Standard Tail	0.25 Ám	10 Áin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm

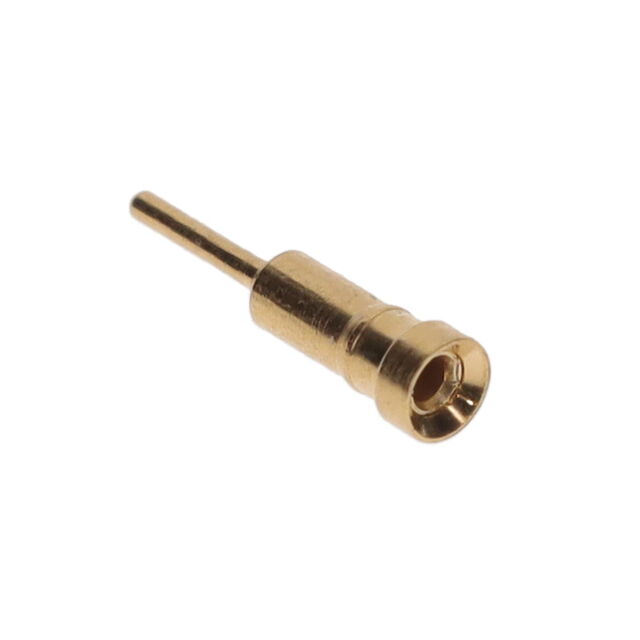

Mill-Max Manufacturing Corp. 1001-0-15-15-30-27-04-0	-55 C	125 °C	Gold	0.29 in	7.37 mm	Standard Tail	0.76 Ám	30 Áin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm

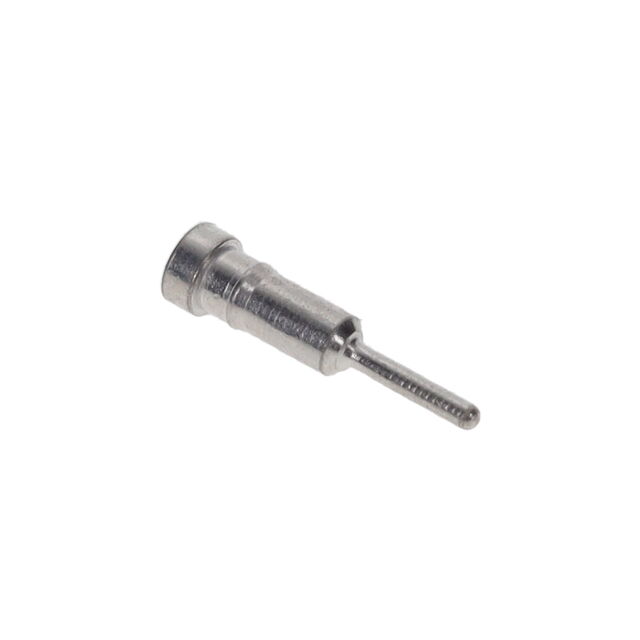

Mill-Max Manufacturing Corp. 1001-0-15-80-32-27-04-0	-55 C	125 °C	Gold	0.29 in	7.37 mm	Standard Tail	0.76 Ám	30 Áin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm
Mill-Max Manufacturing Corp. 1001-0-15-80-32-84-04-0	-55 C	125 °C	Tin	0.29 in	7.37 mm	Standard Tail	2.54 µm	100 µin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm

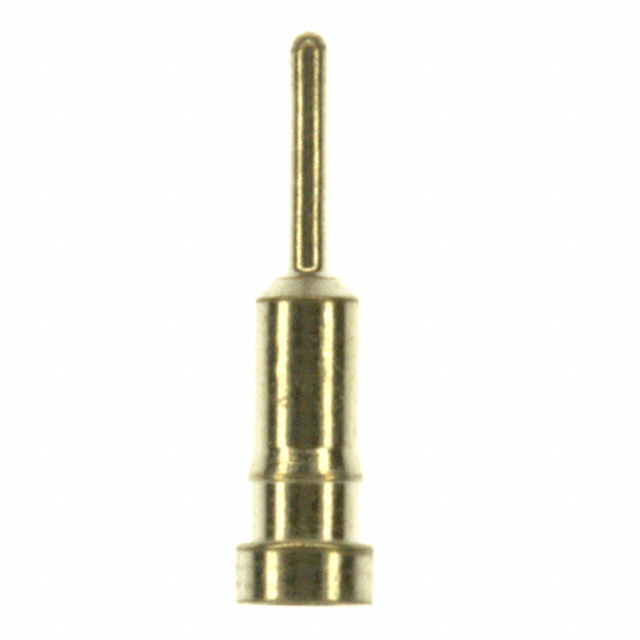

Mill-Max Manufacturing Corp. 1001-0-15-01-30-02-04-0	-55 C	125 °C	Tin-Lead	0.29 in	7.37 mm	Standard Tail	2.54 µm	100 µin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.51 mm	0.02 in	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.146 in	3.71 mm
