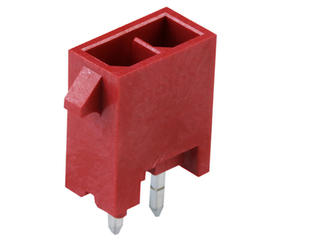

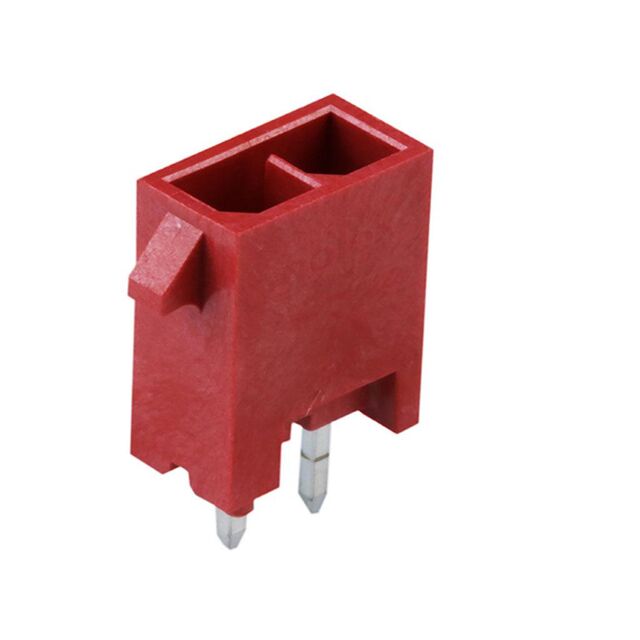

Micro-Fit+ Versa Color Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Red, Tray
Micro-Fit+ Versa Color Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Red, Tray
Micro-Fit+ Versa Color Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 2 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Red, Tray
| Part | Mounting Type | Contact Finish - Post | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Voltage Rating | Shrouding | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Contact Shape | Number of Rows | Number of Positions | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Style | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Termination | Contact Type | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Black | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 4 | Board Guide Pick and Place | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | 0.118 in | 3 mm | All | Solder | Male Pin | Header | |||
 Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Natural | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 8 | Board Guide | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | 0.118 in | 3 mm | All | Solder | Male Pin | Header | 15 µin | 0.38 µm | Gold |
 Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Black | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 6 | Board Guide Pick and Place | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | 0.118 in | 3 mm | All | Solder | Male Pin | Header | |||
 Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Black | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 2 | Board Guide Pick and Place | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | All | Solder | Male Pin | Header | |||||
 Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Black | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 2 | Board Guide Pick and Place | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | All | Solder | Male Pin | Header | |||||
 Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Black | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 6 | Board Guide Pick and Place | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | 0.118 in | 3 mm | All | Solder | Male Pin | Header | |||

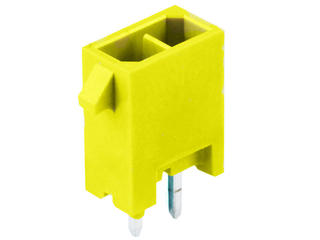

Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Yellow | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 4 | Board Guide | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | 0.118 in | 3 mm | All | Solder | Male Pin | Header | 30 Áin | 0.76 Ám | Gold |
 Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Black | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 6 | Board Guide Pick and Place | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | 0.118 in | 3 mm | All | Solder | Male Pin | Header | |||
Molex | Through Hole | Tin | Locking Ramp | 3.18 mm | 0.125 in | Black | 600 VAC | Shrouded - 4 Wall | 9.91 mm | 0.39 in | UL94 V-0 | Square | 2 | 2 | Board Guide Pick and Place | -40 °C | 105 ░C | Copper Alloy | 3 mm | 0.118 in | Board to Cable/Wire | Varies by Wire Gauge | All | Solder | Male Pin | Header |
