| Part | For Use With/Related Products | Accessory Type | Color | Material | Operating Temperature [Max] | Operating Temperature [Min] | Note | Insert Material | Shell Size - Insert | Shell Material | Features | Ingress Protection | Shielding | Contact Type | Mounting Type | Orientation | Type | Contact Shape | Connector Type | Contact Size | Number of Positions | Mounting Feature | Housing Color | Fastening Type | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Contact Termination | Contact Material | Contact Finish | Shell Size - Insert (Convert From) | Convert To (Adapter End) | Connector Style | Number of Positions (Convert To) [custom] | Number of Positions (Convert To) [custom] | Number of Positions (Convert To) [custom] | Number of Positions (Convert To) | Number of Positions (Convert From) [custom] | Number of Positions (Convert From) [custom] | Number of Positions (Convert From) [custom] | Number of Positions (Convert From) [custom] | Convert From (Adapter End) | Shell Size - Insert (Convert To) | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

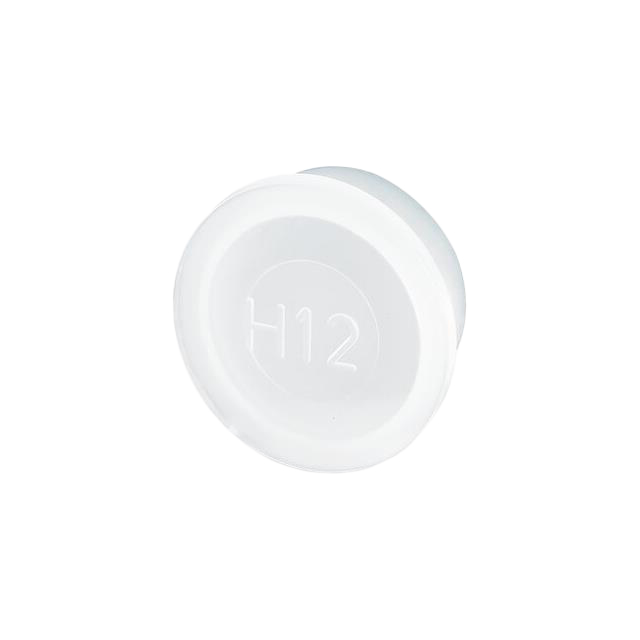

 Phoenix Contact | Circular Power Connector with M40 External Thread | Cap (Cover) Dust | White | Plastic | |||||||||||||||||||||||||||||||||||||||||||
 Phoenix Contact | 125 °C | -40 C | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | M40-6 | Gadolinium-Zinc | Backshell | IP67 - Dust Tight Waterproof | Shielded | Crimp | Free Hanging (In-Line) Panel Mount | N (Normal) | For Male Pins | Circular | Receptacle Housing | 2 mm 3.6 mm | 6 | Flange | Silver | Threaded | |||||||||||||||||||||||||||

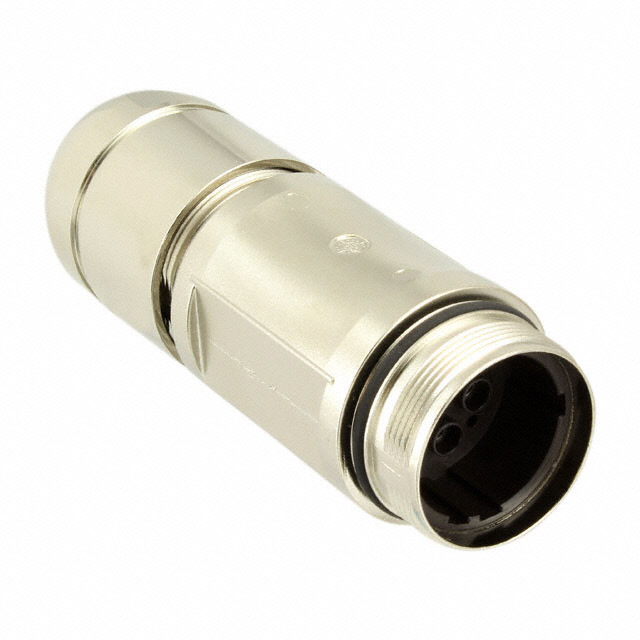

 Phoenix Contact | 125 °C | -40 C | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | M40-6 | Gadolinium-Zinc | Backshell | IP67 - Dust Tight Waterproof | Shielded | Crimp | Free Hanging (In-Line) | N (Normal) | For Male Pins | Circular | Receptacle Housing | 2 mm 3.6 mm | 6 | Silver | Push-Twist | ||||||||||||||||||||||||||||
Phoenix Contact | Pin | Power Machined | 3.6 mm | 2.5 mm˛ | 1 mm˛ | 14 AWG | 18 AWG | 2.5 mm² | 1 mm² | Crimp | Copper Zinc Alloy | Gold | |||||||||||||||||||||||||||||||||||
 Phoenix Contact | 125 °C | -40 C | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | M40-8 | Gadolinium-Zinc | Backshell | IP67 - Dust Tight Waterproof | Shielded | Crimp | Free Hanging (In-Line) | N (Normal) | For Male Pins | Circular | Receptacle Housing | 2 mm 3.6 mm | 8 | Silver | Push-Twist | ||||||||||||||||||||||||||||
 Phoenix Contact | Pin | Power Machined | 3.6 mm | 12 AWG | 14 AWG | 4 mm² | 2.5 mm² | Crimp | Copper Zinc Alloy | Gold | |||||||||||||||||||||||||||||||||||||

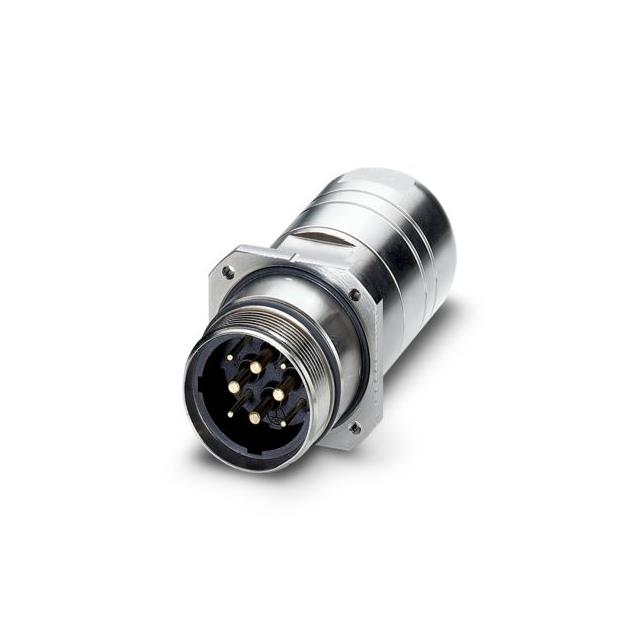

 Phoenix Contact | Coupling Nut | IP67 - Dust Tight Waterproof | Shielded | Panel Mount | Flange | Silver | Threaded | M40 | Male Pins | Standard | 2 | PE | 3 | 6 | PE | 6 | 2 | 3 | Female Sockets | M40 | Zinc Die Cast |
