COAX ADAPT N TO N

Part	Body Material	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Center Contact Material	Adapter Series	Center Gender	Conversion Type	Fastening Type	Convert From (Adapter End)	Frequency - Max	Style	Adapter Type	Center Contact Plating	Impedance	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End) Count	Insertion Loss	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Connector Type	Contact Finish	Connector Style
Cal Test Electronics CT3319	Brass	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	White Bronze	Beryllium Copper Brass	N to N	Female	Same Series	Threaded	Female Socket N Jack	11 GHz	T-Shape	Jack to Jack	Gold	50 Ohm	Free Hanging (In-Line)	Female Socket N Jack	2 count

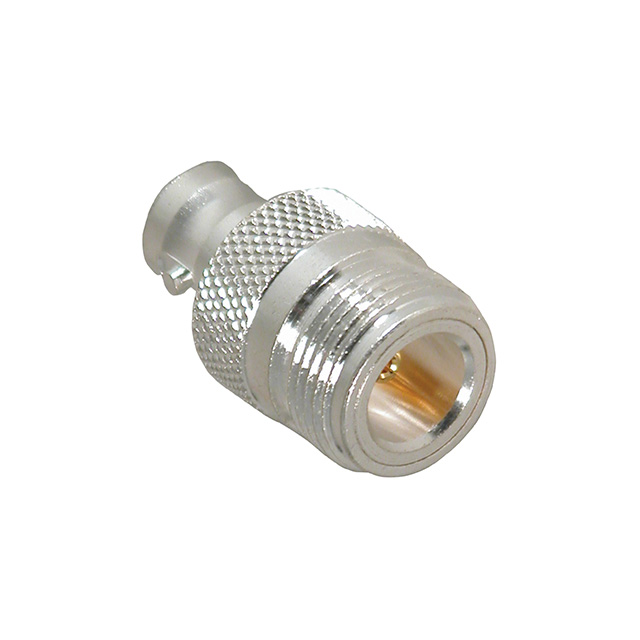

Cal Test Electronics CT2771	Brass	Polytetrafluoroethylene (PTFE)	80 °C	-20 °C	Nickel	Beryllium Copper Brass	BNC to N	Female	Between Series	Bayonet Lock Threaded	BNC Jack Female Socket	4 GHz	Straight	Jack to Jack	Gold	50 Ohm	Free Hanging (In-Line)			0.2 dB	N Jack	Female Socket
Cal Test Electronics CT3344	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-45 °C	White Bronze	Beryllium Copper Brass	BNC to BNC Dual	Female	Same Series	Bayonet Lock	BNC Jack Female Socket	10 GHz	T-Shape	Jack to Jack	Gold	50 Ohm	Free Hanging (In-Line)	BNC Jack Female Socket	2 count

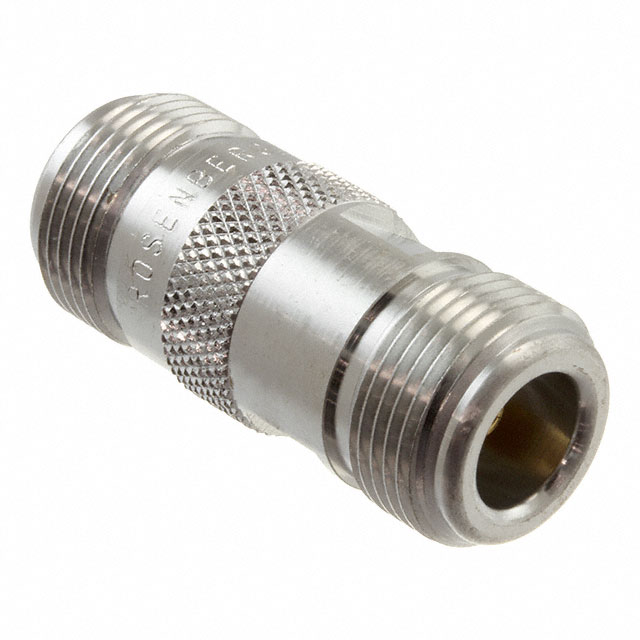

Cal Test Electronics CT3350	Brass	Polytetrafluoroethylene (PTFE)	85 °C	-45 °C	White Bronze	Beryllium Copper Brass	N to N	Female	Same Series	Threaded	Female Socket N Jack	11 GHz	Straight	Jack to Jack	Gold	50 Ohm	Free Hanging (In-Line)				N Jack	Female Socket

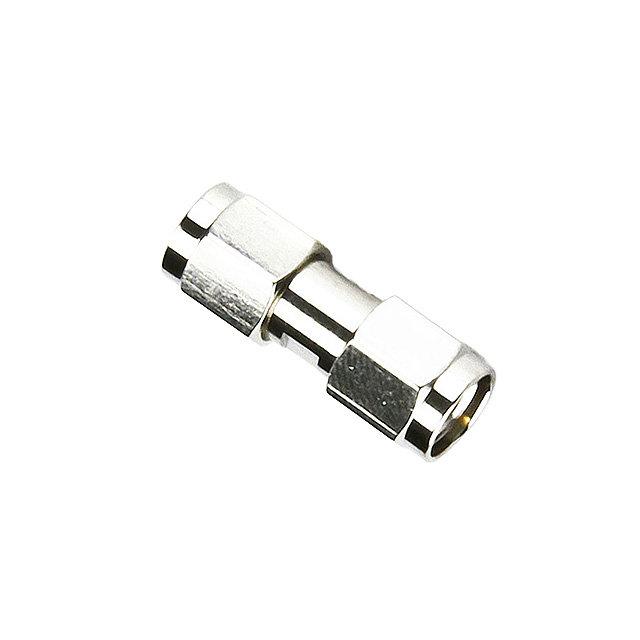

Cal Test Electronics CT3395	Brass	Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Gold	Beryllium Copper Brass	SMA to SMA	Male	Same Series	Threaded	Male Pin SMA Plug	12.4 GHz	Straight	Plug to Plug	Gold	50 Ohm	Free Hanging (In-Line)				SMA Plug	Male Pin

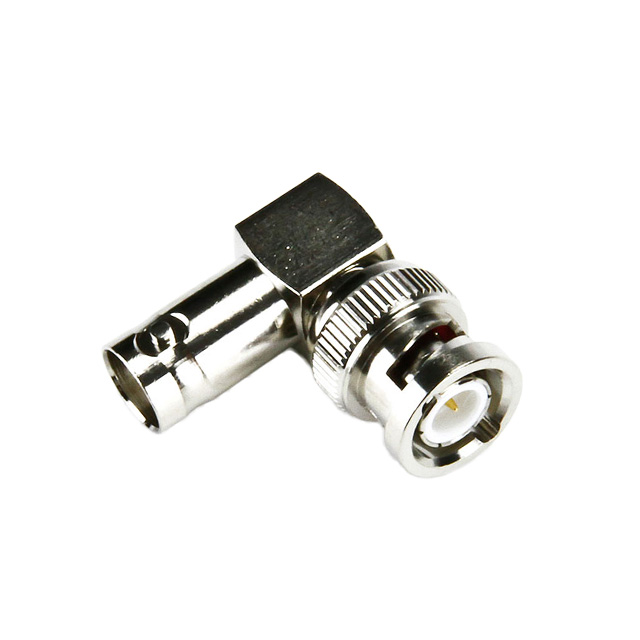

Cal Test Electronics CT3313	Brass	Polytetrafluoroethylene (PTFE)			Nickel	Beryllium Copper Brass	BNC to BNC	Female Male	Same Series	Bayonet Lock	BNC Plug Male Pin	4 GHz	Right Angle	Plug to Jack	Gold	50 Ohm	Free Hanging (In-Line) Right Angle			0.2 dB	BNC Jack	Female Socket
Cal Test Electronics CT3391	Brass	Polytetrafluoroethylene (PTFE)	50 °C	0 °C	Nickel	Beryllium Copper Brass	SMA to N	Female Male	Between Series	Threaded	Male Pin N Plug	11 GHz	Straight	Plug to Jack	Gold	50 Ohm	Free Hanging (In-Line)				SMA Jack	Female Socket

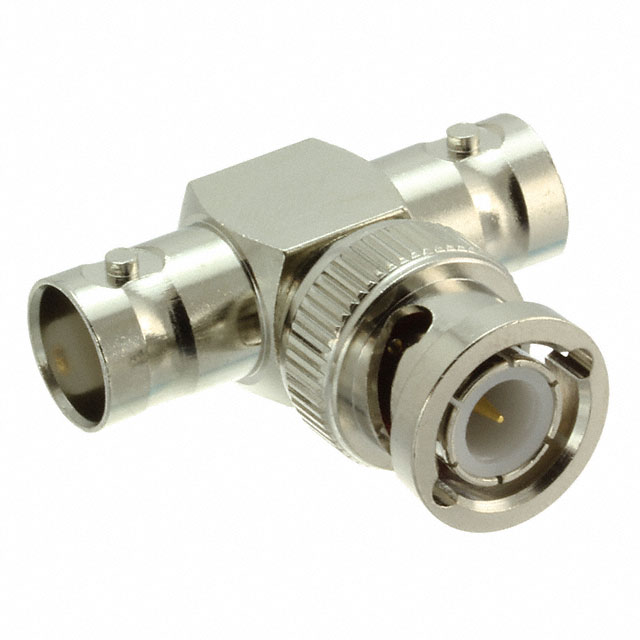

Cal Test Electronics CT2411	Brass	Polytetrafluoroethylene (PTFE)	80 °C	-20 °C	Nickel	Brass	BNC to BNC Dual	Female Male	Same Series	Bayonet Lock	BNC Plug Male Pin	4 GHz	T-Shape	Plug to Jack	Gold	50 Ohm	Free Hanging (In-Line)	BNC Jack Female Socket	2 count	0.2 dB

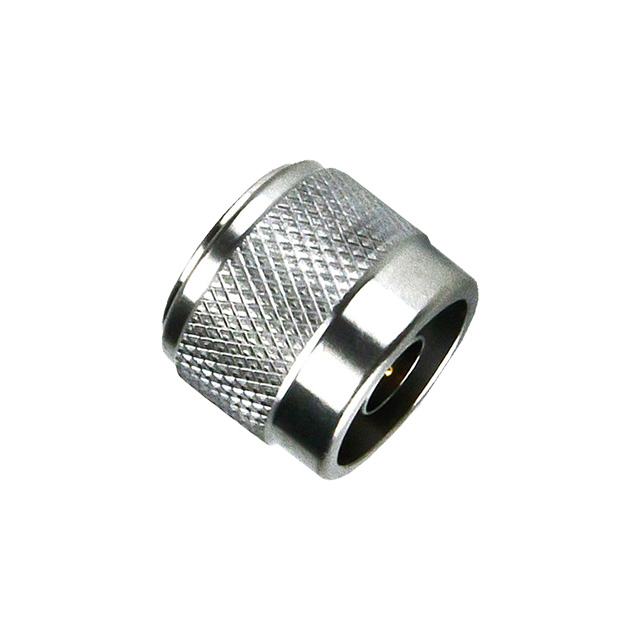

Cal Test Electronics CT3367																50 Ohm	Cap Free Hanging						Male Pin Plug	Gold	N Type

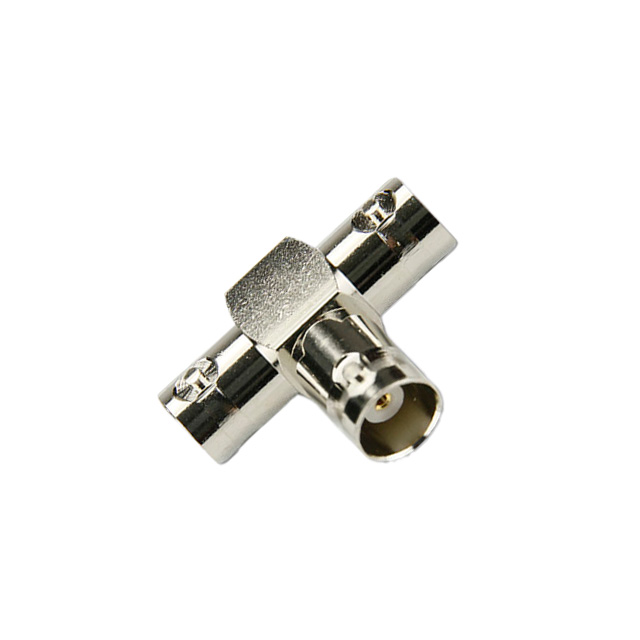

Cal Test Electronics CT3312	Brass	Polytetrafluoroethylene (PTFE)	80 °C	-20 °C	Nickel	Beryllium Copper Brass	BNC to BNC Dual	Female	Same Series	Bayonet Lock	BNC Jack Female Socket	4 GHz	T-Shape	Jack to Jack	Gold	50 Ohm	Free Hanging (In-Line)	BNC Jack Female Socket	2 count	0.2 dB
