SA24604 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

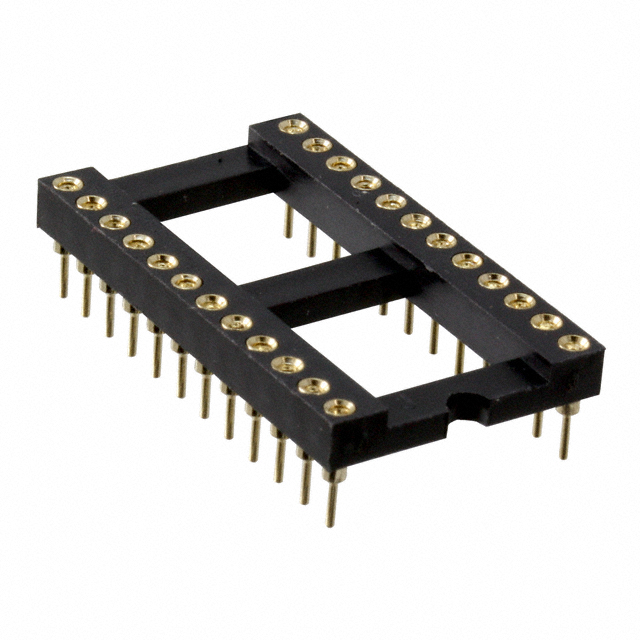

CONN IC DIP SOCKET 24POS GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Features | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Contact Finish - Mating | Contact Material - Post [custom] | Termination | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Post | Pitch - Post | Mounting Type | Contact Material - Mating | Type [custom] | Type [custom] | Type | Pitch - Mating | Pitch - Mating | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 3 A | 4 mOhm | 2.03 µm | 80 µin | Gold | Open Frame | 12 | 2 | 24 | Gold | Brass | Solder | Flash | -40 C | 105 ░C | 0.1 in | 2.54 mm | Through Hole | Beryllium Copper | 15.24 mm | 0.6 in | DIP | 0.1 " | 2.54 mm | Glass Filled Polyester Thermoplastic |
