SDTA39 Series
Manufacturer: ChromeLED
Beta
⌘K

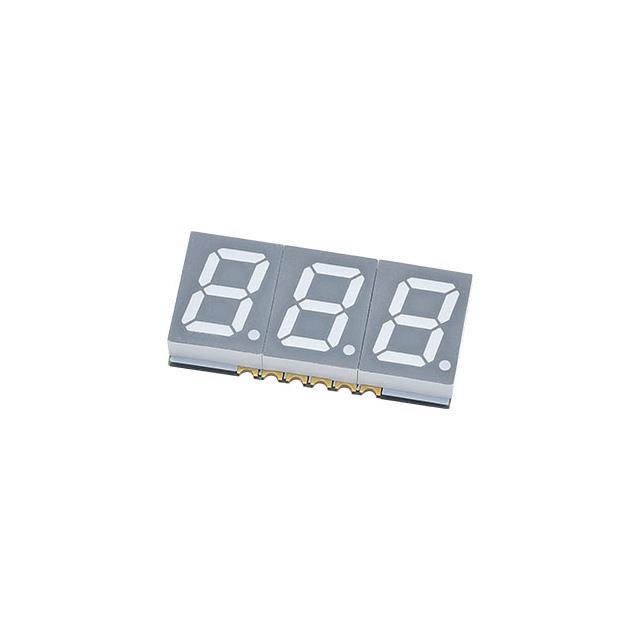

DISPLAY 7SEG 0.39" TRI RED 12SMD
| Part | Color | Digit/Alpha Size | Digit/Alpha Size | Voltage - Forward (Vf) (Typ) | Package / Case | Current - Test | Common Pin | Wavelength - Peak | Power Dissipation (Max) [Max] | Display Type | Millicandela Rating | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Number of Characters | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ChromeLED | Red | 10 mm | 0.39 in | 1.8 V | 12-SMD No Lead | 20 mA | Common Anode | 644 nm | 70 mW | 7-Segment | 20 mcd | 29.7 mm | 1.169 in | 13 mm | 3.75 mm | 0.148 in | 0.512 " | 3 | |
ChromeLED | Blue | 10 mm | 0.39 in | 2.8 V | 12-SMD No Lead | 5 mA | Common Anode | 470 nm | 7-Segment | 30 mcd | 29.7 mm | 1.169 in | 13 mm | 3.75 mm | 0.148 in | 0.512 " | 3 | 120 mW | |
ChromeLED | Green | 10 mm | 0.39 in | 3.2 V | 12-SMD No Lead | 20 mA | Common Anode | 525 nm | 7-Segment | 130 mcd | 29.7 mm | 1.169 in | 13 mm | 3.75 mm | 0.148 in | 0.512 " | 3 | 120 mW |
