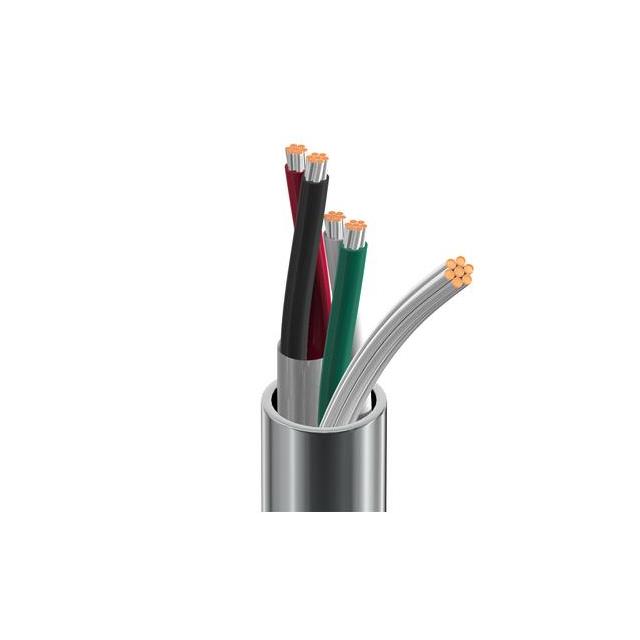

8722 Series
Manufacturer: Belden Inc.
Beta
⌘K
2#20 FS PVC,2#20 PVC PVC
| Part | Shield Coverage | Shield Material | Cable Type | Number of Conductors | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Insulation | Wire Gauge | Usage | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Type | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Multi-Pair | 4 | Copper Tinned | 80 °C | -20 ░C | 28 AWG | 7 | 300 VDC | Chrome | 5.87 mm | 0.231 in | UL Style CMG | Poly-Vinyl Chloride (PVC) | 20 AWG | Audio Control Instrumentation | 152.4 m | 500 ft | 0.028 in | 0.711 mm | Drain Wire | Foil | Poly-Vinyl Chloride (PVC) |
Belden Inc. | 100 % | Aluminum Polyester | Multi-Pair | 4 | Copper Tinned | 80 °C | -20 ░C | 28 AWG | 7 | 300 VDC | Chrome | 5.87 mm | 0.231 in | UL Style CMG | Poly-Vinyl Chloride (PVC) | 20 AWG | Audio Control Instrumentation | 304.8 m | 1000 ft | 0.028 in | 0.711 mm | Drain Wire | Foil | Poly-Vinyl Chloride (PVC) |
