09140063 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 6 CONTACTS, RECEPTACLE

Part	Color	Housing Material	Material Flammability Rating	Gender	Voltage Rating	Termination Style	Connector Type	Number of Positions	Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
HARTING 09140063121	Gray	Polycarbonate (PC)	UL94 V-0	Female	400 V	Crimp	Module without Contacts	6	Han® D Han® E	10 A 16 A	125 °C	-40 C
HARTING 09140063101	Gray	Polycarbonate (PC)	UL94 V-0	Female	600 V	Crimp	Module without Contacts	6	Han®	16 A	125 °C	-40 C

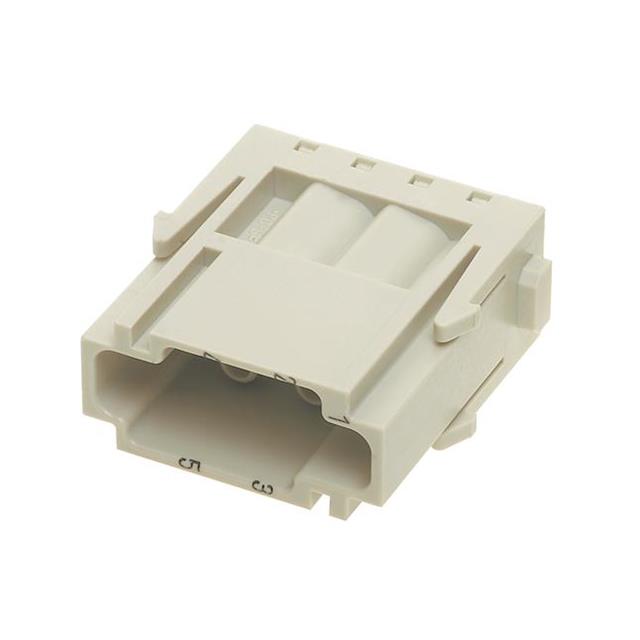

HARTING 09140063001	Gray	Polycarbonate (PC)	UL94 V-0	Male	600 V	Crimp	Module without Contacts	6	Han®	16 A	125 °C	-40 C

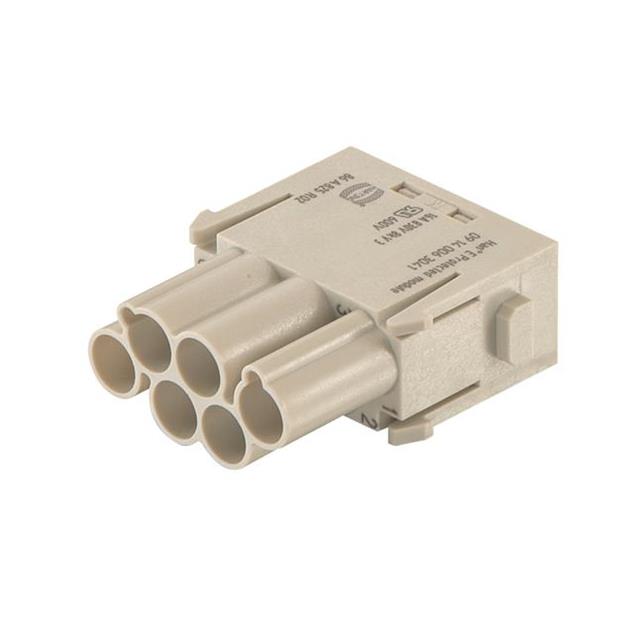

HARTING 09140063041	Gray	Polycarbonate (PC)	UL94 V-0	Male	600 V	Crimp	Module without Contacts	6	Han®	16 A	125 °C	-40 C

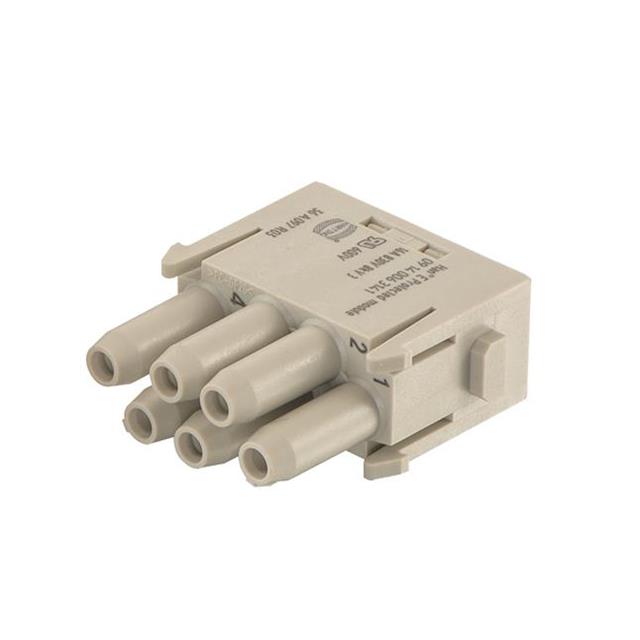

HARTING 09140063141	Gray	Polycarbonate (PC)	UL94 V-0	Female	600 V	Crimp	Module without Contacts	6	Han®	16 A	125 °C	-40 C
