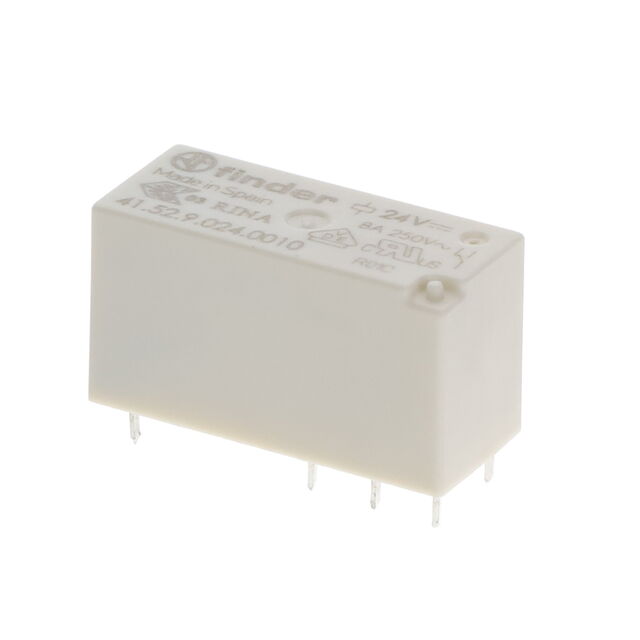

41.52.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 12V
| Part | Coil Resistance | Contact Form | Release Time | Contact Rating (Current) | Must Release Voltage | Contact Material | Switching Voltage [Max] | Coil Current | Load - Max Switching | Coil Type | Coil Voltage | Termination Style | Mounting Type | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Must Operate Voltage | Approval Agency | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 360 Ohms | DPDT (2 Form C) | 6 ms | 8 A | 1.8 VDC | Silver Nickel (AgNi) | 400 VAC | 33.3 mA | 3200 VA | Non Latching | 12 VDC | PC Pin | Through Hole | General Purpose | 85 °C | -40 C | 8 ms | 8.4 VDC | cURus EAC ENEC RINA VDE | |
 Finder Relays, Inc. | 1440 Ohms | DPDT (2 Form C) | 6 ms | 8 A | 3.6 VDC | Silver Nickel (AgNi) | 400 VAC | 16.7 mA | 3200 VA | Non Latching | 24 VDC | PC Pin | Through Hole | General Purpose | 85 °C | -40 C | 8 ms | 16.8 VDC | cURus EAC ENEC RINA VDE | |
 Finder Relays, Inc. | 1440 Ohms | DPDT (2 Form C) | 6 ms | 8 A | 3.6 VDC | Gold (Au) Silver Nickel (AgNi) | 400 VAC | 16.7 mA | 3200 VA | Non Latching | 24 VDC | PC Pin | Through Hole | General Purpose | 85 °C | -40 C | 8 ms | 16.8 VDC | cURus EAC ENEC RINA VDE | Sealed - Flux Protection |
Finder Relays, Inc. | 360 Ohms | DPDT (2 Form C) | 6 ms | 8 A | 1.8 VDC | Silver Nickel (AgNi) | 400 VAC | 33.3 mA | 3200 VA | Non Latching | 12 VDC | PC Pin | Through Hole | General Purpose | 85 °C | -40 C | 8 ms | 8.4 VDC | cURus EAC ENEC RINA VDE | Sealed - Flux Protection |
 Finder Relays, Inc. | 1440 Ohms | DPDT (2 Form C) | 6 ms | 8 A | 3.6 VDC | Silver Nickel (AgNi) | 400 VAC | 16.7 mA | 3200 VA | Non Latching | 24 VDC | PC Pin | Through Hole | General Purpose | 85 °C | -40 C | 8 ms | 16.8 VDC | cURus EAC ENEC RINA VDE | Sealed - Flux Protection |
Finder Relays, Inc. | 24.2 kOhms | DPDT (2 Form C) | 6 ms | 8 A | 16.5 VDC | Silver Nickel (AgNi) | 400 VAC | 4.5 mA | 3200 VA | Non Latching | 110 VDC | PC Pin | Through Hole | General Purpose | 85 °C | -40 C | 8 ms | 77 VDC | cURus EAC ENEC RINA VDE | Sealed - Flux Protection |
Finder Relays, Inc. | 360 Ohms | DPDT (2 Form C) | 6 ms | 8 A | 1.8 VDC | Gold (Au) Silver Nickel (AgNi) | 400 VAC | 33.3 mA | 3200 VA | Non Latching | 12 VDC | PC Pin | Through Hole | General Purpose | 85 °C | -40 C | 8 ms | 8.4 VDC | cURus EAC ENEC RINA VDE | Sealed - Flux Protection |
