T85 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

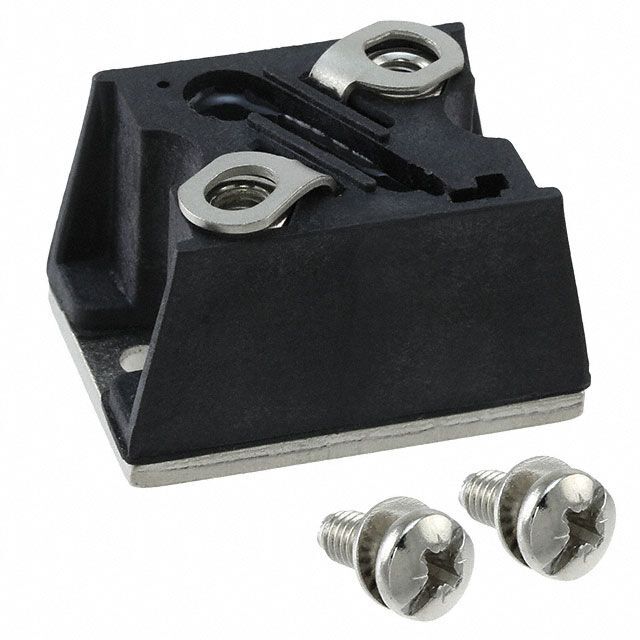

DIODE GEN PURP 200V 85A D-55

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Mounting Type	Current - Average Rectified (Io)	Supplier Device Package	Speed	Current - Reverse Leakage @ Vr	Technology	Package / Case	Speed
Vishay General Semiconductor - Diodes Division VS-T85HFL20S05	200 V	500 ns	Chassis Mount	85 A	D-55	200 mA 500 ns	20 mA	Standard	D-55 T-Module
Vishay General Semiconductor - Diodes Division VS-T85HF10	100 V		Chassis Mount	85 A	D-55	200 mA	20 mA	Standard	D-55 T-Module	Standard Recovery >500ns
Vishay General Semiconductor - Diodes Division VS-T85HF80	800 V		Chassis Mount	85 A	D-55	200 mA	20 mA	Standard	D-55 T-Module	Standard Recovery >500ns
Vishay General Semiconductor - Diodes Division VS-T85HF40	400 V		Chassis Mount	85 A	D-55	200 mA	20 mA	Standard	D-55 T-Module	Standard Recovery >500ns
Vishay General Semiconductor - Diodes Division VS-T85HF20	200 V		Chassis Mount	85 A	D-55	200 mA	20 mA	Standard	D-55 T-Module	Standard Recovery >500ns
Vishay General Semiconductor - Diodes Division VS-T85HF100	1000 V		Chassis Mount	85 A	D-55	200 mA	20 mA	Standard	D-55 T-Module	Standard Recovery >500ns
Vishay General Semiconductor - Diodes Division VS-T85HFL80S05	800 V	500 ns	Chassis Mount	85 A	D-55	200 mA 500 ns	20 mA	Standard	D-55 T-Module
Vishay General Semiconductor - Diodes Division VS-T85HF120	200 V		Chassis Mount	85 A	D-55	200 mA	20 mA	Standard	D-55 T-Module	Standard Recovery >500ns
Vishay General Semiconductor - Diodes Division VS-T85HFL40S02	400 V	200 ns	Chassis Mount	85 A	D-55	200 mA 500 ns	20 mA	Standard	D-55 T-Module
Vishay General Semiconductor - Diodes Division VS-T85HFL60S02	600 V	200 ns	Chassis Mount	85 A	D-55	200 mA 500 ns	20 mA	Standard	D-55 T-Module
