FUSE 125V MITI LBC MA 5X20MM 5A
Description
AI

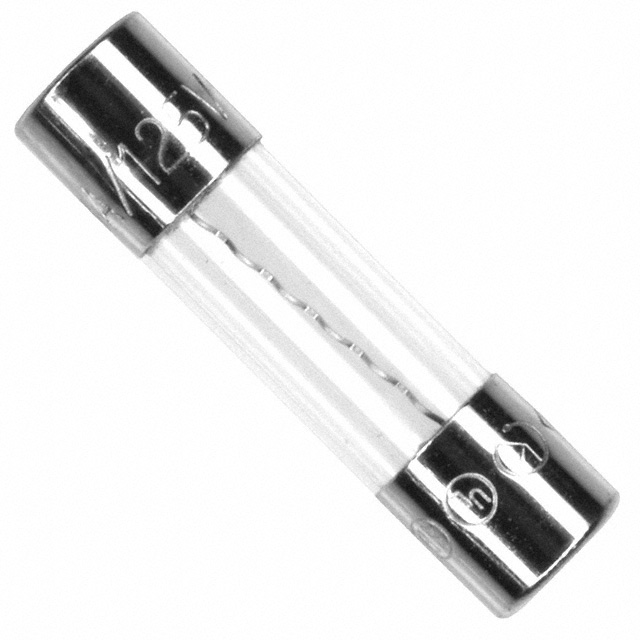

5X20mm medium-acting glass body cartridge fuse designed to Meti B Standard.
Beta
⌘K
FUSE 125V MITI LBC MA 5X20MM 5A
FUSE 125V MITI LBC MA 5X20MM 5A
| Part | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Mounting Type | Fuse Type | Response Time | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case [y] | Package / Case | Package / Case [x] | Voltage Rating - AC | Melting I²t | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 5 A | 100 A | Through Hole | Cartridge Glass | Medium Blow | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | -55 C | 125 °C | 20 mm | Axial | 5 mm | 250 V | 56.72 | |
LITTELFUSE | 5 A | Through Hole | Cartridge Glass | Medium Blow | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | -55 C | 125 °C | 20 mm | Axial | 5 mm | 125 V | 56.72 | ||
LITTELFUSE | 5 A | Requires Holder | Cartridge Glass | Medium Blow | 20 mm | 5.2 mm | 0.205 in | 0.787 " | -55 C | 125 °C | 20 mm | 5 mm | 125 V | 56.72 | 0.0134 Ohms |
