EDS08 Series

Catalog

SWITCH: DIP-SWITCH; POLES NUMBER: 8; OFF-ON; 0.025A/24VDC; POS: 2

Part	Length	Length	Body Material	Mechanical Life	Electrical Life	Washable	Circuit	Number of Positions	Mounting Type	Actuator Level	Pitch	Pitch	Current Rating (Amps)	Voltage Rating	Contact Finish	Contact Material	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board

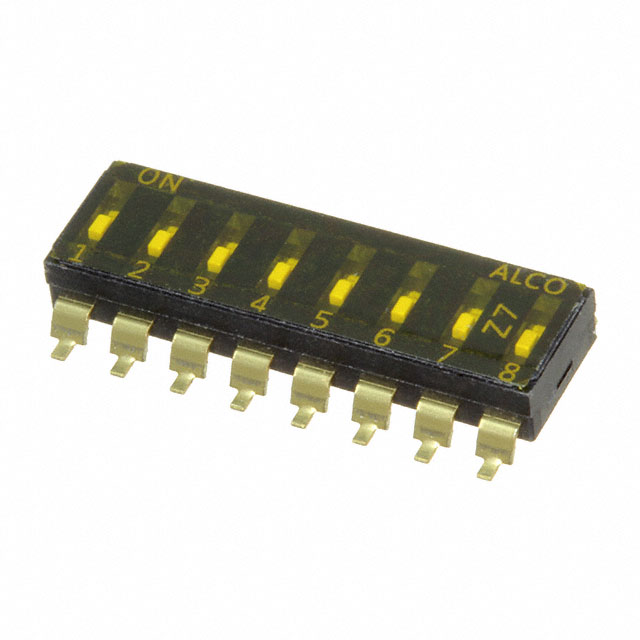

TE Connectivity AMP Connectors EDS08SGRSTU04Q	0.796 in	20.22 mm	Polyamide (PA) Nylon	2000 Cycles	2000 Steps		SPST	8	Surface Mount	Flush Recessed	2.54 mm	0.1 "	25 mA	24 VDC	Gold	Copper Alloy	Slide (Standard)	Gull Wing	85 °C	-20 ░C	3.4 mm	0.134 in
TE Connectivity AMP Connectors EDS08SGRNTU04Q	0.796 in	20.22 mm	Polyamide (PA) Nylon	2000 Cycles	2000 Steps		SPST	8	Surface Mount	Flush Recessed	2.54 mm	0.1 "	25 mA	24 VDC	Gold	Copper Alloy	Slide (Standard)	Gull Wing	85 °C	-20 ░C	3.4 mm	0.134 in
