sek-low-profile Series

Manufacturer: HARTING

Catalog

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,16 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL

...

Part	Features	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Rows [custom]	Shrouding	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Fastening Type	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions	Insulation Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Cable Termination	Board-Side Pitch	Board-Side Pitch	Row Spacing	Row Spacing	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating

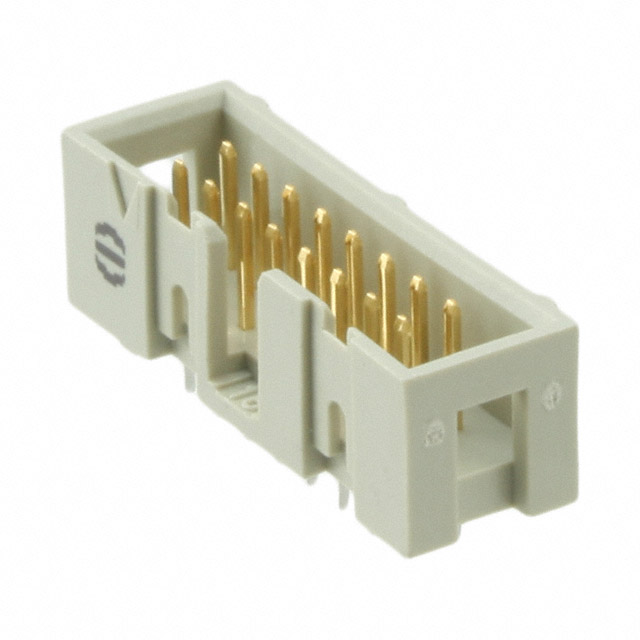

HARTING 09185166321	Keying Slot	Right Angle Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header	UL94 V-0	9.3 mm	0.366 "	0.24 in	6.1 mm	Gold	4.5 mm	0.177 in	Male Pin	Gray	-55 C	125 °C	All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm	Copper Alloy	16	Polybutylene Terephthalate (PBT) Glass Filled
HARTING 09185065321	Keying Slot	Right Angle Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header	UL94 V-0	9.3 mm	0.366 "	0.24 in	6.1 mm	Gold	4.5 mm	0.177 in	Male Pin	Gray	-55 C	125 °C	All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm	Copper Alloy	6	Polybutylene Terephthalate (PBT) Glass Filled	Tin	0.76 Ám	30 Áin

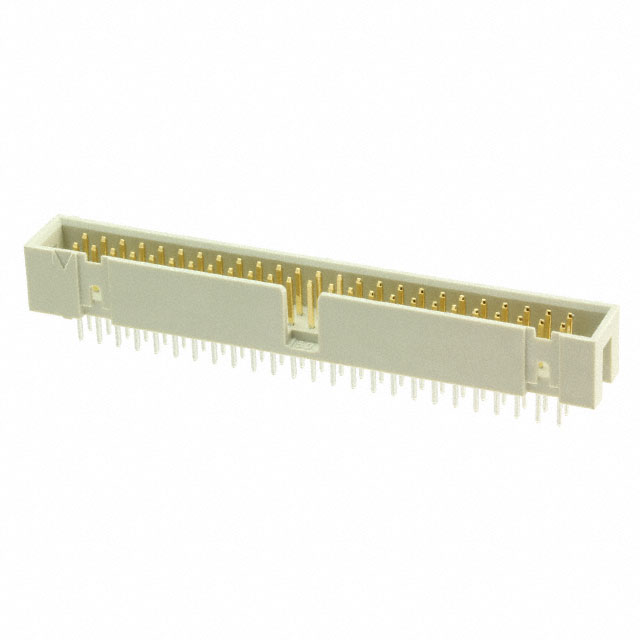

HARTING 09185505322	Keying Slot	Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header	UL94 V-0	0.35 in		0.24 in	6.1 mm	Gold	4.5 mm	0.177 in	Male Pin	Gray	-55 C	125 °C	All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm	Copper Alloy	50	Polybutylene Terephthalate (PBT) Glass Filled	Tin	0.76 Ám	30 Áin	8.89 mm
HARTING 09181209422	Feed Through	Kinked Pin Through Hole				2		DIP Header Ribbon Cable																				20						IDC	2.54 mm	0.1 "	2.54 mm	0.1 "

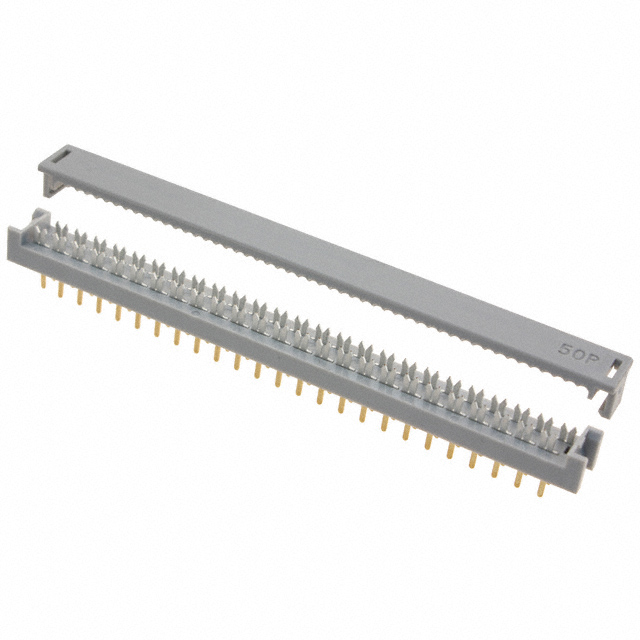

HARTING 09181509622	Feed Through	Through Hole				2		DIP Header Ribbon Cable													All							50						IDC	2.54 mm	0.1 "	2.54 mm	0.1 "
HARTING 09185306324	Keying Slot	Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header	UL94 V-0	0.35 in		0.24 in	6.1 mm	Gold			Male Pin	Gray	-55 C	125 °C	All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm	Copper Alloy	30	Polybutylene Terephthalate (PBT) Glass Filled	Tin			8.89 mm						0.114 in	2.9 mm
HARTING 09185305324	Keying Slot	Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header	UL94 V-0	0.35 in		0.24 in	6.1 mm	Gold			Male Pin	Gray	-55 C	125 °C	All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm	Copper Alloy	30	Polybutylene Terephthalate (PBT) Glass Filled	Tin	0.76 Ám	30 Áin	8.89 mm						0.114 in	2.9 mm
HARTING 09185307324	Keying Slot	Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header	UL94 V-0	0.35 in				Gold			Male Pin	Gray	-55 C	125 °C	All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm	Copper Alloy	30	Polybutylene Terephthalate (PBT) Glass Filled	Tin			8.89 mm						0.114 in	2.9 mm	0.242 in	6.15 mm
HARTING 09195406324	Keying Slot	Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header	UL94 V-0	0.35 in		0.24 in	6.1 mm				Male Pin	Beige	-55 C	125 °C	All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm	Copper Alloy	40	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Tin			8.89 mm						0.114 in	2.9 mm
HARTING 09185206324001	Keying Slot	Through Hole	0.1 "	2.54 mm	Square	2	Shrouded - 4 Wall	Header		0.35 in		0.24 in	6.1 mm				Male Pin	Black			All	Solder	Latch Holder	Board to Cable/Wire	0.1 in	2.54 mm		20					8.89 mm						0.114 in	2.9 mm
