ECW-F2334 Series

Catalog

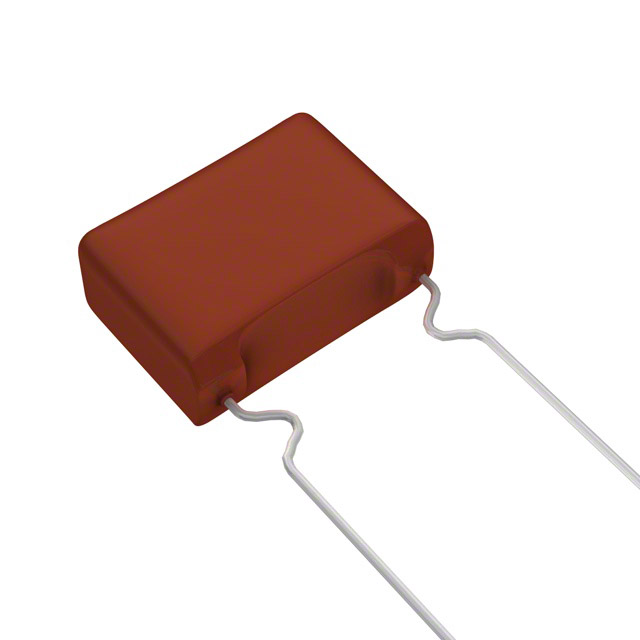

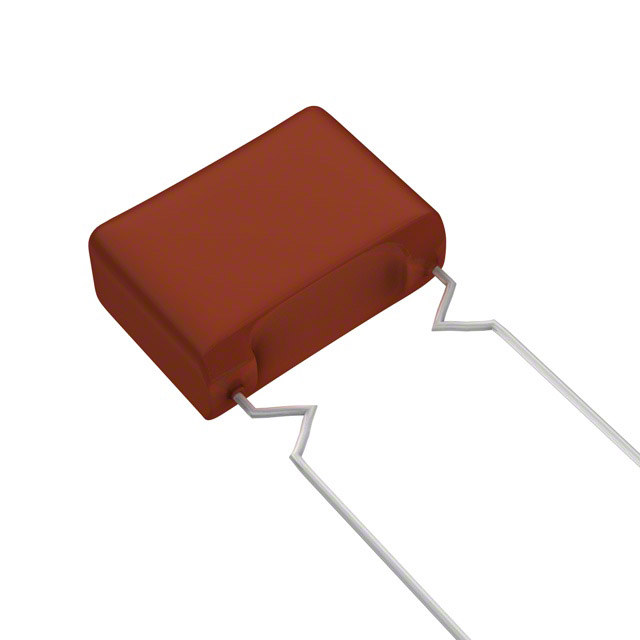

CAP FILM 0.33UF 5% 250VDC RADIAL

Part	Mounting Type	Applications	Voltage Rating - AC	Capacitance	Dielectric Material	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECW-F2334JAQ	Through Hole	High Frequency Switching	125 V	0.33 µF	Metallized Polypropylene (PP)	0.394 in	10 mm	0.705 "	17.9 mm	250 V	0.512 in	7.3 mm	13 mm	0.287 in	-40 °C	105 ░C	Radial	5 %	PC Pins
Panasonic Industrial Automation Sales ECW-F2334JB	Through Hole	High Frequency Switching		0.33 µF	Metallized Polypropylene (PP)	0.591 in	15 mm			250 V	0.709 in	8.5 mm	18 mm	0.335 in	-25 °C	85 °C	Radial	5 %	PC Pins	16.5 mm	16.51 mm
Panasonic Industrial Automation Sales ECW-F2334HAB	Through Hole	High Frequency Switching		0.33 µF	Metallized Polypropylene (PP)	0.295 in	7.5 mm	0.705 "	17.9 mm	250 V	0.512 in	7.3 mm	13 mm	0.287 in	-40 °C	105 ░C	Radial	3 %	PC Pins
Panasonic Industrial Automation Sales ECW-F2334HAQ	Through Hole	High Frequency Switching		0.33 µF	Metallized Polypropylene (PP)	0.394 in	10 mm	0.705 "	17.9 mm	250 V	0.512 in	7.3 mm	13 mm	0.287 in	-40 °C	105 ░C	Radial	3 %	PC Pins
