THS4631 Series

Catalog

HIGH SPEED FET-INPUT OPERATIONAL AMPLIFIER

Part	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input Offset	-3db Bandwidth	Supplier Device Package	Current - Input Bias	Current - Supply	Mounting Type	Voltage - Supply Span (Min) [Min]	Slew Rate	Package / Case	Package / Case [y]	Package / Case [x]	Gain Bandwidth Product	Voltage - Supply Span (Max) [Max]	Amplifier Type	Current - Output / Channel [custom]	Package / Case [custom]	Board Type	Output Type	Supplied Contents	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Channels per IC	Current - Supply (Main IC)	Utilized IC / Part
Texas Instruments THS4631D	1	85 °C	-40 °C	260 µV	325 MHz	8-SOIC	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-SOIC	3.9 mm	0.154 in	210 MHz	30 V	General Purpose	98 mA
Texas Instruments THS4631DG4	1	85 °C	-40 °C	260 µV	325 MHz	8-SOIC	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-SOIC	3.9 mm	0.154 in	210 MHz	30 V	General Purpose
Texas Instruments THS4631DR	1	85 °C	-40 °C	260 µV	325 MHz	8-SOIC	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-SOIC	3.9 mm	0.154 in	210 MHz	30 V	General Purpose
Texas Instruments THS4631DGN	1	85 °C	-40 °C	260 µV	325 MHz	8-HVSSOP	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-MSOP 8-TSSOP Exposed Pad			210 MHz	30 V	General Purpose	98 mA	0.118 in 3 mm

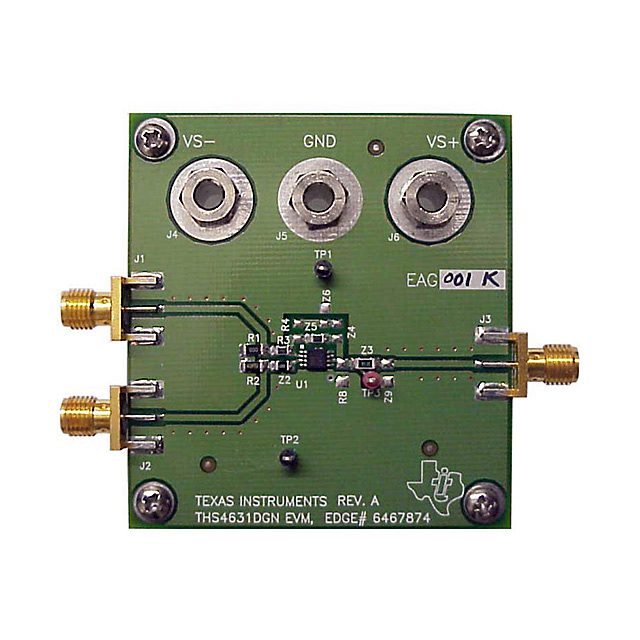

Texas Instruments THS4631DGNEVM					325 MHz						1000 V/µs						General Purpose	98 mA		Fully Populated	Single-Ended	Board(s)	-5 V 10 V	15 V 30 V	1 - Single	11.5 mA	THS4631
Texas Instruments THS4631DGNRG4	1	85 °C	-40 °C	260 µV	325 MHz	8-HVSSOP	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-MSOP 8-TSSOP Exposed Pad			210 MHz	30 V	General Purpose		0.118 in 3 mm
Texas Instruments THS4631DGNG4	1	85 °C	-40 °C	260 µV	325 MHz	8-HVSSOP	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-MSOP 8-TSSOP Exposed Pad			210 MHz	30 V	General Purpose		0.118 in 3 mm
Texas Instruments THS4631DDAEVM					325 MHz						1000 V/µs						General Purpose	98 mA		Fully Populated	Single-Ended	Board(s)	-5 V 10 V	15 V 30 V	1 - Single	11.5 mA	THS4631
Texas Instruments THS4631DGNR	1	85 °C	-40 °C	260 µV	325 MHz	8-HVSSOP	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-MSOP 8-TSSOP Exposed Pad			210 MHz	30 V	General Purpose		0.118 in 3 mm
Texas Instruments THS4631DDA	1	85 °C	-40 °C	260 µV	325 MHz	8-SO PowerPad	50 pA	11.5 mA	Surface Mount	10 V	1000 V/µs	8-PowerSOIC	3.9 mm	0.154 in	210 MHz	30 V	General Purpose	98 mA
