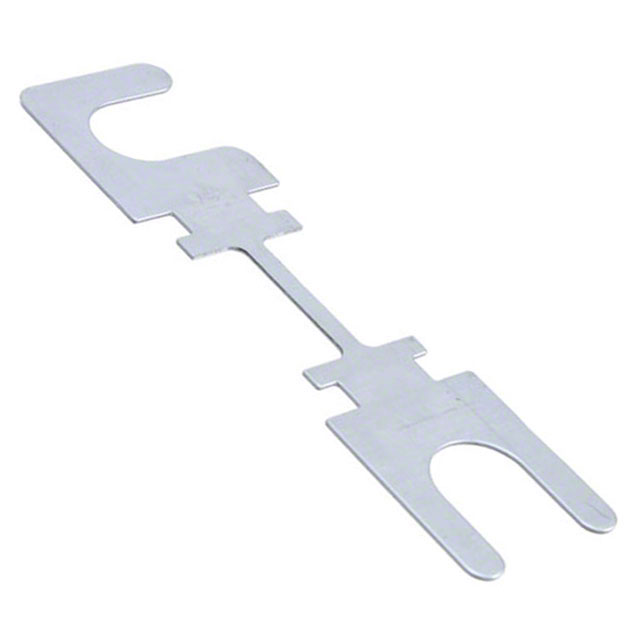

157.5700.5501 Series

Fuse - Strip 60 w/o Housing 48VDC, 50A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - Strip 60 w/o Housing 48VDC, 50A

Part	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Package / Case	Fuse Type	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Littelfuse/Commercial Vehicle Products 157.5700.5501	50 A	3.228 in	20 mm	82 mm	0.03 in	0.75 mm	0.787 in	Lift Trucks	Metal Strip	Fuse Strip	300 A	48 V	Bolt Mount	125 °C	-40 °C

Catalog

Fuse - Strip 60 w/o Housing 48VDC, 50A

Key Features

• Zinc alloy element and connectors

• 9 mm lug aperture

• Interrupting rating of 450 A at 48 V

• Complies with DIN 43560-1

Description

This 50 A special purpose automotive fuse strip provides time-delayed protection to 48 V wires in battery-powered vehicles. Fuse holders for this high-current fuse strip are sold separately.
