SBH11 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 6POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish - Mating	Fastening Type	Number of Positions	Style	Features	Contact Material	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Insulation Material	Current Rating (Amps)	Connector Type	Contact Shape	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Rows [custom]	Insulation Color	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Insulation Height	Insulation Height	Mated Stacking Heights	Contact Length - Post	Contact Length - Post	Number of Positions [custom]
Sullins Connector Solutions SBH11-PBPC-D03-RA-BK	Flash	Flash	Gold	Push-Pull	6	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Polybutylene Terephthalate (PBT)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Right Angle Through Hole	0.1 in	2.54 mm	0.126 "	3.2 mm	Shrouded - 4 Wall	0.358 "	9.1 mm
Sullins Connector Solutions SBH11-NBPC-D08-RA-BK	Flash	Flash	Gold	Push-Pull	16	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Nylon Polyamide (PA)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Right Angle Through Hole	0.1 in	2.54 mm	0.126 "	3.2 mm	Shrouded - 4 Wall	0.358 "	9.1 mm

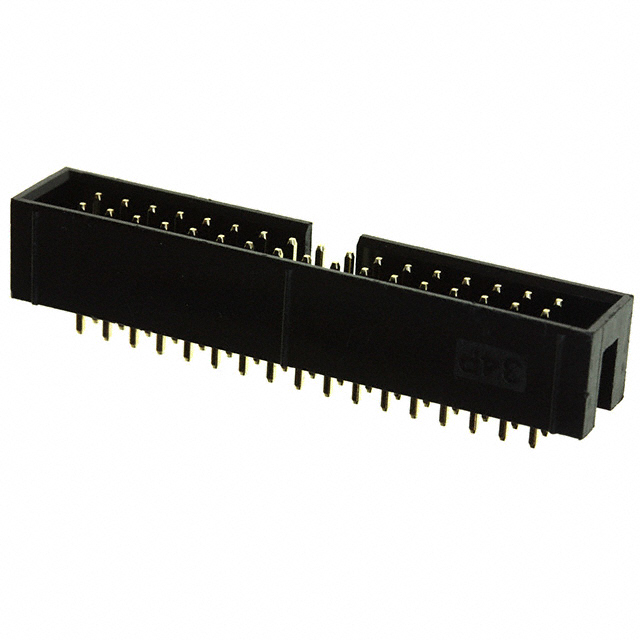

Sullins Connector Solutions SBH11-PBPC-D17-ST-BK	Flash	Flash	Gold	Push-Pull		Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Polybutylene Terephthalate (PBT)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Through Hole	0.1 in	2.54 mm			Shrouded - 4 Wall	0.358 "	9.1 mm	9.65 mm 11.2 mm 13.35 mm 18.35 mm	0.118 in	3 mm	34

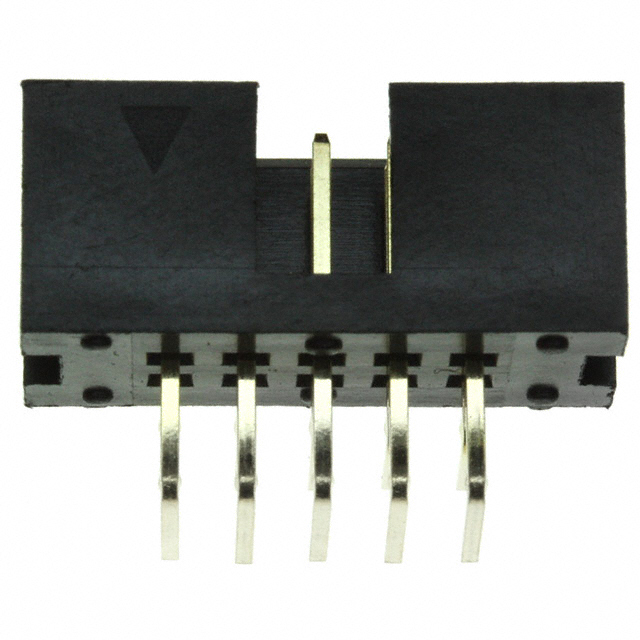

Sullins Connector Solutions SBH11-PBPC-D05-RA-BK	Flash	Flash	Gold	Push-Pull	10	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Polybutylene Terephthalate (PBT)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Right Angle Through Hole	0.1 in	2.54 mm	0.126 "	3.2 mm	Shrouded - 4 Wall	0.358 "	9.1 mm
Sullins Connector Solutions SBH11-NBPC-D07-ST-BK	Flash	Flash	Gold	Push-Pull	14	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Nylon Polyamide (PA)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Through Hole	0.1 in	2.54 mm			Shrouded - 4 Wall	0.358 "	9.1 mm	9.65 mm 11.2 mm 13.35 mm 18.35 mm	0.118 in	3 mm

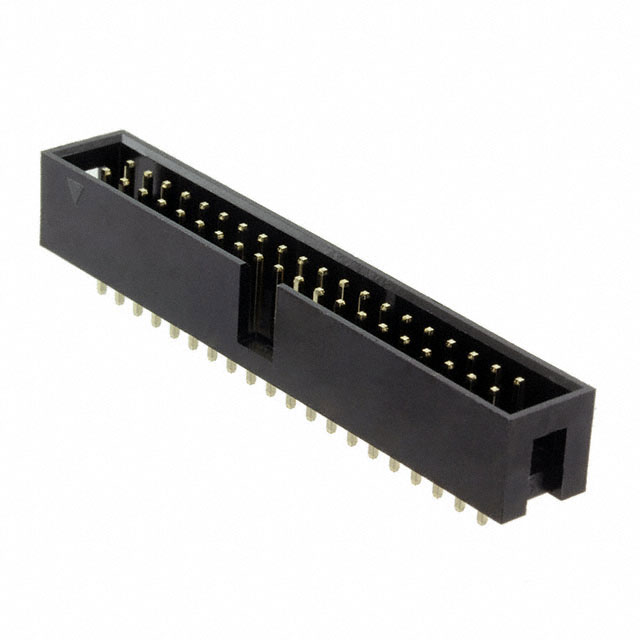

Sullins Connector Solutions SBH11-PBPC-D20-ST-BK	Flash	Flash	Gold	Push-Pull	40	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Polybutylene Terephthalate (PBT)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Through Hole	0.1 in	2.54 mm			Shrouded - 4 Wall	0.358 "	9.1 mm	9.65 mm 11.2 mm 13.35 mm 18.35 mm	0.118 in	3 mm
Sullins Connector Solutions SBH11-NBPC-D07-RA-BK	Flash	Flash	Gold	Push-Pull	14	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Nylon Polyamide (PA)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Right Angle Through Hole	0.1 in	2.54 mm	0.126 "	3.2 mm	Shrouded - 4 Wall	0.358 "	9.1 mm
Sullins Connector Solutions SBH11-NBPC-D15-SM-BK	Flash	Flash	Gold	Push-Pull	30	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Nylon Polyamide (PA)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Surface Mount	0.1 in	2.54 mm			Shrouded - 4 Wall	0.358 "	9.1 mm	11.17 mm 12.72 mm 14.87 mm 19.87 mm

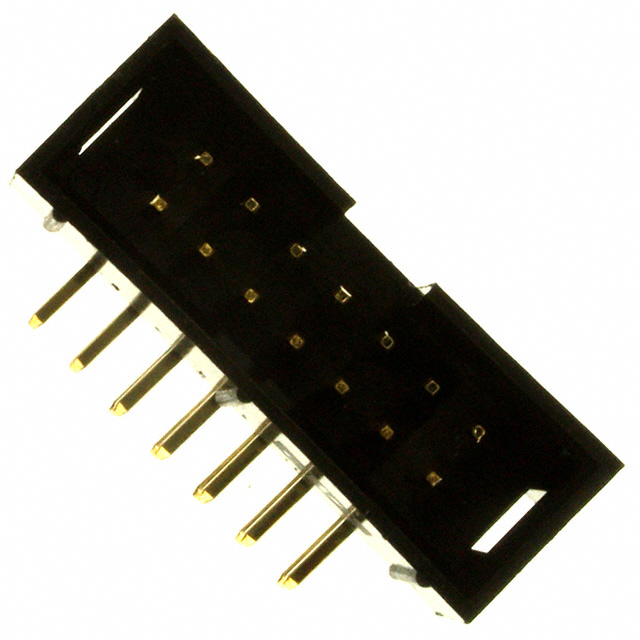

Sullins Connector Solutions SBH11-PBPC-D07-RA-BK	Flash	Flash	Gold	Push-Pull	14	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Polybutylene Terephthalate (PBT)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Right Angle Through Hole	0.1 in	2.54 mm	0.126 "	3.2 mm	Shrouded - 4 Wall	0.358 "	9.1 mm
Sullins Connector Solutions SBH11-NBPC-D03-RA-BK	Flash	Flash	Gold	Push-Pull	6	Board to Board Cable	Keying Slot	Brass	Gold	All	-40 C	105 ░C	Male Pin	Solder	Nylon Polyamide (PA)	3 A	Header	Square	0.1 "	2.54 mm	UL94 V-0	2	Black	Right Angle Through Hole	0.1 in	2.54 mm	0.126 "	3.2 mm	Shrouded - 4 Wall	0.358 "	9.1 mm
