C3DES-2 Series

Catalog

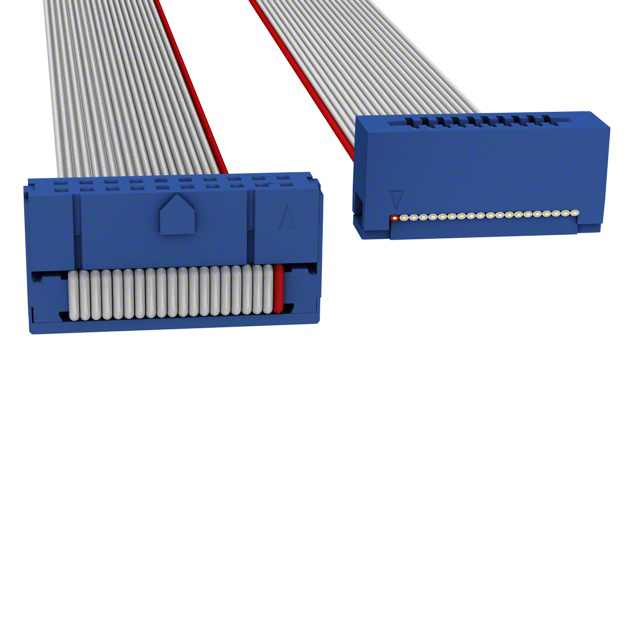

IDC CABLE - CKR20S/AE20M/CCE20S

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Pitch - Connector	Pitch - Connector	Features	Number of Rows [custom]	Length	Length	Color	Number of Positions	Connector Type	Contact Finish	Usage	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Length
CW Industries C3DES-2036M	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2	91.44 cm	3 ft	Multiple Ribbon	20	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm
CW Industries C3DES-2036G	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2	91.44 cm	3 ft		20	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm
CW Industries C3DES-2618M	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2			Multiple Ribbon	26	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm	457.2 mm	1.5 ft
CW Industries C3DES-2018G	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2				20	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm	457.2 mm	1.5 ft
CW Industries C3DES-2606M	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2	152.4 mm	0.5 '	Multiple Ribbon	26	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm			6 "
CW Industries C3DES-2636G	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2	91.44 cm	3 ft		26	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm
CW Industries C3DES-2018M	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2			Multiple Ribbon	20	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm	457.2 mm	1.5 ft
CW Industries C3DES-2006G	Unshielded	2.54 µm	100 µin	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	2	152.4 mm	0.5 '		20	Socket to Card Edge	Tin	Board In	0.05 in	1.27 mm			6 "
