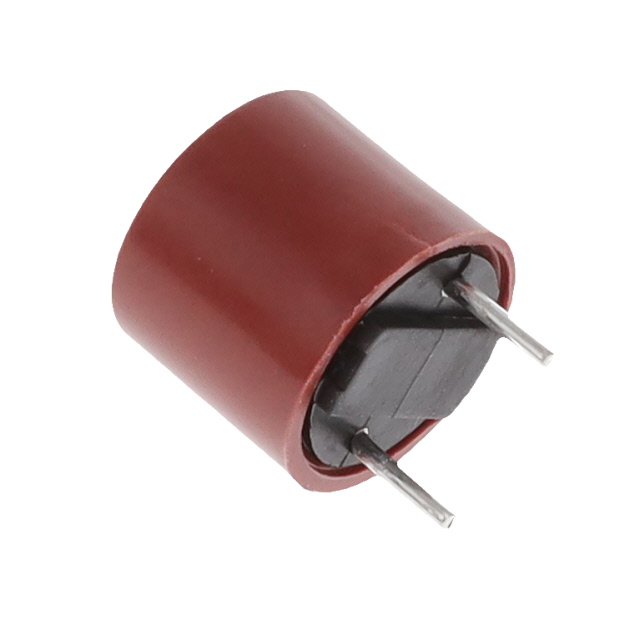

37205000511 Series

FUSE 250V IEC TL TR5 SL SPECIAL .500A

Catalog

FUSE 250V IEC TL TR5 SL SPECIAL .500A

Part	Package / Case	DC Cold Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Approval Agency	Current Rating (Amps)	Voltage Rating - AC	Fuse Type	Mounting Type	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Melting I²t	Response Time
Littelfuse/Commercial Vehicle Products 37205000511	Can Radial Vertical	0.155 Ohms	85 °C	-40 °C	35 A	CCC cURus SEMKO VDE	0.5 A	250 V	Board Mount	Through Hole	0.335 "	8 mm	8.5 mm	0.315 "	2	Slow Blow

FUSE 250V IEC TL TR5 SL SPECIAL .500A

• Lead-free

• Reduced PCB space requirements

• Direct solderable or plug-in versions

• Internationally approved

• Low internal resistance

• Shocksafe casing

• Halogen free
