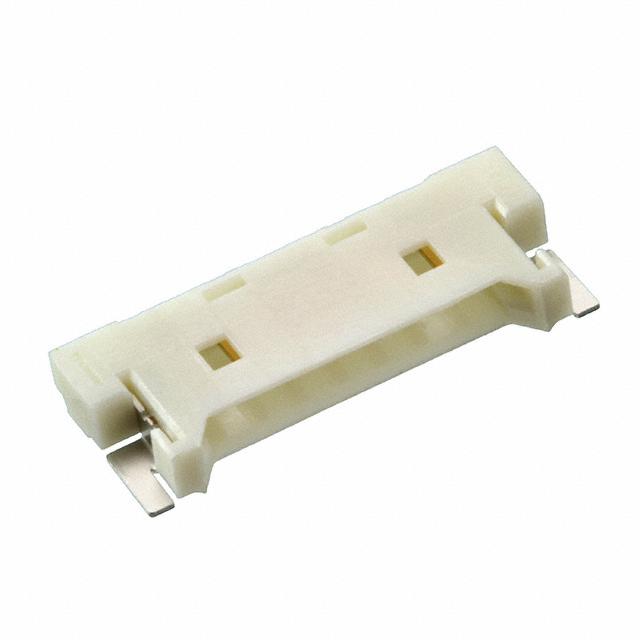

053780 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD R/A 3POS 1.25MM

Part	Style	Fastening Type	Insulation Color	Contact Type	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Material	Number of Rows	Mounting Type	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Applications	Features	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions
Molex 0537800390	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All

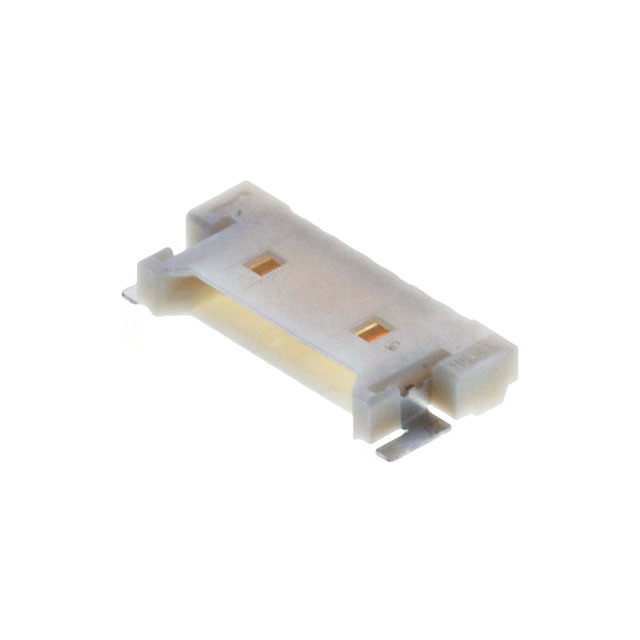

Molex 0537800670	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All	125 VDC	85 °C	-40 °C	Varies by Wire Gauge	6
Molex 0537800470	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All	125 VDC	85 °C	-40 °C	Varies by Wire Gauge	4
Molex 0537800690	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All					6
Molex 0537800770	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All	125 VDC	85 °C	-40 °C	Varies by Wire Gauge	7
Molex 0537801870	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All	125 VDC	85 °C	-40 °C	Varies by Wire Gauge	18

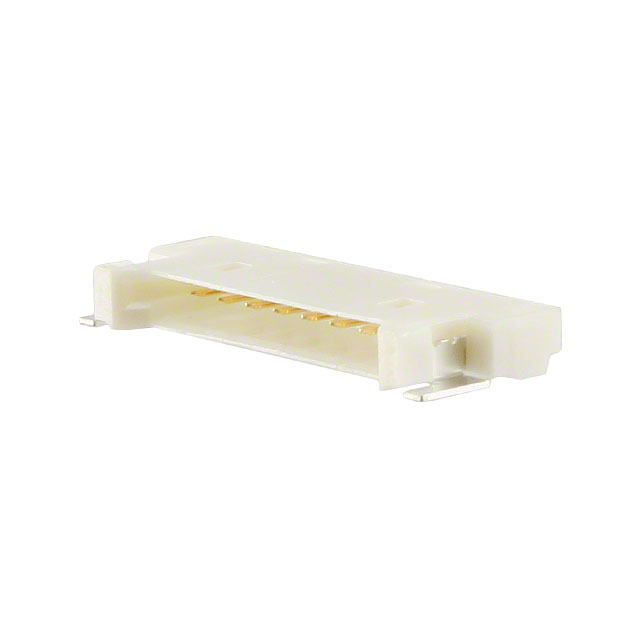

Molex 0537800870	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All	125 VDC	85 °C	-40 °C	Varies by Wire Gauge	8
Molex 0537800570	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All	125 VDC	85 °C	-40 °C	Varies by Wire Gauge

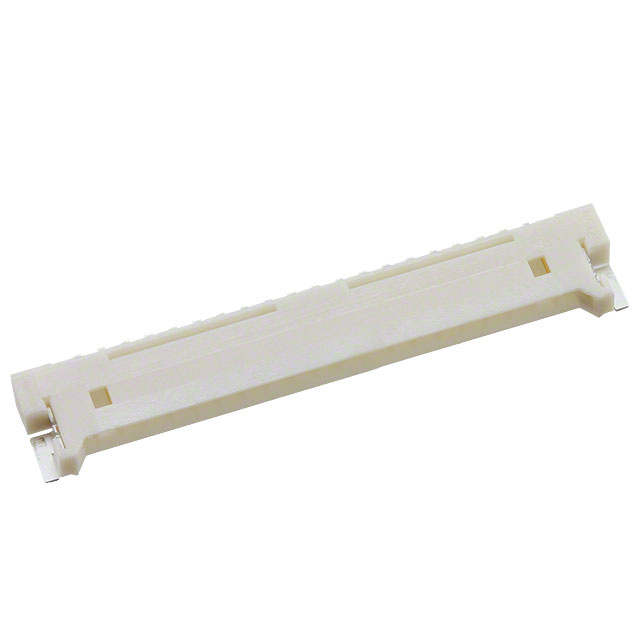

Molex 0537802070	Board to Cable/Wire	Detent Lock	Natural	Male Pin	Tin	Solder	1.25 mm	0.049 in	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 µm	118.1 µin	Polyphenylene Sulfide (PPS)	Phosphor Bronze	1	Surface Mount Right Angle	Header	UL94 V-0	0.073 in	1.85 mm	Automotive General Purpose Medical Telecommunications	Solder Retention	Square	Gold	All	125 VDC	85 °C	-40 °C	Varies by Wire Gauge	20
