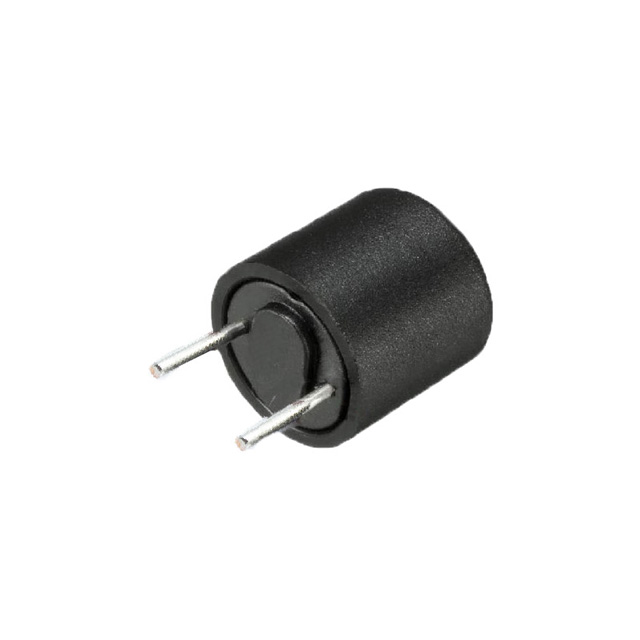

TMS Series

Manufacturer: OptiFuse

Catalog

FUSE BRD MNT 800MA 250VAC RADIAL

Part	Melting I˛t	Voltage Rating - AC	Package / Case	Size / Dimension [z]	Size / Dimension [diameter]	Mounting Type	Approval Agency	Melting I²t	Current Rating (Amps)	Fuse Type	Breaking Capacity @ Rated Voltage	Response Time
OptiFuse TMS-800MA	0.98	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	0.98 I²t	800 mA	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-125MA	0.044	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	0.044	0.125 Amps	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-6.3A	100	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	100	6.3 A	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-315MA	0.26 I˛t	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248		0.315 A	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-100MA	0.025	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248		100 mA	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-63MA	0.009	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	0.009	63 mA	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-50MA	0.0056	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	0.0056	50 mA	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-3.15A	22	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	22	3.15 A	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-1A	2.8	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	2.8 I²t	1 A	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
OptiFuse TMS-2.5A	14	250 V	Can Radial Vertical	0.327 " 8.3 mm	0.335 " 8.5 mm	Through Hole	cULus UL 248	14	2.5 A	Board Mount (Cartridge Style Excluded)	50 A	Slow Blow
