2TL1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE DPDT 15A 125V

Part	Actuator Material	Voltage Rating - AC	Circuit	Actuator Length [x]	Ingress Protection	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Mounting Type	Bushing Thread	Voltage Rating - DC

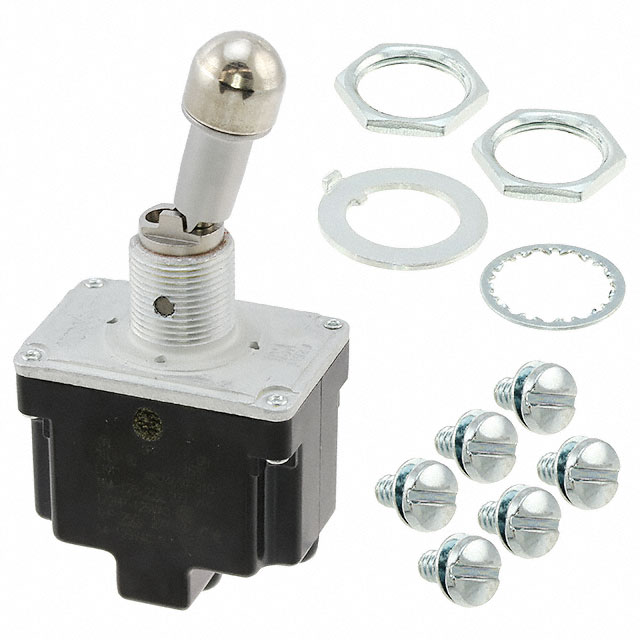

Honeywell Sensing and Productivity Solutions 2TL1-1D	Nickel Plated	125 V	DPDT	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	15 A	Locking Lever	Screw Terminal	12.4 mm	On-Off-On	Panel Mount	15/32-32

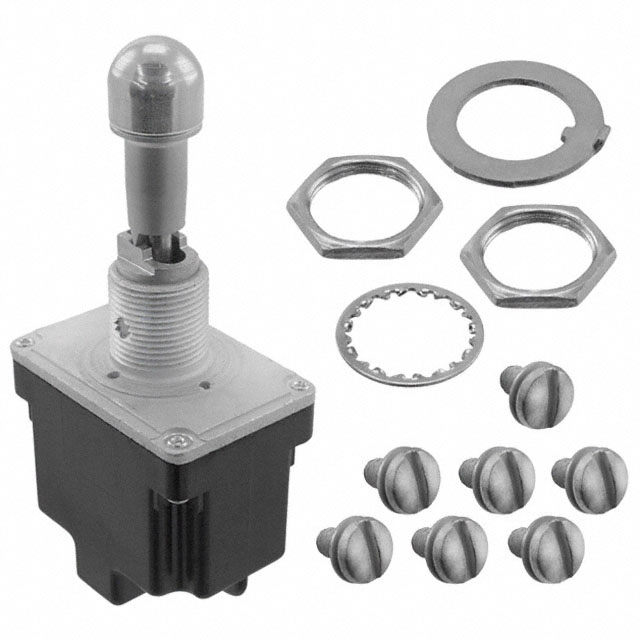

Honeywell Sensing and Productivity Solutions 2TL1-5F	Nickel Plated	125 V	DPDT	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	10 A	Locking Lever	Screw Terminal	12.4 mm	On-Off-Mom	Panel Mount	15/32-32
Honeywell Sensing and Productivity Solutions 2TL1-56E	Nickel Plated	125 V	DPDT	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	10 A	Locking Lever	Screw Terminal	12.4 mm	On-On-Mom	Panel Mount	15/32-32

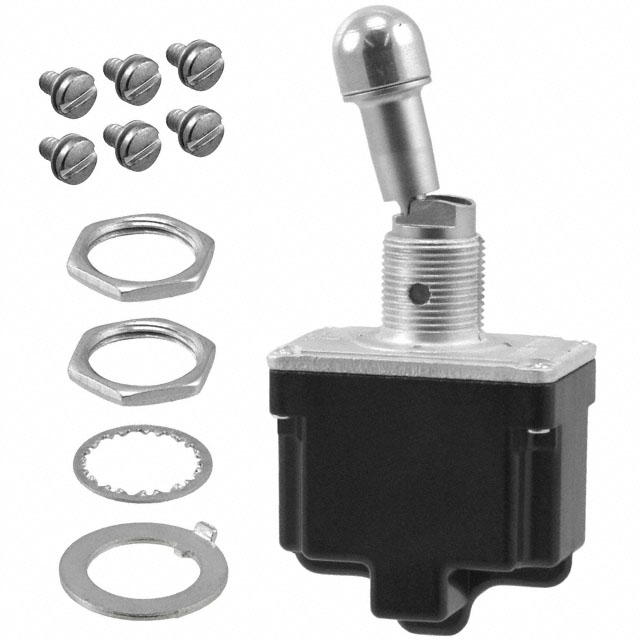

Honeywell Sensing and Productivity Solutions 2TL1-2F	Nickel Plated	125 V	DPST	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	15 A	Locking Lever	Screw Terminal	12.4 mm	On-Off	Panel Mount	15/32-32

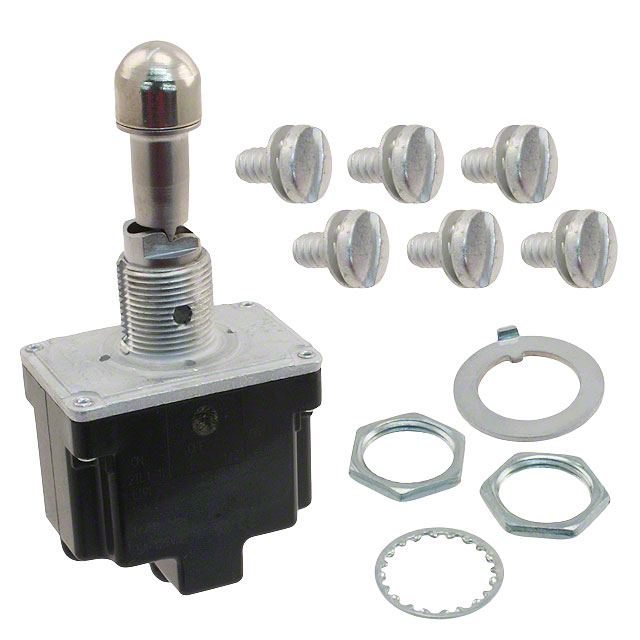

Honeywell Sensing and Productivity Solutions 2TL1-1L	Nickel Plated	125 V	DPDT	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	15 A	Locking Lever	Screw Terminal	12.4 mm	On-Off-On	Panel Mount	15/32-32
Honeywell Sensing and Productivity Solutions 2TL11-50	Nickel Plated	125 V	DPDT	17.27 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	11 A 18 A	Standard Round	Screw Terminal	12.4 mm	On-On-Mom	Panel Mount	15/32-32	28 V
Honeywell Sensing and Productivity Solutions 2TL1-8	Nickel Plated	125 V	DPDT	17.27 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	10 A	Standard Round	Screw Terminal	12.4 mm	On-Mom	Panel Mount	15/32-32

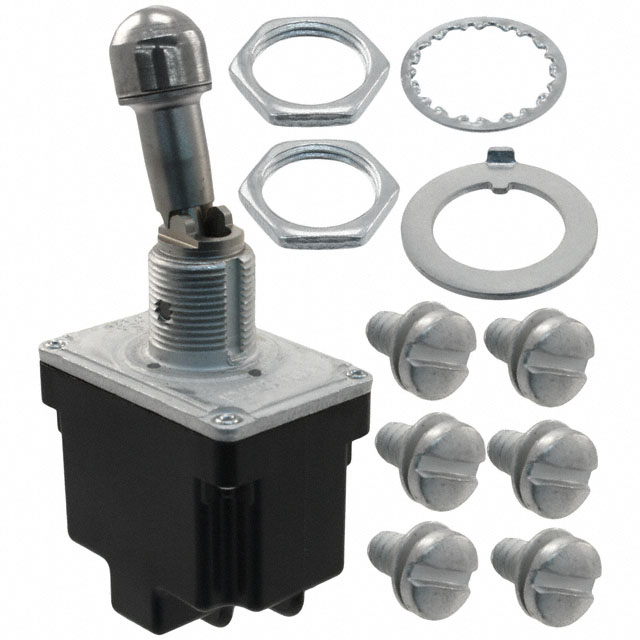

Honeywell Sensing and Productivity Solutions 2TL1-2D	Nickel Plated	125 V	DPST	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	15 A	Locking Lever	Screw Terminal	12.4 mm	On-Off	Panel Mount	15/32-32
Honeywell Sensing and Productivity Solutions 2TL1-1P	Nickel Plated	125 V	DPDT	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	15 A	Locking Lever	Screw Terminal	12.4 mm	On-Off-On	Panel Mount	15/32-32
Honeywell Sensing and Productivity Solutions 2TL1-12N	Nickel Plated	125 V	DPDT	26.67 mm	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	15 A	Locking Lever	Screw Terminal	12.4 mm	On-On-On	Panel Mount	15/32-32
